PCT 4818B - Ferris ProCut 48" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton (SN: 0212 & Above) Instrument & Control Panel Group (S/N: 212-362) Parts Diagram

ProCut 48" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton

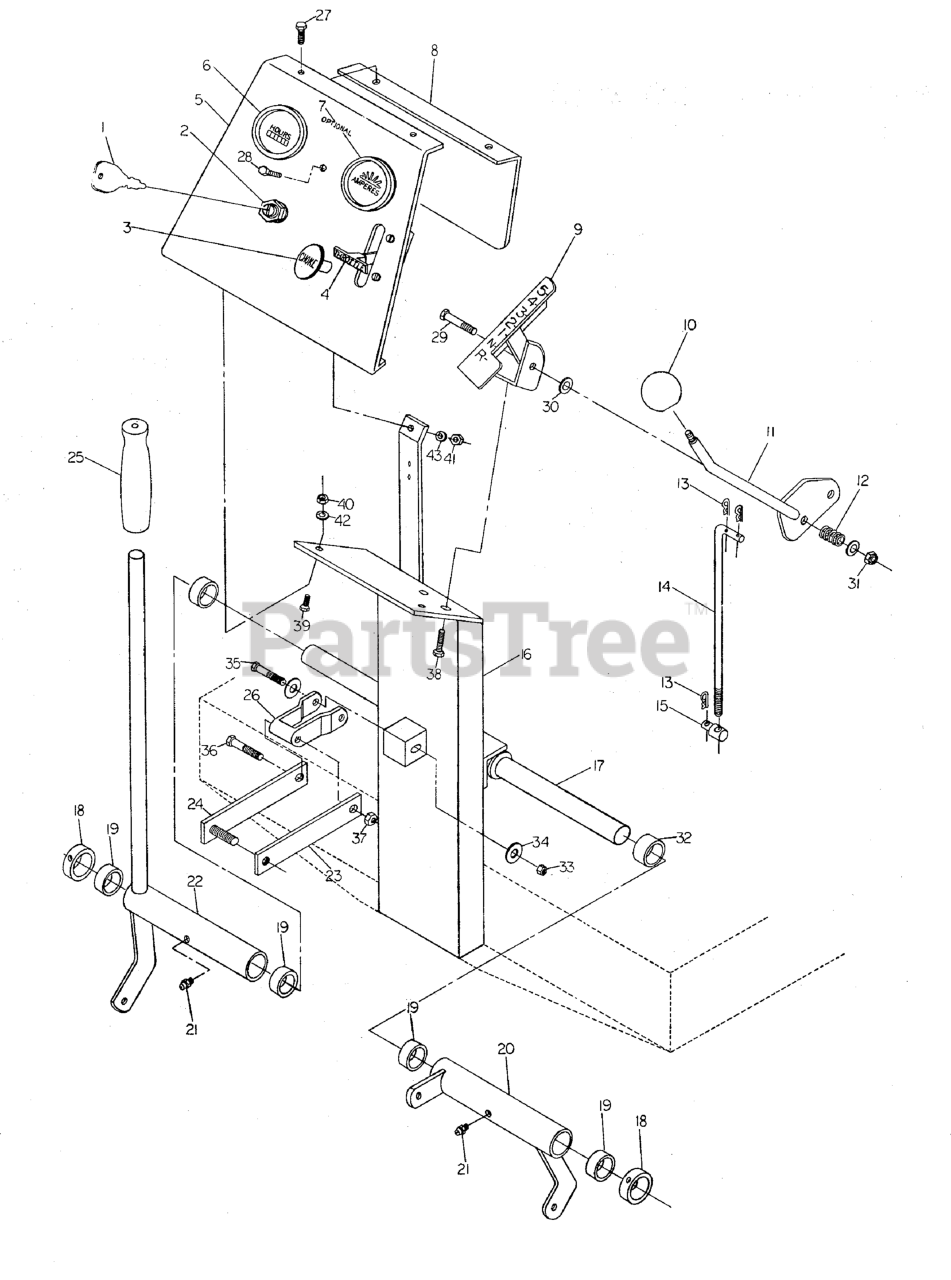

Instrument & Control Panel Group (S/N: 212-362) Parts Diagram

  • Title

1

Ferris 5020878

Ignition Key
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 12

0

2

Ferris 5020836

SWITCH, Ignition

$54.99

$

Usually ships in 2-12 days

0

3

Ferris 5021675

CABLE, CHOKE CONTROL, 45

$63.99

$

In Stock, only 1 left!

0

4

Ferris 5020811

CABLE, Throttle, 38"
(Superseded to 5020811SM)

$49.99

$

Usually ships in 2-12 days

0

5

Ferris 41487

Control Panel
(Superseded to 7075346YP)

$42.99

$

In Stock, only 1 left!

0

6

Ferris 5020060

HOUR METER

$250.99

$

Usually ships in 2-12 days

0

7

Ferris 5020799

Ammeter

Note: (Optional)

$

$

Currently unavailable

8

Ferris 5041488B

Control Panel Cover

$

$

Currently unavailable

9

Ferris 5041489

Shifter Guide Weldment

$

$

Currently unavailable

10

Ferris 5010551

Black Knob

$

$

Currently unavailable

11

Ferris 5041492

Shifter Handle Weldment

$

$

Currently unavailable

12

Ferris 5020808

SPRING, Compression

$

$

Currently unavailable

13

Ferris 5025210

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

14

Ferris 5041495

Shifter Adjustment Rod

$

$

Currently unavailable

15

Ferris 5041482

Linkage Adjuster

$28.99

$

Usually ships in 2-12 days

0

16

Ferris 41496

Upright Support Weldment

$

$

Currently unavailable

17

Ferris 50501-15

3/4" Diameter Shaft 21" Long

$

$

Currently unavailable

18

Ferris 5010116

COLLAR, 3/4" Set
(Superseded to 5010116FS)

$5.49

$

Usually ships in 2-12 days

0

19

Ferris 5020875

BUSHING
(Superseded to 5020875PSM)

$17.99

$

Usually ships in 2-12 days

0

20

Ferris 41501

Transmission Bell Crank Weldment

$

$

Currently unavailable

21

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 41506

Blade Engage Weldment
(Superseded to 7041506YP)

$96.99

$

Usually ships in 2-12 days

0

23

Ferris 5041510

Actuator Linkage Arm

$

$

Currently unavailable

24

Ferris 5041511

Actuator Linkage Arm

$

$

Currently unavailable

25

Ferris 20838

Handle Grip

$

$

Currently unavailable

26

Ferris 5041767

Coupler Link

$

$

Currently unavailable

27

1/4-20 x 5/8 Hex Head Cap Screw GD5

Note: (Obtain Locally)

$

$

Not available

28

5/16-18 x 1 Hex Head Cap Screw

Note: (Obtain Locally)

$

$

Not available

29

3/8-16 x 2 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

30

3/8 Flat Washer

Note: (Obtain Locally)

$

$

Not available

31

3/8-16 Lock Nut

Note: (Obtain Locally)

$

$

Not available

32

Ferris 5020875

BUSHING
(Superseded to 5020875PSM)

$17.99

$

Usually ships in 2-12 days

0

33

3/8-16 Lock Nut

Note: (Obtain Locally)

$

$

Not available

34

3/8 Flat Washer

Note: (Obtain Locally)

$

$

Not available

35

5/16-18 x 2-1/4 GD 8 Bolt

Note: (Obtain Locally)

$

$

Not available

36

5/16-18 x 2-1/4 GD 8 Bolt

Note: (Obtain Locally)

$

$

Not available

37

5.16-18 Lock Nut

Note: (Obtain Locally)

$

$

Not available

38

1/4-20 x 1 Hex Head Cap Screw

Note: (Obtain Locally)

$

$

Not available

39

1/4-20 x 3/4 Hex Head Cap Screw

Note: (Obtain Locally)

$

$

Not available

40

1/4-20 Nut

Note: (Obtain Locally)

$

$

Not available

41

5/16 Serrated Flange Nut

Note: (Obtain Locally)

$

$

Not available

42

1/4-20 Lock Washer

Note: (Obtain Locally)

$

$

Not available

43

5/16 Lock Washer

Note: (Obtain Locally)

$

$

Not available
