PCT 4818B - Ferris ProCut 48" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton (SN: 0212 & Above) Main Frame Group (S/N: 212-362) Parts Diagram

ProCut 48" Front Mount Mower, Gear Drive, 18hp Briggs & Stratton

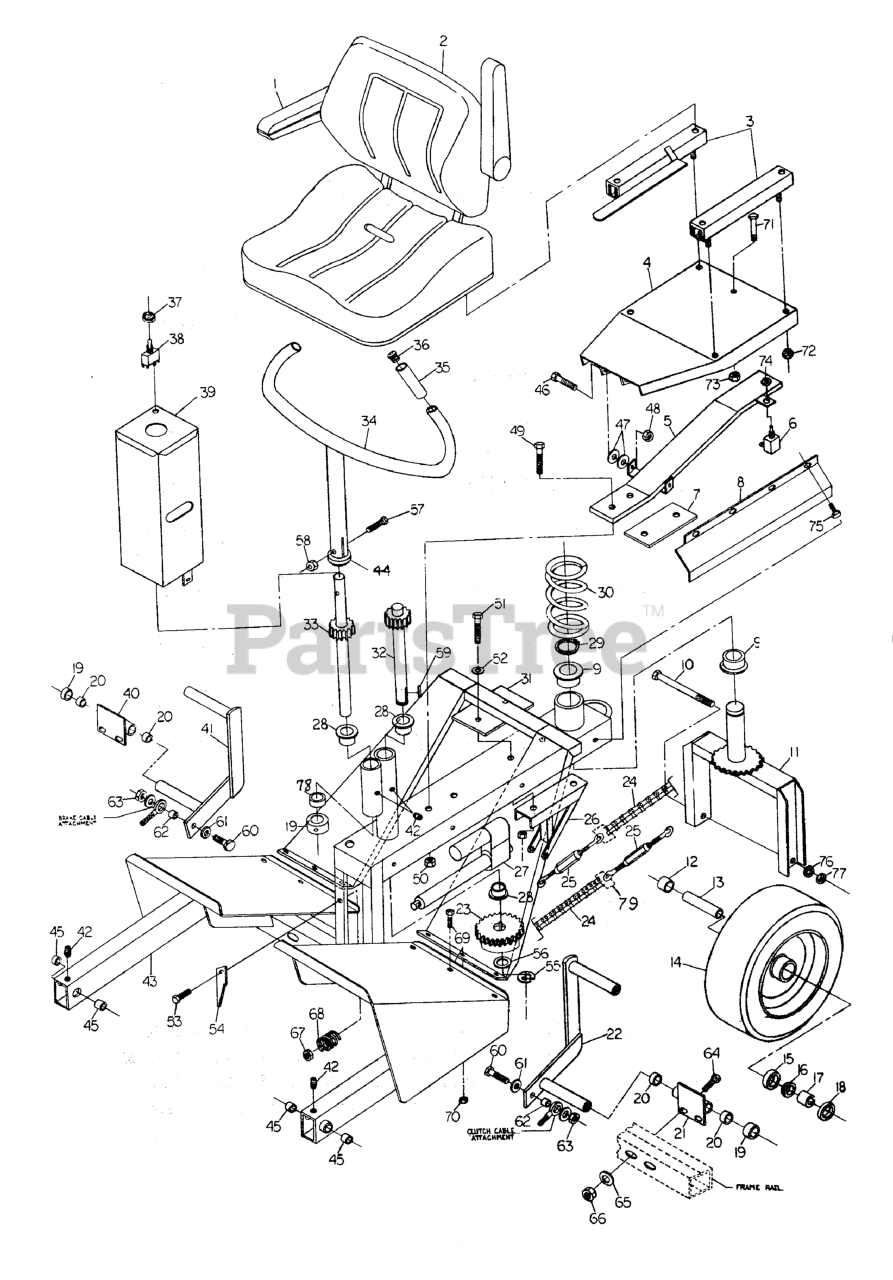

Main Frame Group (S/N: 212-362) Parts Diagram

  • Title

1

Ferris 5020784X2

Arm Rest (Left/Right Interchangeable)

$

$

Currently unavailable

2

Ferris 20784-1

Seat

$

$

Currently unavailable

3

Ferris 5020784X3

SEAT ADJUSTER RAILS (Set)

$

$

Currently unavailable

4

Ferris 5041513

Seat Mounting Plate Weldment

$

$

Currently unavailable

5

Ferris 41518

Seat Spring Weldment

$

$

Currently unavailable

6

Ferris 5020882

Seat Switch

$

$

Currently unavailable

7

Ferris 5041522B

SUPPORT, Seat Plate

$25.99

$

Usually ships in 2-12 days

0

8

Ferris 5041523

Chain Guard Left

$

$

Currently unavailable

8

Ferris 41524

Chain Guard Right

Note: (Not Shown)

$

$

Currently unavailable

9

Ferris 5020822

BUSHING, Flange
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

10

Ferris 5025019X76

BOLT, 5/8-11 x 9-1/2
(Superseded to 5025019X76SM)

$15.99

$

Usually ships in 2-12 days

0

11

Ferris 5041525

Steering Wheel Mount Weldment

$

$

Currently unavailable

12

Ferris 5041530

SPACER, 1.00 x 1.25 x 1.53

$

$

Currently unavailable

13

Ferris 5041475

Steering Wheel Sleeve

$40.99

$

Usually ships in 2-12 days

0

14

Ferris 5020786

Steering Tire Assembly

$

$

Currently unavailable

14

Ferris 20787

Tire Only

$

$

Currently unavailable

14

Ferris 20788

Rim Only

$

$

Currently unavailable

15

Ferris 5020883

BEARING CUP

$8.99

$

Usually ships in 2-12 days

0

16

Ferris 5020884

BEARING, Tapered Roller
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 6

0

17

Ferris 5041531

Steering Tire Spacer

$

$

Currently unavailable

18

Ferris 5020885

GREASE SEAL
(Superseded to 5021072SM)

$7.49

$

Usually ships in 2-12 days

0

19

Ferris 5010116

COLLAR, 3/4" Set
(Superseded to 5010116FS)

$5.49

$

Usually ships in 2-12 days

0

20

Ferris 5020875

BUSHING
(Superseded to 5020875PSM)

$17.99

$

Usually ships in 2-12 days

0

21

Ferris 5041532

Clutch Pedal Bracket Weldment

$

$

Currently unavailable

22

Ferris 5041535

Clutch Pedal Weldment

$

$

Currently unavailable

23

Ferris 5020821

40B 24 x 3/4 Sprocket

$

$

Currently unavailable

24

Ferris 5010673X43

CHAIN, #40 Roller, 43 Links
(Superseded to 5010673X43FS)

$10.99

$

In Stock, only 2 left!

0

25

Ferris 20803

Turnbuckle

$

$

Currently unavailable

26

Ferris 5041538

Actuator Mount Weldment

$

$

Currently unavailable

27

Ferris 5020844

Electric Actuator

$980.99

$

Usually ships in 2-12 days

0

28

Ferris 5020823

BUSHING, Flange
(Superseded to 5020823SM)

$10.99

$

In Stock, Qty 6

0

29

Ferris 5020864

SNAP RING, External

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 20881

Compression Seat Spring

$

$

Currently unavailable

31

Ferris 5041541

Actuator Mount Support
(Superseded to 5041541FS)

$13.99

$

Usually ships in 2-12 days

0

32

Ferris 5041542B

Steering Shaft Weldment

$

$

Currently unavailable

33

Ferris 5041544B

Steering Handle Shaft Weldment

$

$

Currently unavailable

34

Ferris 41546

Steering Handle Weldment

$

$

Currently unavailable

35

Ferris 5020837

GRIP, Foam
(Superseded to 5020837SM)

$12.99

$

Usually ships in 2-12 days

0

36

Ferris 5020809

End Plug

$

$

Currently unavailable

37

Ferris 5020831

Toggle Boot

$24.99

$

Usually ships in 2-12 days

0

38

Ferris 5020830

Toggle Switch

$59.99

$

Usually ships in 2-12 days

0

39

Ferris 5041549

Steering Gear Guard

$

$

Currently unavailable

40

Ferris 5041554

Brake Pedal Bracket

$

$

Currently unavailable

41

Ferris 5041555B

Brake Pedal Weldment

$

$

Currently unavailable

42

Ferris 5020095

GREASE FITTING
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

43

Ferris 30294

Rider Frame Weldment

$

$

Currently unavailable

44

Ferris 5020602

COLLAR, 1" Split
(Superseded to 5020602SM)

$22.99

$

In Stock, only 1 left!

0

45

Ferris 5020874

BUSHING
(Superseded to 5020874FS)

$9.49

$

Usually ships in 2-12 days

0

46

3/8-24 x 1-1/2 GD 8 Bolt

Note: (Obtain Locally)

$

$

Not available

47

3/8 Flat Washer

Note: (Obtain Locally)

$

$

Not available

48

3/8-24 Lock Nut

Note: (Obtain Locally)

$

$

Not available

49

3/8-16 x 3-1/2 Bolt

Note: (Obtain Locally)

$

$

Not available

50

3/8 Serrated Flange Nut

Note: (Obtain Locally)

$

$

Not available

51

3/8-16 x 3-1/2 Bolt

Note: (Obtain Locally)

$

$

Not available

52

3/8 Flat Washer

Note: (Obtain Locally)

$

$

Not available

53

5/8-18 x 2 Bolt

Note: (Obtain Locally)

$

$

Not available

54

Ferris 5041556

Brake Lever

$

$

Currently unavailable

55

Ferris 5020863

C-CLIP
(Superseded to 5020863SM)

$3.49

$

Usually ships in 2-12 days

0

56

3/4 Washer

Note: (Obtain Locally)

$

$

Not available

57

3/8-16 x 1-1/2 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

58

3/8 Lock Nut

Note: (Obtain Locally)

$

$

Not available

59

Ferris 5050403X9

KEY, 3/16 SQ. X 7/8

$91.99

$

Usually ships in 2-12 days

0

60

1/4-20 x 1-1/2 GD 8 Bolt

Note: (Obtain Locally)

$

$

Not available

61

1/4 Flat Washer

Note: (Obtain Locally)

$

$

Not available

62

Ferris 5041752

SPACER, .26 X .38 X .50

$4.99

$

Usually ships in 2-12 days

0

63

1/4 Lock Nut

Note: (Obtain Locally)

$

$

Not available

64

5/16-18 x 2-1/2 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

65

5/16 Flat Washer

Note: (Obtain Locally)

$

$

Not available

66

5/16-18 Serrated Flange Nut

Note: (Obtain Locally)

$

$

Not available

67

5/16 Lock Nut

Note: (Obtain Locally)

$

$

Not available

68

Ferris 5020808

SPRING, Compression

$

$

Currently unavailable

69

5/16-18 x 1 GD 5 Hex Head Cap Screw

Note: (Obtain Locally)

$

$

Not available

70

5/16 Serrated Flange Nut

Note: (Obtain Locally)

$

$

Not available

71

5/16-18 x 6 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

72

5/16 Serrated Flange Nut

Note: (Obtain Locally)

$

$

Not available

73

5/16 Lock Nut

Note: (Obtain Locally)

$

$

Not available

74

7/16-20 Nut

Note: (Obtain Locally)

$

$

Not available

75

1/4-20 x 5/8 GD 5 Bolt

Note: (Obtain Locally)

$

$

Not available

76

5/8 Lock Washer

Note: (Obtain Locally)

$

$

Not available

77

5/8 Lock Nut

Note: (Obtain Locally)

$

$

Not available

78

Ferris 5020043

BUSHING, Brass

$

$

Currently unavailable

79

Ferris 5010674

CONNECTOR, #40 Chain Link
(Superseded to 5010674SM)

$3.99

$

Usually ships in 2-12 days

0
