PE-200 - Echo Edger (SN: 07001001 - 07999999) Handle, Throttle, Drive Shaft, Blade Shield Parts Diagram

Edger

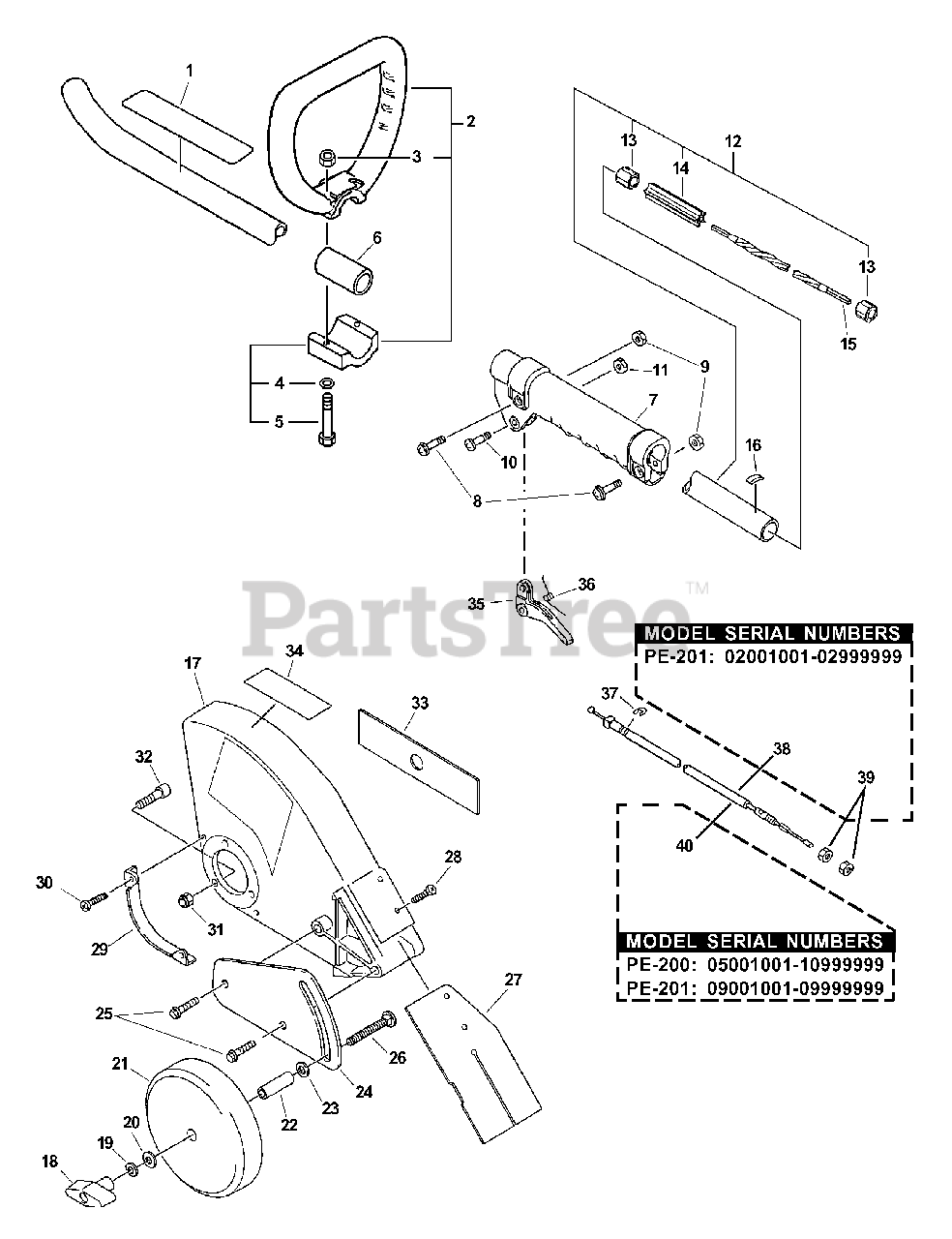

Handle, Throttle, Drive Shaft, Blade Shield Parts Diagram

  • Title

1

Echo 89016025560

LABEL - CAUTION

$7.99

$

In Stock, only 1 left!

0

2

Echo 35120108930

LOOP HANDLE ASSY

Note: INCLUDES ITEMS 3-5

$37.99

$

Usually ships in 2-4 days

0

3

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 90022005040

SCREW - 5X40

$0.99

$

In Stock, Qty 14

0

6

Echo 35133008930

COLLAR

$3.49

$

In Stock, only 2 left!

0

7

Echo 35121344330

GRIP, HANDLE

$13.99

$

Usually ships in 2-4 days

0

8

Echo 90024005025

SCREW - 5X25
(Superseded to 90024205025)

$0.99

$

In Stock, Qty 20+

0

9

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 18

0

11

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

12

Echo 61020647730

MAIN PIPE ASSY

Note: Includes ITEMS 13-14

$42.99

$

Usually ships in 2-4 days

0

13

Echo 61024655330

BUSHING

$4.49

$

In Stock, Qty 10

0

14

Echo 61021755330

LINER - FLEXIBLE

$23.99

$

In Stock, only 3 left!

0

15

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$16.99

$

In Stock, Qty 20+

0

16

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

17

Echo 69901052830

SHIELD, DEBRIS

$20.99

$

Usually ships in 2-4 days

0

18

Echo 17811355330

WINGNUT - 5/16-18
(Superseded to V299000670)

$3.49

$

In Stock, Qty 20+

0

19

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

20

Echo 90060200008

WASHER - 8

$0.99

$

In Stock, Qty 20+

0

21

Echo C730000030

WHEEL - 6X1.5
(Superseded to C730000120)

$10.99

$

In Stock, Qty 7

0

22

Echo 30242452630

COLLAR - 12

$3.49

$

In Stock, Qty 20+

0

23

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

24

Echo 30202955332

BRACKET, WHEEL

$7.99

$

In Stock, Qty 11

0

25

Echo 90008000100

BOLT - 8

$1.49

$

In Stock, Qty 5

0

26

Echo 61025055330

BOLT - CARRIAGE

$1.99

$

In Stock, Qty 20+

0

27

Echo 69901755330

FLAP, DEBRIS

$12.99

$

In Stock, Qty 5

0

28

Echo 90008000200

SCREW - 3

$0.99

$

Usually ships in 2-4 days

0

29

Echo 69902552630

GUARD

$3.49

$

In Stock, Qty 14

0

30

Echo 90008000300

SCREW - 4X16

$0.99

$

In Stock, Qty 6

0

31

Echo 90056250005

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

32

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

33

Echo 69601552632

BLADE, EDGER

$9.49

$

In Stock, only 2 left!

0

34

Echo 89016052631

LABEL - CAUTION -- SPANISH

$6.49

$

Usually ships in 2-4 days

0

35

Echo C450000070

TRIGGER, THROTTLE

$1.49

$

In Stock, Qty 20+

0

36

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

37

Echo 90070000005

RING, RETAINING - 5

$0.99

$

In Stock, Qty 15

0

38

Echo 17800144430

CABLE, THROTTLE

Note: MODEL PE-201 SERIAL NUMBERS: 02001001-02999999

$10.99

$

In Stock, Qty 12

0

39

Echo 90050200006

NUT - 6

Note: MODEL PE-201 SERIAL NUMBERS: 02001001-02999999

$0.99

$

In Stock, only 3 left!

0

40

Echo V430000671

CABLE, THROTTLE

Note: MODELS PE-200 & 201 SERIAL NUMBERS: 05001001-10999999

$10.99

$

In Stock, Qty 16

0
