PE-200 - Echo Edger (SN: 09001001 - 09999999) Gear Case, Tools Parts Diagram

Edger

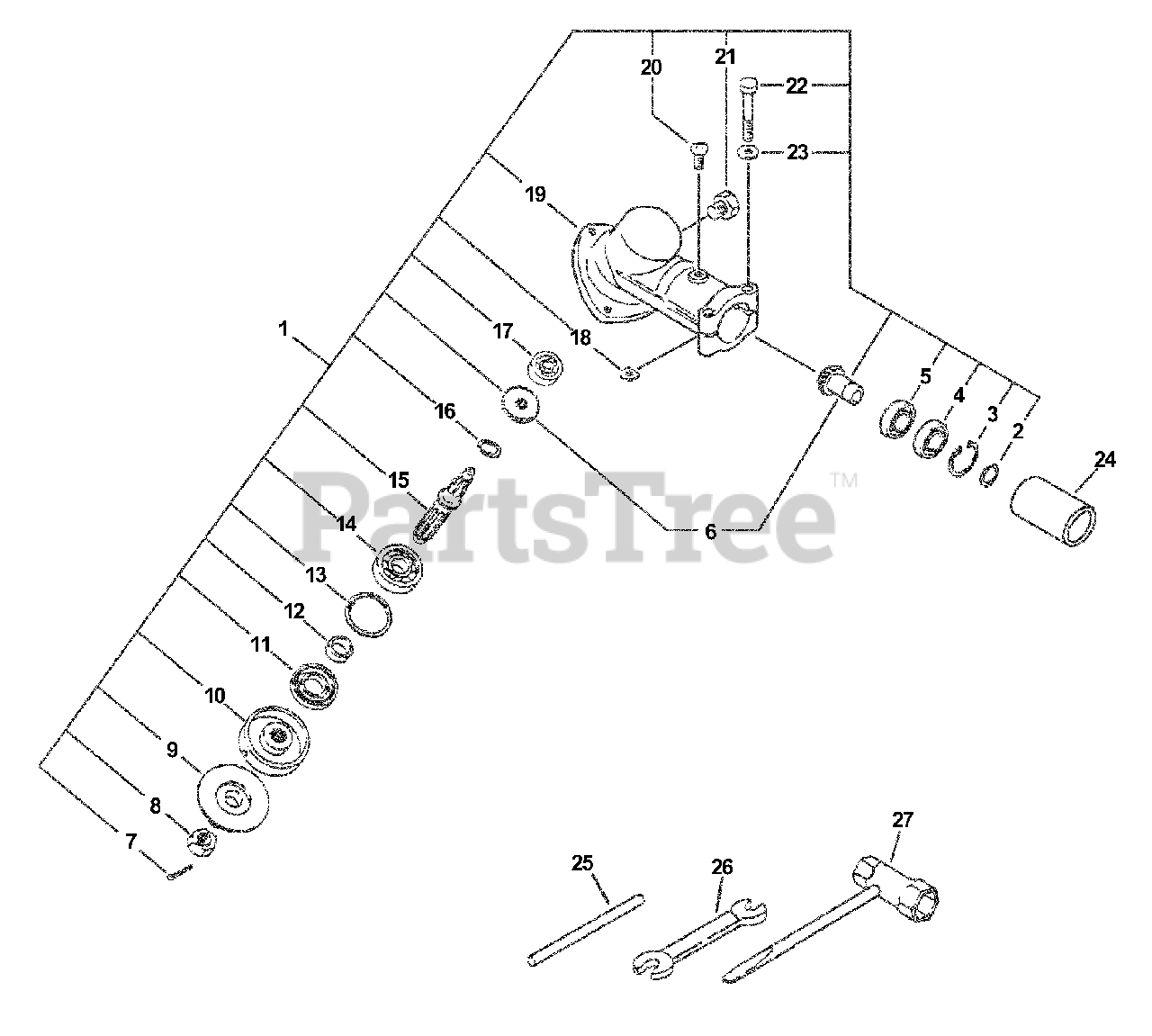

Gear Case, Tools Parts Diagram

  • Title

1

Echo 61040252631

GEAR CASE ASSY
(Superseded to 61040252633)

Note: INCLUDES ITEMS 2-23

$161.99

$

In Stock, only 3 left!

0

2

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

3

Echo 90070200022

RING, RETAINING - 22

$2.49

$

In Stock, Qty 14

0

4

Echo 90085806900

BEARING, BALL - 6900Z

$27.99

$

In Stock, only 2 left!

0

5

Echo 90085506900

BEARING, BALL - 6900

$21.99

$

In Stock, only 2 left!

0

6

Echo 61030052630

GEAR SET - BEVEL

$122.99

$

Usually ships in 2-4 days

0

7

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 19

0

8

Echo 90051300010

LOCKNUT - LEFT HAND

$1.99

$

In Stock, Qty 20+

0

9

Echo C535000150

ADAPTOR, BLADE - LOWER

$10.99

$

In Stock, only 4 left!

0

10

Echo C535000140

ADAPTOR, BLADE - UPPER

$18.99

$

In Stock, only 2 left!

0

11

Echo 61041307130

SEAL, OIL

$6.99

$

In Stock, only 2 left!

0

12

Echo 61031507130

SPACER

$4.49

$

In Stock, only 2 left!

0

13

Echo 90070200032

RING, RETAINING - 32

$2.49

$

Usually ships in 2-4 days

0

14

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

15

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

16

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 20+

0

17

Echo 90080000609

BEARING, BALL - 609

$11.99

$

In Stock, Qty 5

0

18

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 20+

0

19

Echo 61046027431

CASE, GEAR
(Superseded to 61040247732)

$98.99

$

Usually ships in 2-4 days

0

20

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

21

Echo 61043450031

BOLT - 8X8

$2.49

$

In Stock, only 4 left!

0

22

Echo 90010005030

BOLT - 5X30

$0.99

$

Usually ships in 2-4 days

0

23

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 61022555331

COLLAR

$7.99

$

In Stock, only 2 left!

0

25

Echo 89751801131

LOCKING TOOL

$

$

Not available

26

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 6

0

27

Echo X602000020

T-WRENCH - 17X19mm

$4.49

$

In Stock, Qty 7

0
