PE-2000 - Echo Edger (Type 1E) Engine, Fan Housing, Cylinder Cover Parts Diagram

Edger (Type 1E)

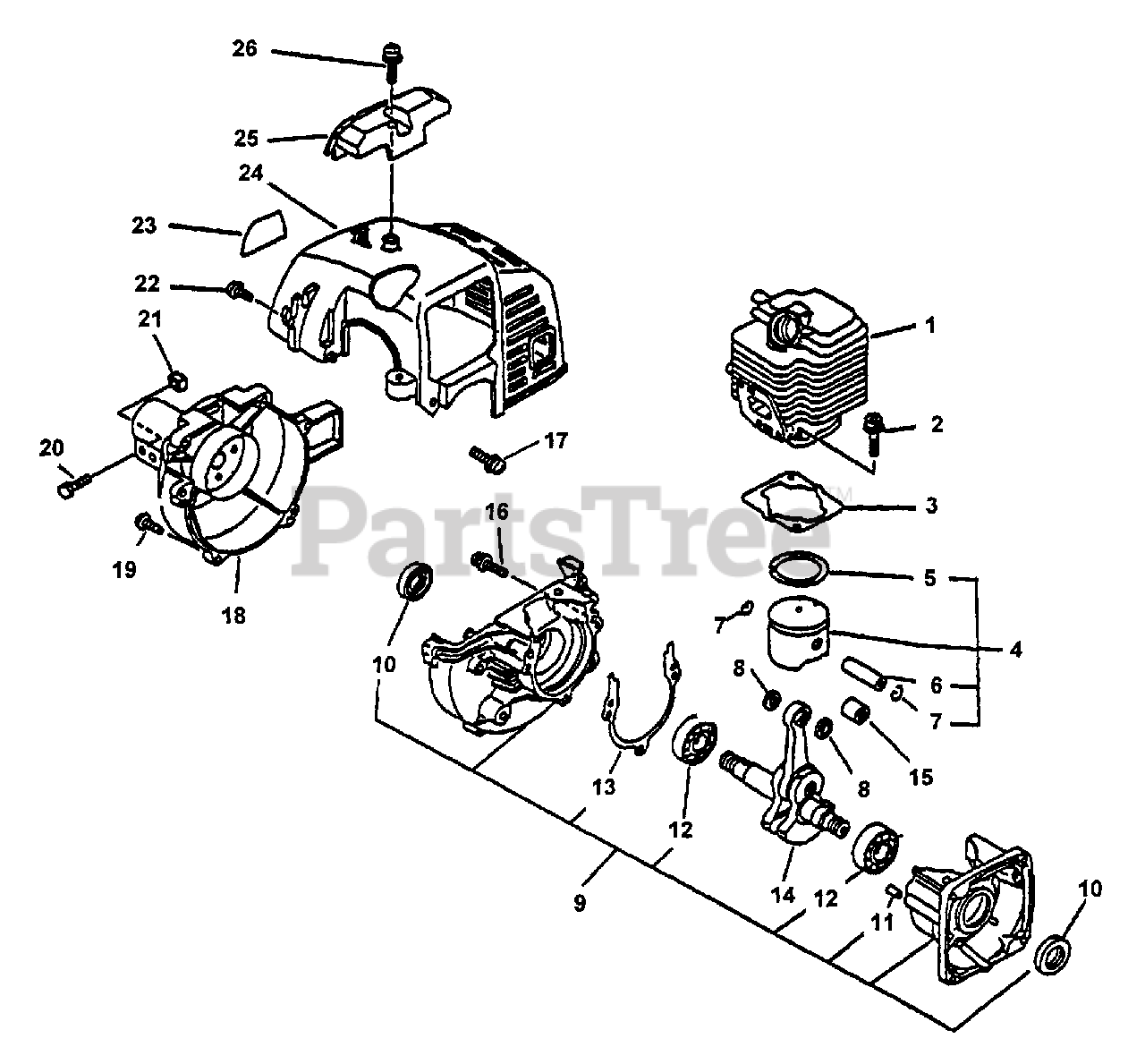

Engine, Fan Housing, Cylinder Cover Parts Diagram

  • Title

1

Echo 10101106562

CYLINDER

$130.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo 101010-44332

GASKET, CYLINDER

Note: USE KIT 88900042031

$4.99

$

In Stock, Qty 7

0

4

Echo 10000048732

PISTON KIT

Note: Includes ITEMS 5-8

$77.99

$

In Stock, only 2 left!

0

5

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

9

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 10-13

$

$

Not available

10

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

11

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

12

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

13

GASKET, CRANKCASE

Note: USE KIT 88900042031

$

$

Not available

14

Echo 10010044732

CRANKSHAFT ASSY
(Superseded to 10010044733)

Note: Includes ITEM 15

$186.99

$

Usually ships in 2-4 days

0

15

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

16

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

17

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, only 2 left!

0

18

Echo 10150348730

FAN CASE ASSY
(Superseded to 10150356630)

$

$

Not available

19

Echo 90016204018

SCREW - 4×18

$1.49

$

Usually ships in 2-4 days

0

20

Echo 900142-05028

BOLT 5×28

$0.99

$

In Stock, Qty 20+

0

21

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

22

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

23

Echo 89011255330

LABEL, PE-2000

$1.99

$

Usually ships in 2-4 days

0

24

Echo 10151448730

COVER, ENGINE - GRAY
(Superseded to 10151448731)

$23.99

$

In Stock, only 1 left!

0

25

Echo 15991248630

GUARD, TOP - GRAY
(Superseded to Discontinued)

$

$

Not available

26

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

Echo SB1007

SHORT BLOCK - SB1007
(Superseded to SB1026)

Note: Optional Engine RePower

$

$

Not available

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: Includes ITEMS 29-34

$19.99

$

In Stock, only 2 left!

0

Echo 101010-44332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 7

0

GASKET, CRANKCASE

$

$

Not available

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 12

0

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0
