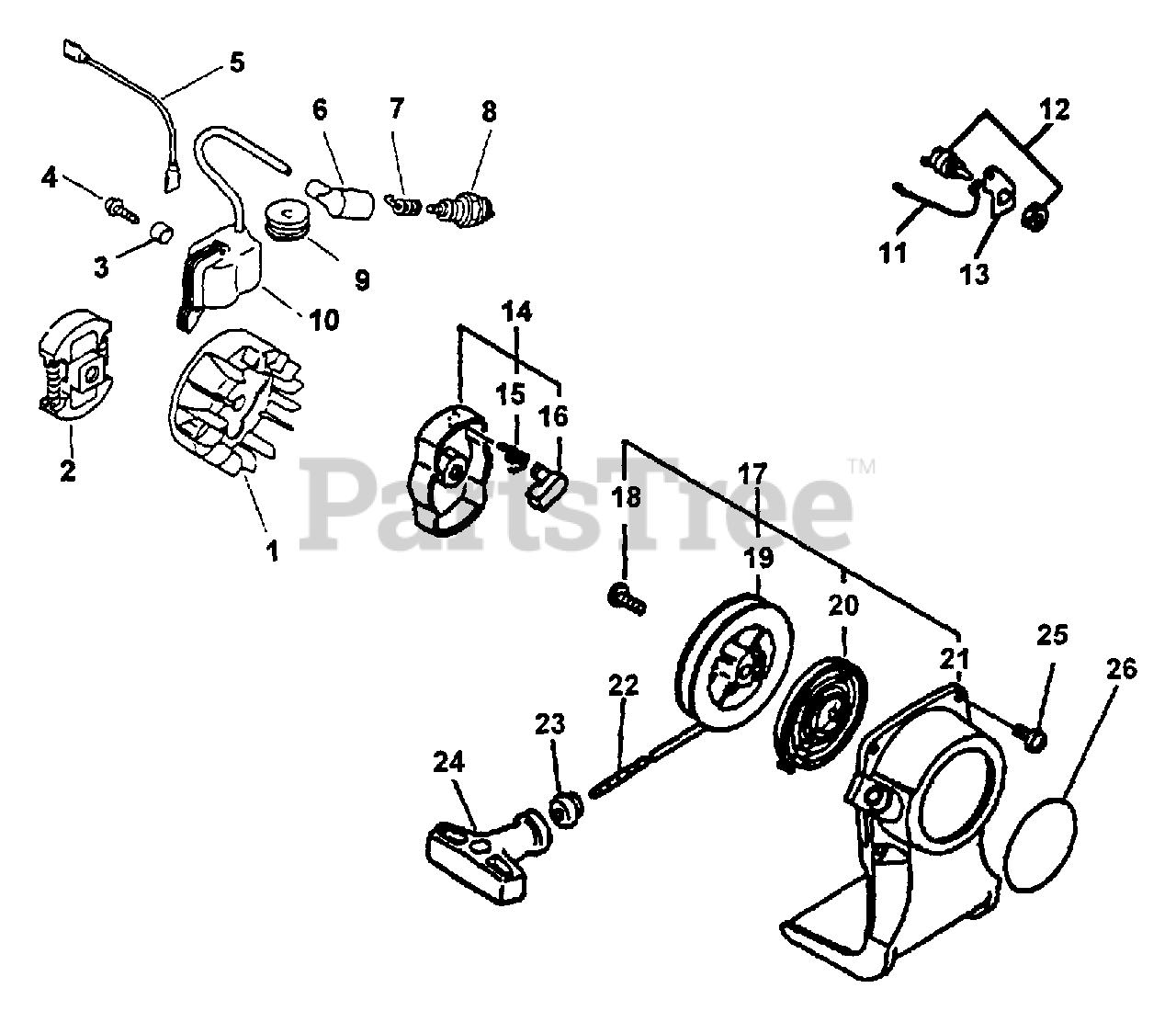

PE-2000 - Echo Edger (Type 1E) Ignition, Starter, Clutch, Stop Switch, Fuel System Parts Diagram

Edger (Type 1E)

Ignition, Starter, Clutch, Stop Switch, Fuel System Parts Diagram

  • Title

1

Echo 15880020560

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

2

Echo 17500049030

CLUTCH ASSY
(Superseded to 17500056830)

$32.99

$

In Stock, only 1 left!

0

3

Echo 10153154330

COLLAR

$2.99

$

Usually ships in 2-4 days

0

4

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

5

Echo 16202152130

LEAD - GROUND
(Superseded to 16201052830)

$4.49

$

In Stock, only 2 left!

0

6

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

7

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

8

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

9

Echo 150112-44330

GROMMET

$9.49

$

In Stock, Qty 8

0

10

Echo 15862655331

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

11

Echo 16201006861

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

12

Echo 16340003460

SWITCH, ON-OFF

$9.99

$

In Stock, Qty 10

0

13

Echo 16381044330

BRACKET, SWITCH

$3.49

$

Usually ships in 2-4 days

0

14

Echo 177202-44330

PAWL ASSY, STARTER

Note: Includes ITEMS 15-16

$11.99

$

In Stock, Qty 9

0

15

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

16

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

17

Echo 17720054130

STARTER ASSY

Note: Includes ITEMS 17-24

$53.99

$

In Stock, only 3 left!

0

18

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

19

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 7

0

20

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

21

Echo 17723244333

CASE, RECOIL STARTER

$48.99

$

In Stock, only 1 left!

0

22

ROPE, STARTER

Note: RePower BULK OPTION: 99944400040

$

$

Not available

23

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

24

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

25

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

26

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0
