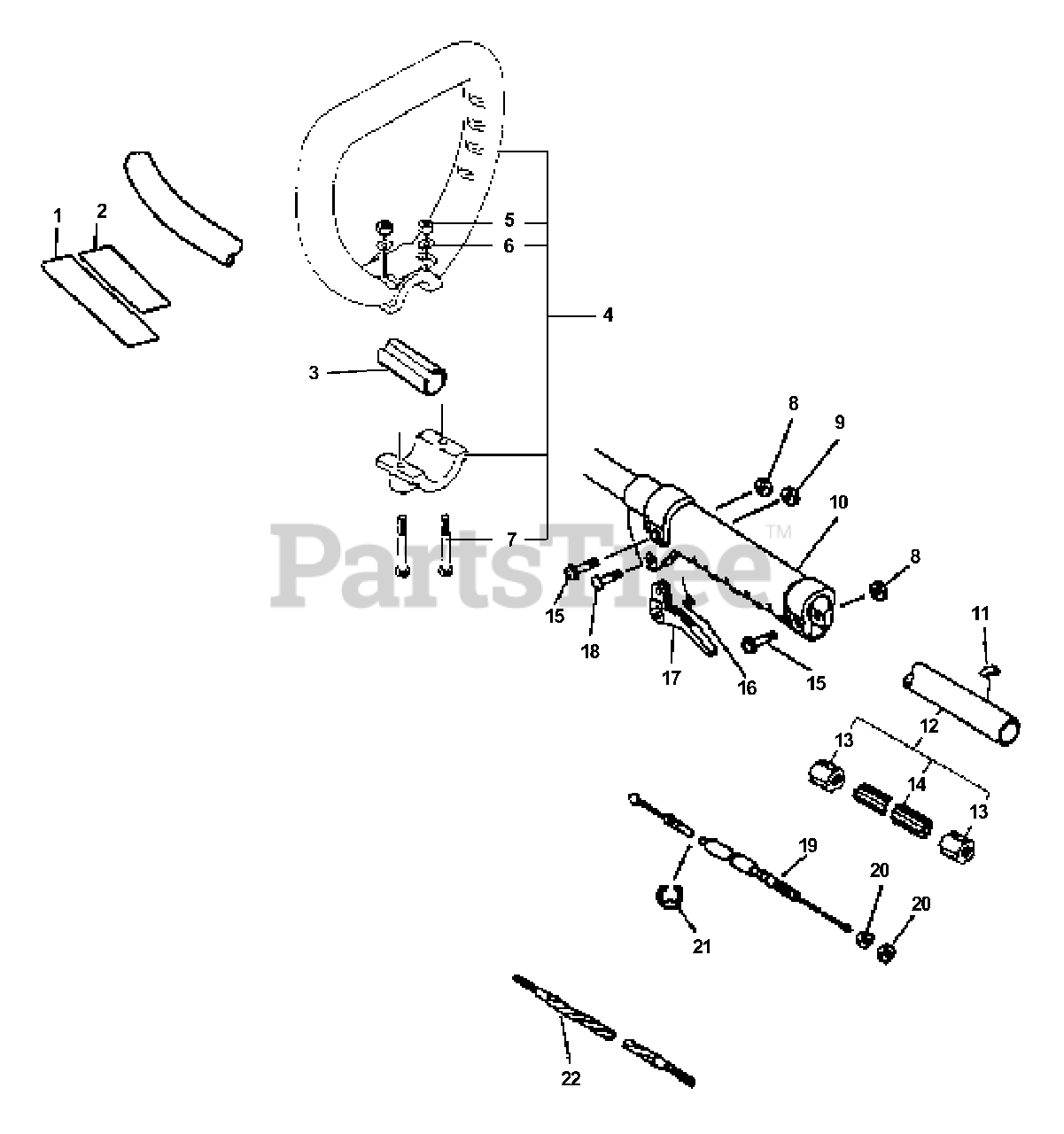

PE-2000 - Echo Edger (Type 2E) Driveshaft, Handles, Throttle Parts Diagram

Edger (Type 2E)

Driveshaft, Handles, Throttle Parts Diagram

  • Title

1

Echo 89016025560

LABEL, CAUTION

$9.49

$

Usually ships in 2-4 days

0

2

Echo 89017740630

LABEL, CAUTION
(Superseded to 89022809560)

$0.99

$

In Stock, only 2 left!

0

3

Echo 35133008930

COLLAR

$4.49

$

In Stock, Qty 13

0

4

Echo 351201-08930

LOOP HANDLE ASSY

Note: INCLUDES ITEMS 5 - 7

$45.99

$

Usually ships in 2-4 days

0

5

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

6

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

7

Echo 900220-05040

SCREW 5×40

$0.99

$

In Stock, Qty 8

0

8

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

9

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 9

0

10

Echo 35121344330

GRIP

$16.99

$

In Stock, only 4 left!

0

11

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

12

Echo 61020655330

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 13-14

$

$

Not available

13

Echo 61024655330

STOPPER

$5.49

$

In Stock, Qty 7

0

14

Echo 61021755330

LINER - FLEXIBLE

$28.99

$

In Stock, only 2 left!

0

15

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

16

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, Qty 20+

0

17

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.99

$

In Stock, Qty 20+

0

18

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

19

Echo 17800156730

CABLE, THROTTLE

$12.99

$

In Stock, only 1 left!

0

20

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

21

Echo 90070000005

RING, RETAINING - 5

$0.99

$

In Stock, Qty 9

0

22

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, Qty 20+

0
