PE-2000 - Echo Edger (Type 2E) Engine, Fan Housing, Cylinder Cover Parts Diagram

Edger (Type 2E)

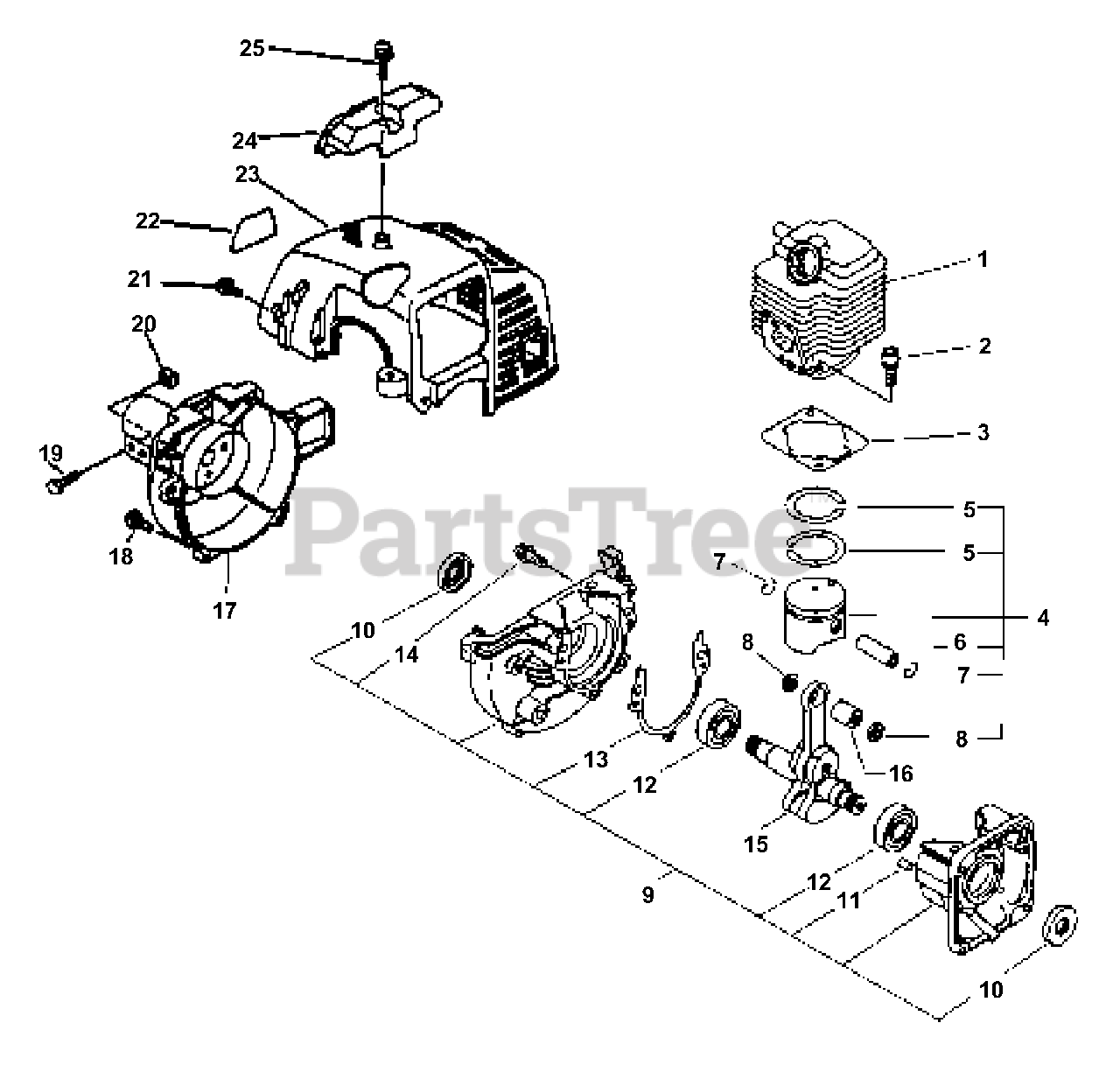

Engine, Fan Housing, Cylinder Cover Parts Diagram

  • Title

1

Echo 10101106562

CYLINDER

Note: S/N 001001 - 522074

$130.99

$

Usually ships in 2-4 days

0

1

Echo A130000010

CYLINDER
(Superseded to A130000011)

Note: S/N 522075 & UP

$139.99

$

Usually ships in 2-4 days

0

2

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

3

Echo 101010-44332

GASKET, CYLINDER

Note: USE KIT 88900042032

$4.99

$

In Stock, Qty 7

0

4

Echo P021001101

PISTON KIT
(Superseded to P021001102)

Note: INCLUDES ITEMS 5 - 8

$93.99

$

In Stock, only 2 left!

0

5

Echo A101000000

RING, PISTON

$10.99

$

In Stock, Qty 8

0

6

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

7

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

9

CRANKCASE KIT

Note: INCLUDES ITEMS 10 - 14 (USE SB1026)

$

$

Not available

10

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

11

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

12

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

13

GASKET, CRANKCASE

Note: USE KIT 88900042032

$

$

Not available

14

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

15

CRANKSHAFT ASSY

Note: INCLUDES ITEM 16 (USE SB1026)

$

$

Not available

16

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

17

Echo 10150356630

COVER ASSY, FAN
(Superseded to Discontinued)

$

$

Not available

18

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0

19

Echo 900142-05028

BOLT 5×28

$0.99

$

In Stock, Qty 20+

0

20

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

21

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, only 2 left!

0

22

Echo 89011255330

LABEL, PE-2000

$1.99

$

Usually ships in 2-4 days

0

23

Echo 10151448730

COVER, ENGINE - GRAY
(Superseded to 10151448731)

$23.99

$

In Stock, only 1 left!

0

24

Echo 15991248630

GUARD, TOP - GRAY
(Superseded to Discontinued)

$

$

Not available

25

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

Echo SB1026

SHORT BLOCK ES-2100;PB-2100
(Superseded to Discontinued)

$

$

Not available

Echo 88900042032

GASKET KIT
(Superseded to 88900042033)

Note: INCLUDES THE FOLLOWING ITEMS

$19.99

$

In Stock, only 2 left!

0

Echo 101010-44332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 7

0

GASKET, CRANKCASE

$

$

Not available

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 12

0

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo V104000003

GASKET, EXHAUST

$3.49

$

In Stock, Qty 5

0
