PE-2000 - Echo Edger (Type 2E) Ignition, Starter, Clutch, Stop Switch Parts Diagram

Edger (Type 2E)

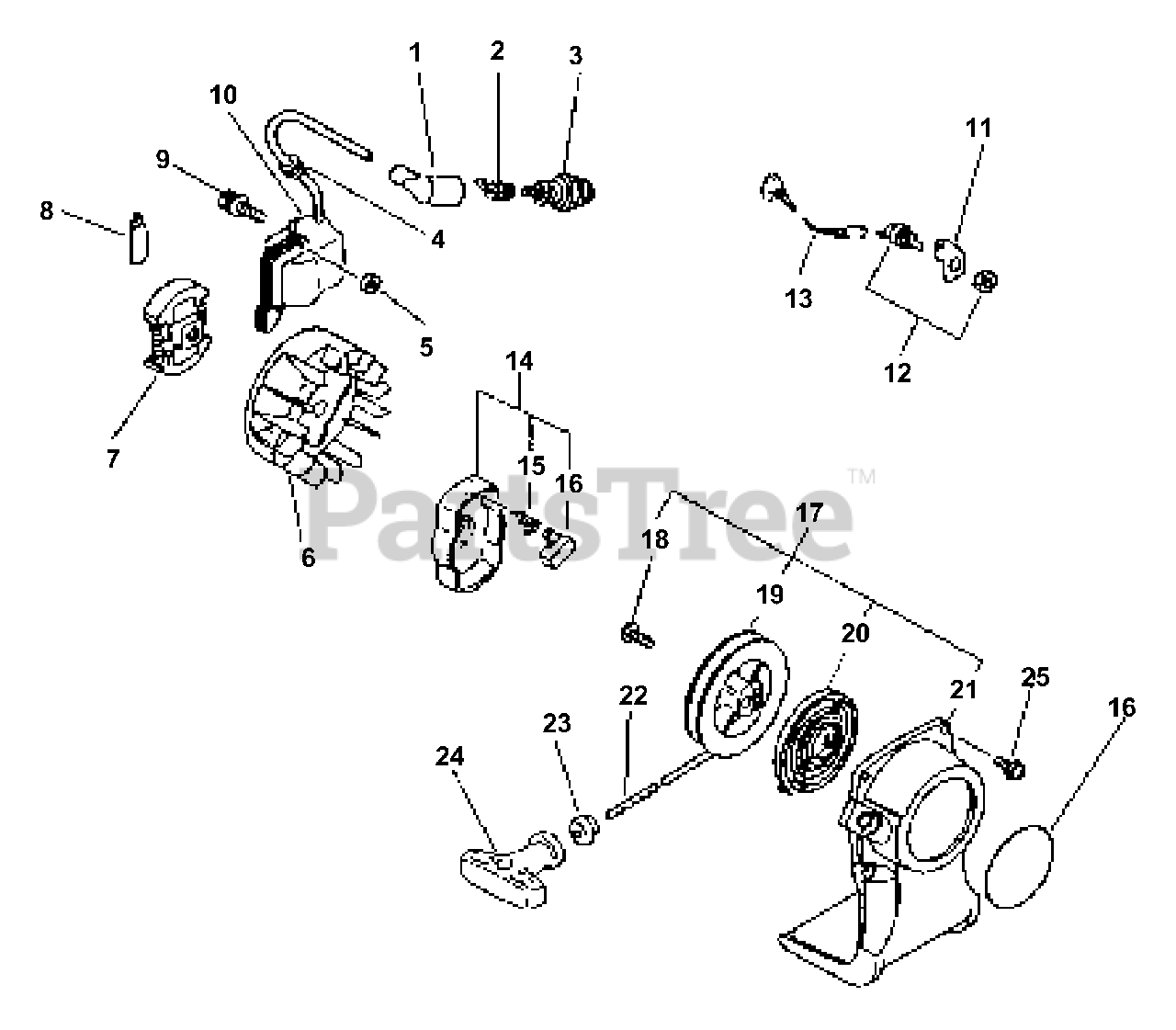

Ignition, Starter, Clutch, Stop Switch Parts Diagram

  • Title

1

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 3 left!

0

2

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 15

0

3

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

4

Echo 15011244330

GROMMET
(Superseded to Discontinued)

$

$

Not available

5

Echo 10153154330

SPACER

Note: S/N 001001 - 527888

$2.99

$

Usually ships in 2-4 days

0

6

Echo 15880020560

FLYWHEEL
(Superseded to Discontinued)

Note: S/N 001001 - 527888

$

$

Not available

6

Echo A409000000

FLYWHEEL
(Superseded to A409000100)

Note: S/N 527889 & UP

$68.99

$

Usually ships in 2-4 days

0

7

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

$32.99

$

In Stock, only 1 left!

0

8

Echo 15911621231

CLAMP

$1.99

$

Usually ships in 2-4 days

0

9

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

10

Echo 15862655331

COIL, IGNITION
(Superseded to Discontinued)

Note: S/N 001001 - 527888

$

$

Not available

10

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

Note: S/N 527889 & UP

$143.99

$

Usually ships in 2-4 days

0

11

Echo 16381044330

BRACKET, SWITCH

$3.49

$

Usually ships in 2-4 days

0

12

Echo 16340003460

IGNITION SWITCH ASSY

$9.99

$

In Stock, Qty 14

0

13

Echo 16201006861

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

14

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: Includes ITEMS 15-16

$19.99

$

In Stock, only 3 left!

0

15

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 15

0

16

Echo 17721844330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

17

Echo 17720054130

STARTER ASSY

Note: INCLUDES ITEMS 18 - 24

$53.99

$

In Stock, only 4 left!

0

18

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 13

0

19

Echo 17721544430

REEL, ROPE

$10.99

$

In Stock, Qty 11

0

20

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$11.99

$

In Stock, Qty 16

0

21

Echo 17723244333

CASE, STARTER - BLUE

$48.99

$

In Stock, only 1 left!

0

22

------------------

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$

$

Not available

23

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

24

Echo 17722806530

GRIP, STARTER

$5.99

$

In Stock, Qty 8

0

25

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

26

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0
