PE-2201 A - Echo Edger Gear Case Parts Diagram

Edger

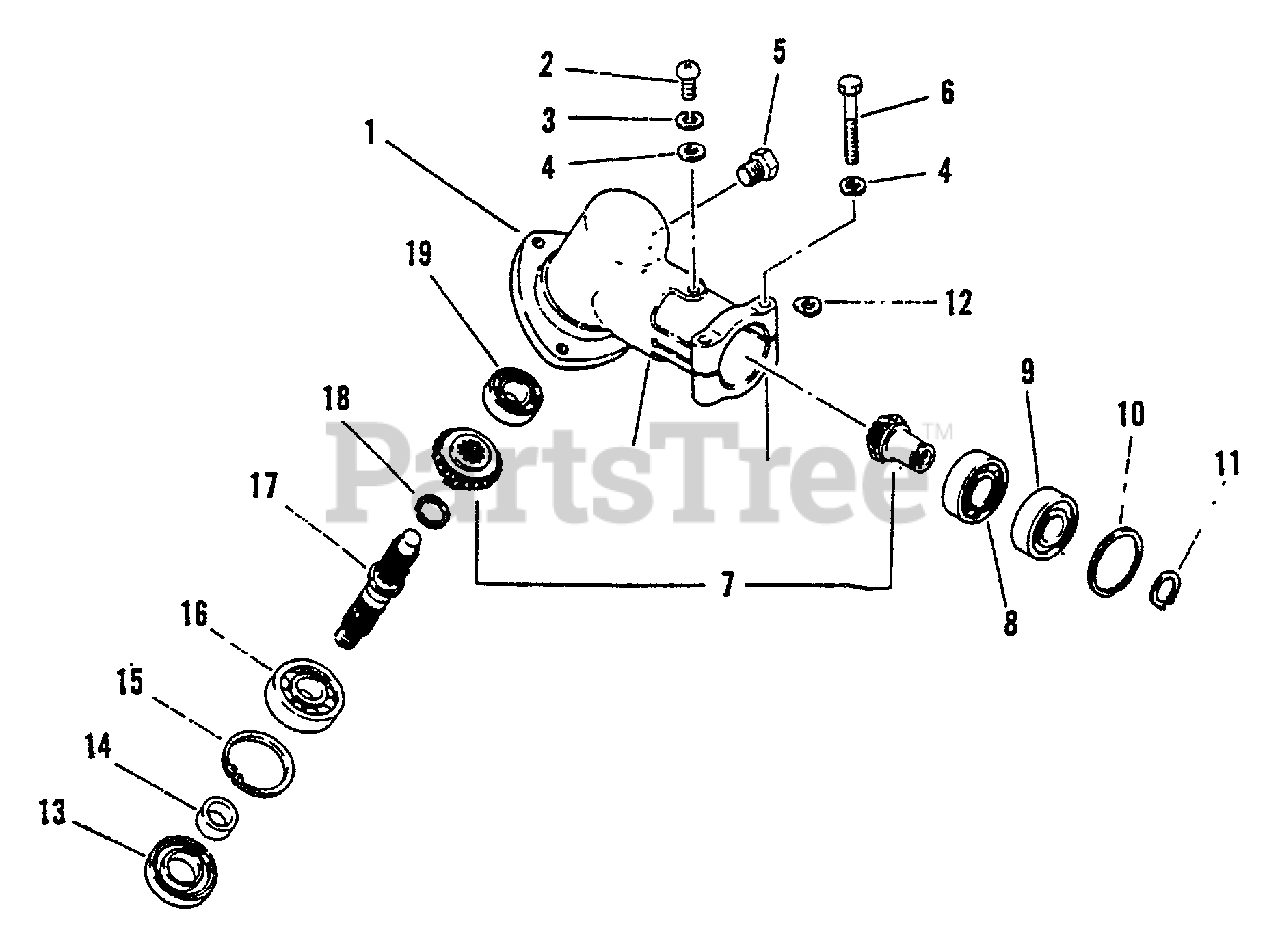

Gear Case Parts Diagram

  • Title

Echo 61040252130

GEAR CASE ASSY
(Superseded to 61040252131)

Note: Includes Items 1, 5, 7 - 11, 13 - 19

$283.99

$

Usually ships in 2-4 days

0

1

CASE, GEAR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

2

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

3

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

4

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

5

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

6

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

7

Echo 61030044830

GEAR SET

Note: Matched Set

$106.99

$

Usually ships in 2-4 days

0

8

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

9

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

10

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

11

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

12

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

13

Echo 61041307130

SEAL, OIL 22

$6.99

$

In Stock, only 1 left!

0

14

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 1 left!

0

15

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 1 left!

0

16

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

17

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

18

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

19

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0
