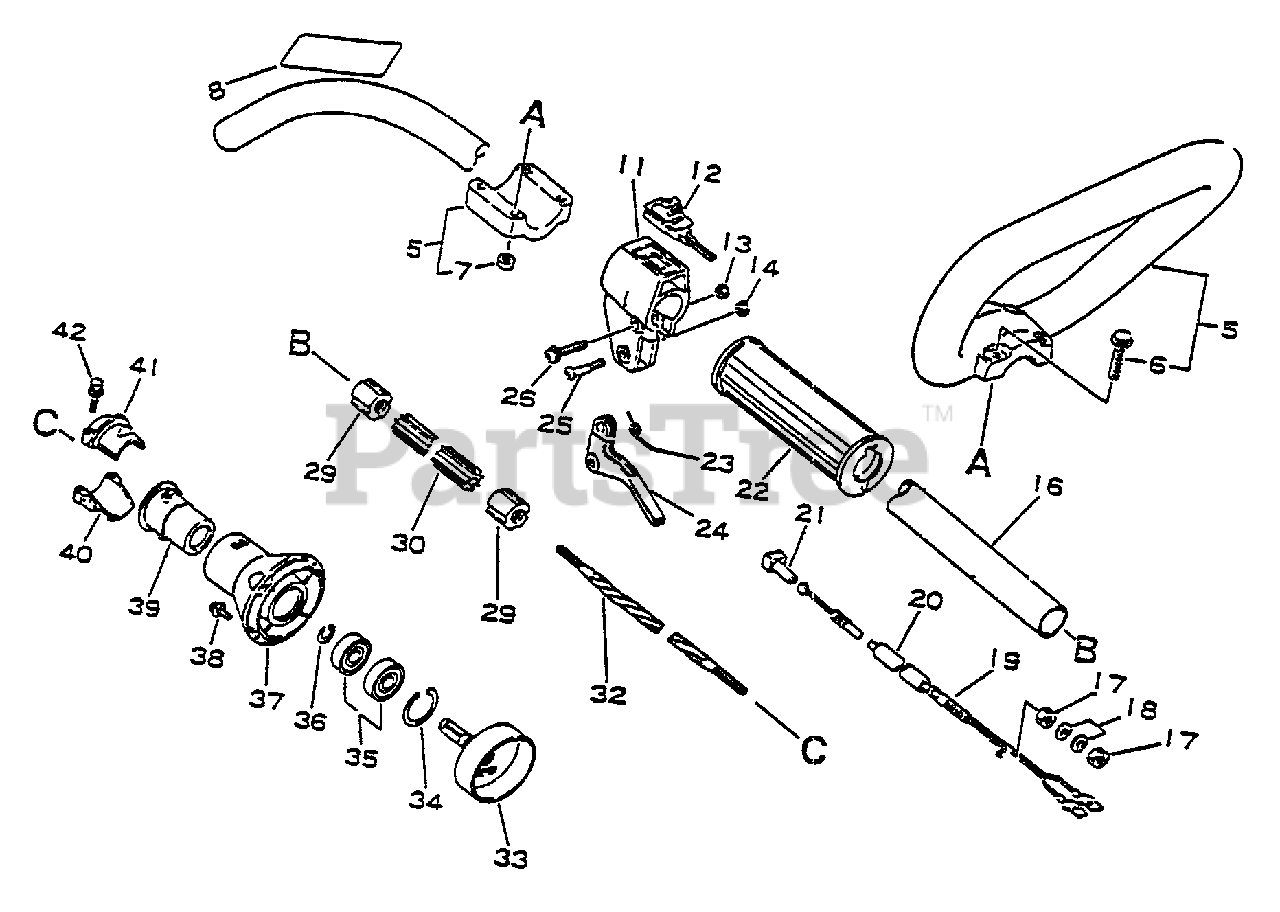

PE-2201 - Echo Edger Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing Parts Diagram

Edger

Driveshaft, Handles, Throttle, Stop Switch, Clutch Housing Parts Diagram

  • Title

5

Echo 35120140830

LOOP HANDLE ASSY
(Superseded to 35120151730)

Note: Includes Items 6 & 7

$14.99

$

In Stock, Qty 5

0

6

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

8

Echo 89016048030

LABEL, CAUTION

$1.49

$

Usually ships in 2-4 days

0

11

Echo 17802449230

BRACKET, THROTTLE CONTROL
(Superseded to Discontinued)

$

$

Not available

12

Echo 16340049130

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 9

0

16

Echo 61020649030

MAIN PIPE ASSY

Note: Includes Items 8, 29 & 30

$66.99

$

Usually ships in 2-4 days

0

17

Echo 900502-00006

NUT M6

$0.99

$

In Stock, only 3 left!

0

18

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo 17800140930

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

20

Echo 17812740930

PIPE

$0.99

$

Usually ships in 2-4 days

0

21

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

22

Echo 35101244730

GRIP
(Superseded to Discontinued)

$

$

Not available

23

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, Qty 20+

0

24

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.99

$

In Stock, Qty 20+

0

25

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

26

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

29

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

30

Echo C507000260

LINER, FLEXIBLE 21.6×1420
(Superseded to C507000430)

$30.99

$

In Stock, Qty 20+

0

32

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, Qty 20+

0

33

Echo 17500544830

DRUM, CLUTCH
(Superseded to 17500551730)

$18.99

$

Usually ships in 2-4 days

0

34

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

35

Echo 9405106001

BEARING, BALL 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

36

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

37

Echo 61022349230

CASE, CLUTCH - GRAY

$67.99

$

Usually ships in 2-4 days

0

38

Echo 900242-05016

SCREW 5×16

$0.99

$

In Stock, Qty 8

0

39

Echo 61091027832

CUSHION

$9.49

$

In Stock, only 2 left!

0

40

Echo 61092227432

HOLDER, MAIN PIPE - UPPER

$6.99

$

In Stock, only 1 left!

0

41

Echo 61092327432

HOLDER

$7.49

$

Usually ships in 2-4 days

0

42

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

44

Echo 89512349130

SPANNER
(Superseded to 89511300330)

$

$

Not available

45

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

46

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 20+

0
