PE-2201 - Echo Edger Gear Case, Blade, Shield Parts Diagram

Edger

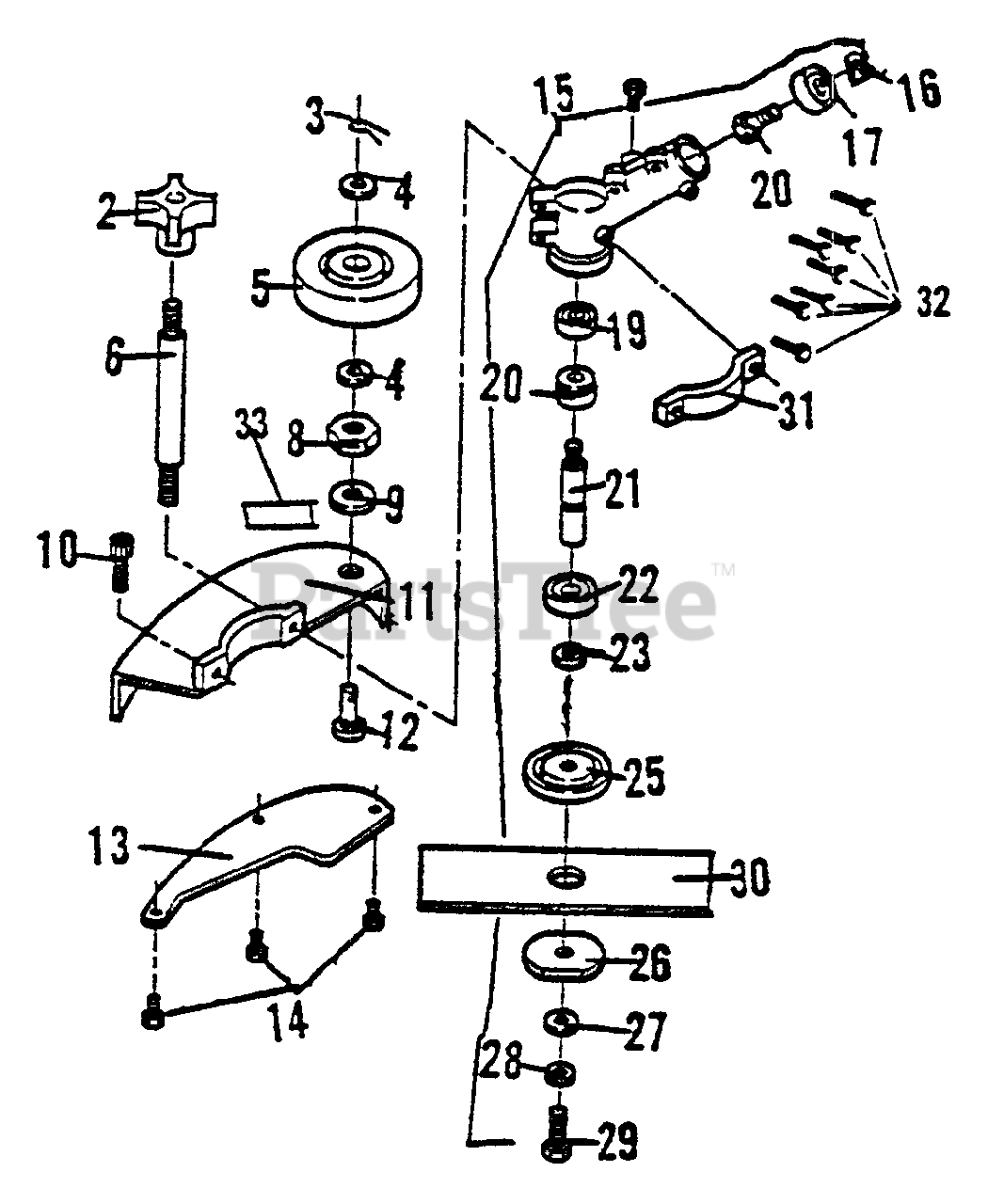

Gear Case, Blade, Shield Parts Diagram

  • Title

2

Echo 720190120

KNOB
(Superseded to 720285204)

$

$

Not available

3

Echo 720236907

PIN, SPLIT
(Superseded to Discontinued)

$

$

Not available

4

Echo 720236908

WASHER

$0.99

$

Usually ships in 2-4 days

0

5

Echo 720235101

WHEEL, POLY

$5.49

$

Usually ships in 2-4 days

0

6

Echo 720236707

HANDLE, SHAFT

$8.49

$

Usually ships in 2-4 days

0

8

Echo 720051017

NUT

$3.49

$

Usually ships in 2-4 days

0

9

Echo 720041007

WASHER

$0.99

$

Usually ships in 2-4 days

0

10

Echo 720237604

SCREW
(Superseded to Discontinued)

$

$

Not available

11

Echo 720236113

EDGER GUARD

$

$

Not available

12

Echo 720237611

AXLE

$19.99

$

Usually ships in 2-4 days

0

13

Echo 720236909

EDGER SHIELD
(Superseded to 720236919)

$19.99

$

Usually ships in 2-4 days

0

14

Echo 720011310

SCREW
(Superseded to Discontinued)

$

$

Not available

15

Echo 720270303

GEAR CASE ASSY

Note: Includes Items 16-29

$

$

Not available

16

Echo 720060020

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

17

Echo 720070026

BEARING, BALL
(Superseded to 90080806001)

$9.99

$

In Stock, only 2 left!

0

19

Echo 720070027

BEARING, BALL
(Superseded to 90080400608)

$12.99

$

In Stock, only 3 left!

0

20

Echo 720190609

GEAR SET
(Superseded to 99944452631)

$

$

Not available

21

Echo 720226707

GEAR - SHAFT
(Superseded to 720226706)

$

$

Not available

22

Echo 720070002

BEARING, BALL
(Superseded to 90080300609)

$15.99

$

In Stock, only 1 left!

0

23

Echo 720226705

SHAFT, SPACER

$1.49

$

Usually ships in 2-4 days

0

25

Echo 720300070

HOLDER - A
(Superseded to Discontinued)

$

$

Not available

26

Echo 720300075

HOLDER B

$6.49

$

Usually ships in 2-4 days

0

27

Echo 720041003

WASHER
(Superseded to 90060200008)

$0.99

$

In Stock, Qty 20+

0

28

Echo 720040007

WASHER
(Superseded to 90061100008)

$0.99

$

Usually ships in 2-4 days

0

29

Echo 720300080

BOLT

$1.99

$

Usually ships in 2-4 days

0

30

Echo 720237001

BLADE, EDGER

$

$

Currently unavailable

31

Echo 720236110

BRACKET, EDGER GUARD
(Superseded to Discontinued)

$

$

Not available

32

Echo 720011309

SCREW
(Superseded to Discontinued)

$

$

Not available

33

Echo 89011748030

LABEL - CAUTION

$

$

Currently unavailable
