PE-225 - Echo Edger (SN: S78611001001 - S78611999999) Edging Assembly -- Plastic Parts Diagram

Edger

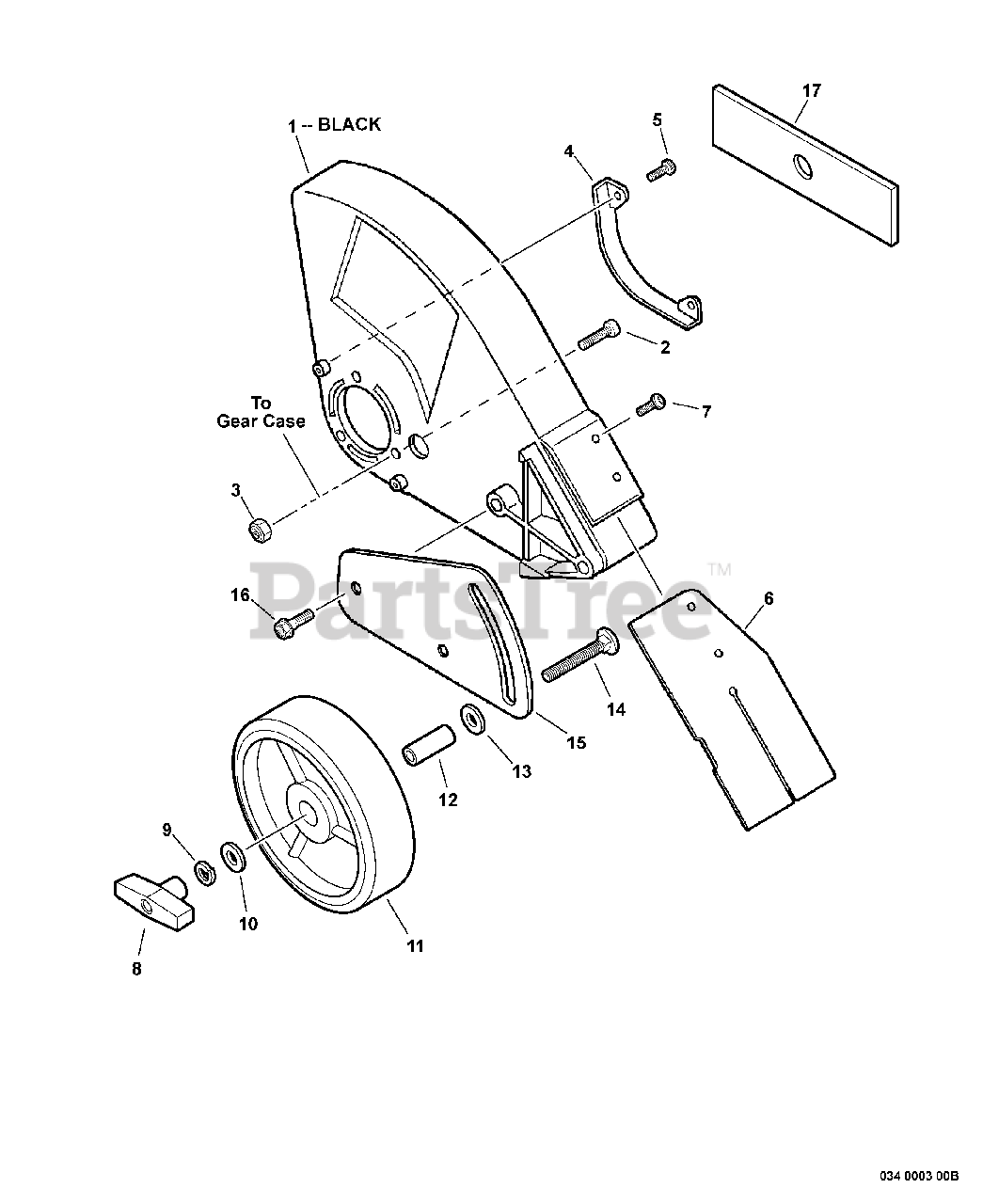

Edging Assembly -- Plastic Parts Diagram

  • Title

1

Echo 69901052830

SHIELD, DEBRIS

$24.99

$

In Stock, only 1 left!

0

2

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

3

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

4

Echo 69902552630

GUARD, SHIELD

$3.99

$

In Stock, Qty 12

0

5

Echo V804000010

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0

6

Echo 69901755330

FLAP, DEBRIS

$14.99

$

In Stock, only 2 left!

0

7

Echo V804000020

BOLT, TORX 4×20

$0.99

$

In Stock, only 2 left!

0

8

Echo 17811355330

KNOB, FASTENER
(Superseded to V299000670)

$4.49

$

In Stock, Qty 20+

0

9

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

10

Echo 900602-00008

WASHER 8

$0.99

$

In Stock, Qty 20+

0

11

Echo C730000030

WHEEL
(Superseded to C730000120)

$12.99

$

In Stock, only 4 left!

0

12

Echo 30242452630

COLLAR 12

$3.99

$

In Stock, Qty 19

0

13

Echo 90060200010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 15

0

14

Echo 61025055330

BOLT 5/16"-18×2-1/2"

$2.49

$

In Stock, Qty 20+

0

15

Echo 30202955332

BRACKET, WHEEL

$9.49

$

In Stock, only 3 left!

0

16

Echo 90008000100

BOLT 8

$1.99

$

Usually ships in 2-4 days

0

17

Echo 69601552632

BLADE - 2 PK

Note: Includes 2 PER PACKAGE

$11.99

$

In Stock, Qty 20+

0
