PE-225 - Echo Edger (SN: S78611001001 - S78611999999) Gear Case Parts Diagram

Edger

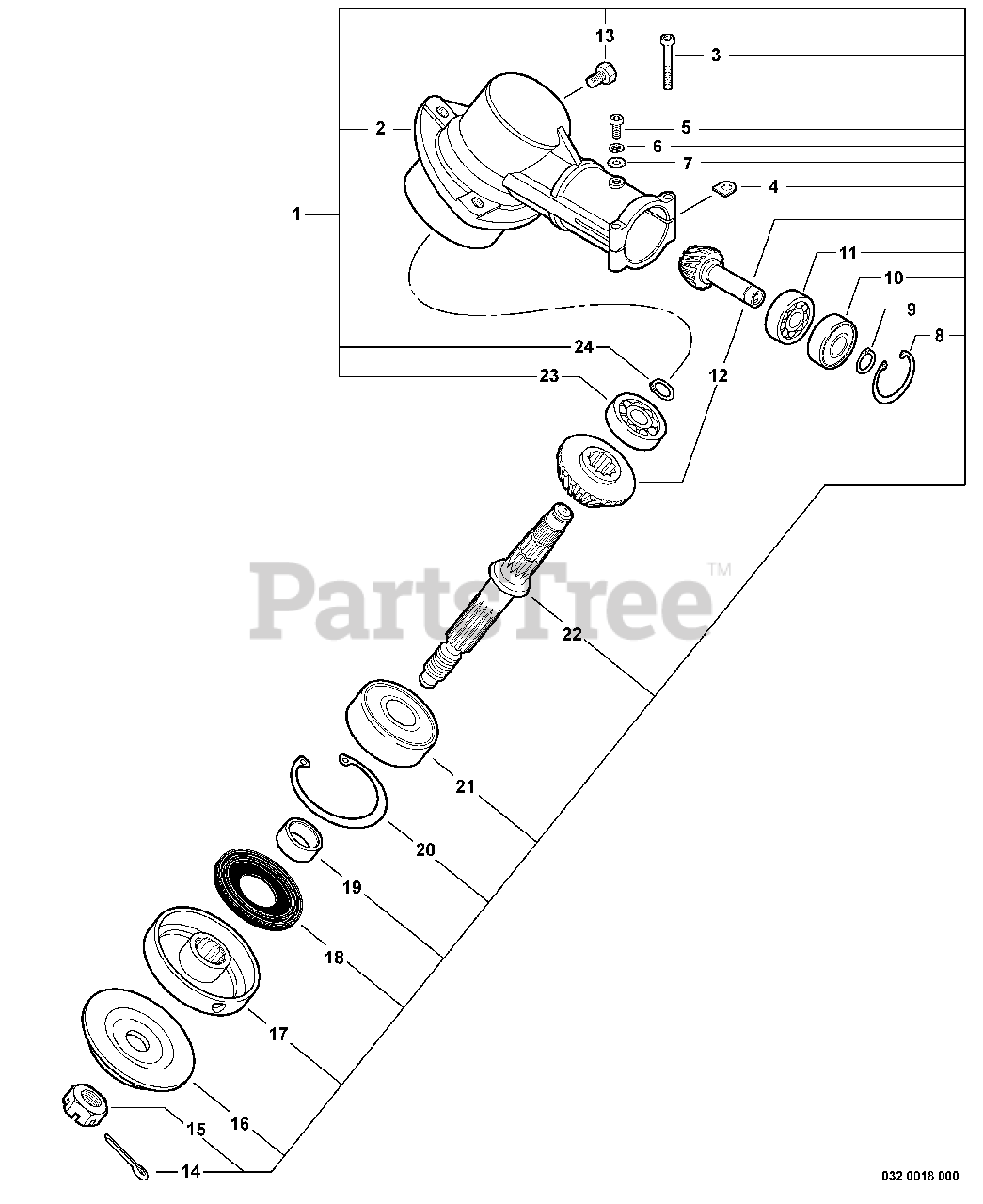

Gear Case Parts Diagram

  • Title

1

Echo P021016260

GEAR CASE ASSY
(Superseded to P021044550)

Note: Includes ITEMS 2-24

$161.99

$

In Stock, only 3 left!

0

2

Echo 61046027431

HOUSING, GEAR CASE
(Superseded to 61040247732)

$98.99

$

Usually ships in 2-4 days

0

3

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

4

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

5

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

6

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

7

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

9

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

10

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

11

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

12

Echo 61030052630

GEAR SET

$122.99

$

Usually ships in 2-4 days

0

13

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

14

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

15

Echo 90051300010

NUT 10×1.25 LH

$1.99

$

In Stock, Qty 20+

0

16

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

17

Echo C535000140

PLATE, ADAPTOR - UPPER

$18.99

$

In Stock, only 2 left!

0

18

Echo 61041307130

SEAL, OIL 22

$6.99

$

In Stock, only 1 left!

0

19

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 1 left!

0

20

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

21

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

22

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

23

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

24

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0
