PE-225 - Echo Edger (SN: T86714001001 - T86714999999) Gear Case Parts Diagram

Edger

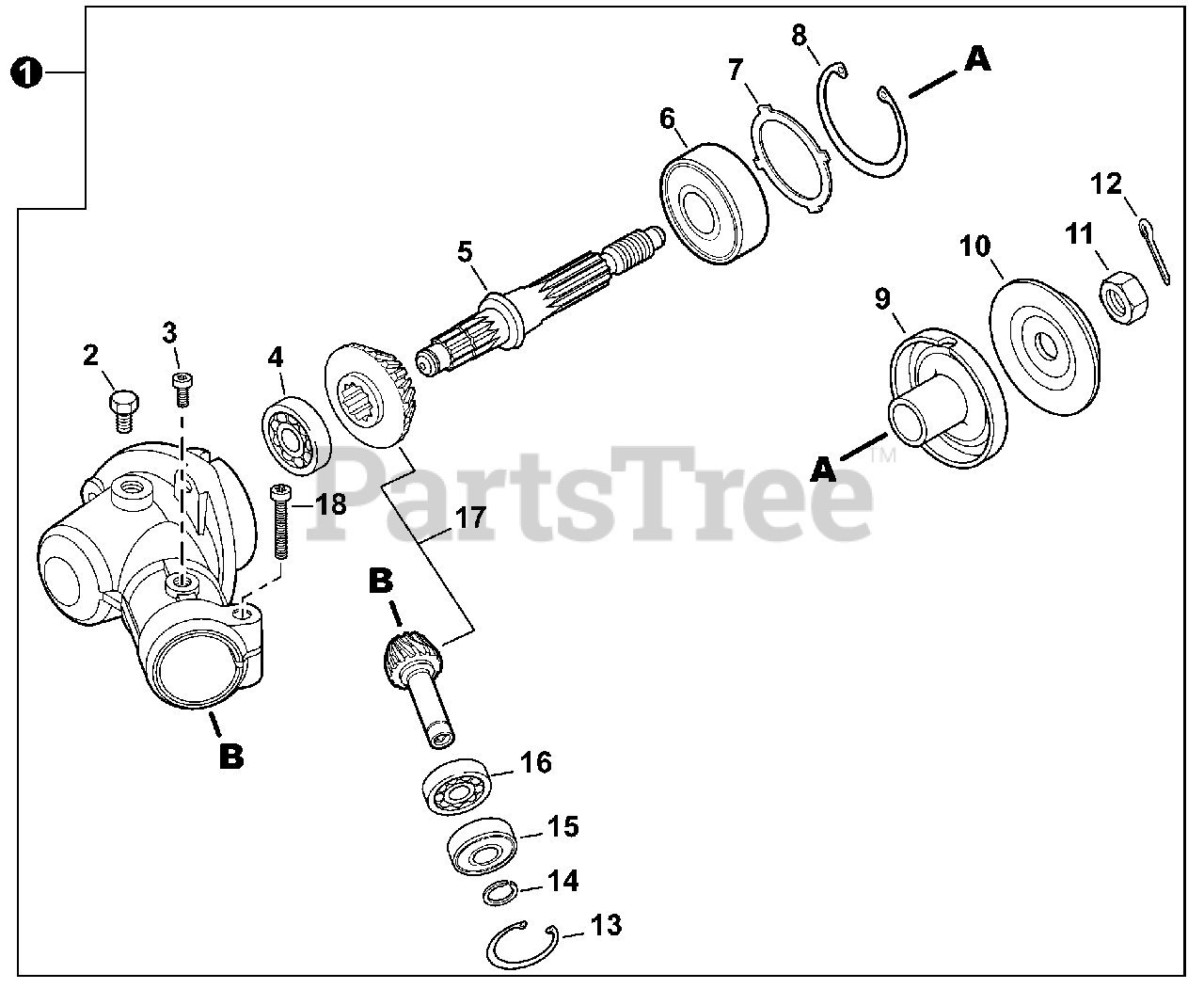

Gear Case Parts Diagram

  • Title

1

Echo P021051310

GEAR CASE ASSY
(Superseded to P021054060)

Note: Includes Items 2-18

$107.99

$

In Stock, only 1 left!

0

2

Echo 610434-50031

BOLT M8×8

$2.49

$

In Stock, Qty 7

0

3

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

4

Echo 9411000629

BEARING, BALL

$12.99

$

Usually ships in 2-4 days

0

5

Echo C534001090

SHAFT, GEAR

$60.99

$

In Stock, only 2 left!

0

6

Echo 90081206201

BEARING, BALL 6201

$14.99

$

In Stock, only 2 left!

0

7

Echo V340000180

WASHER

$1.99

$

In Stock, Qty 9

0

8

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 1 left!

0

9

Echo C535000941

PLATE, ADAPTOR - UPPER
(Superseded to C535001240)

$23.99

$

In Stock, Qty 14

0

10

Echo 61031404131

PLATE, ADAPTOR - LOWER
(Superseded to C535000150)

$10.99

$

In Stock, Qty 8

0

11

Echo 90051300010

NUT 10×1.25 LH

$1.99

$

In Stock, Qty 20+

0

12

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

13

Echo 90070200025

RING, SNAP Ø25

$2.49

$

In Stock, only 4 left!

0

14

Echo 90070100009

RING, SNAP Ø9

$0.99

$

Usually ships in 2-4 days

0

15

Echo 9411100609

BEARING, BALL

$12.99

$

In Stock, only 2 left!

0

16

Echo 9411000609

BEARING, BALL

$12.99

$

Usually ships in 2-4 days

0

17

Echo V000000250

GEAR SET

$83.99

$

Usually ships in 2-4 days

0

18

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0
