PE-231 - Echo Edger (SN: 02001001 - 02999999) Gear Case Parts Diagram

Edger

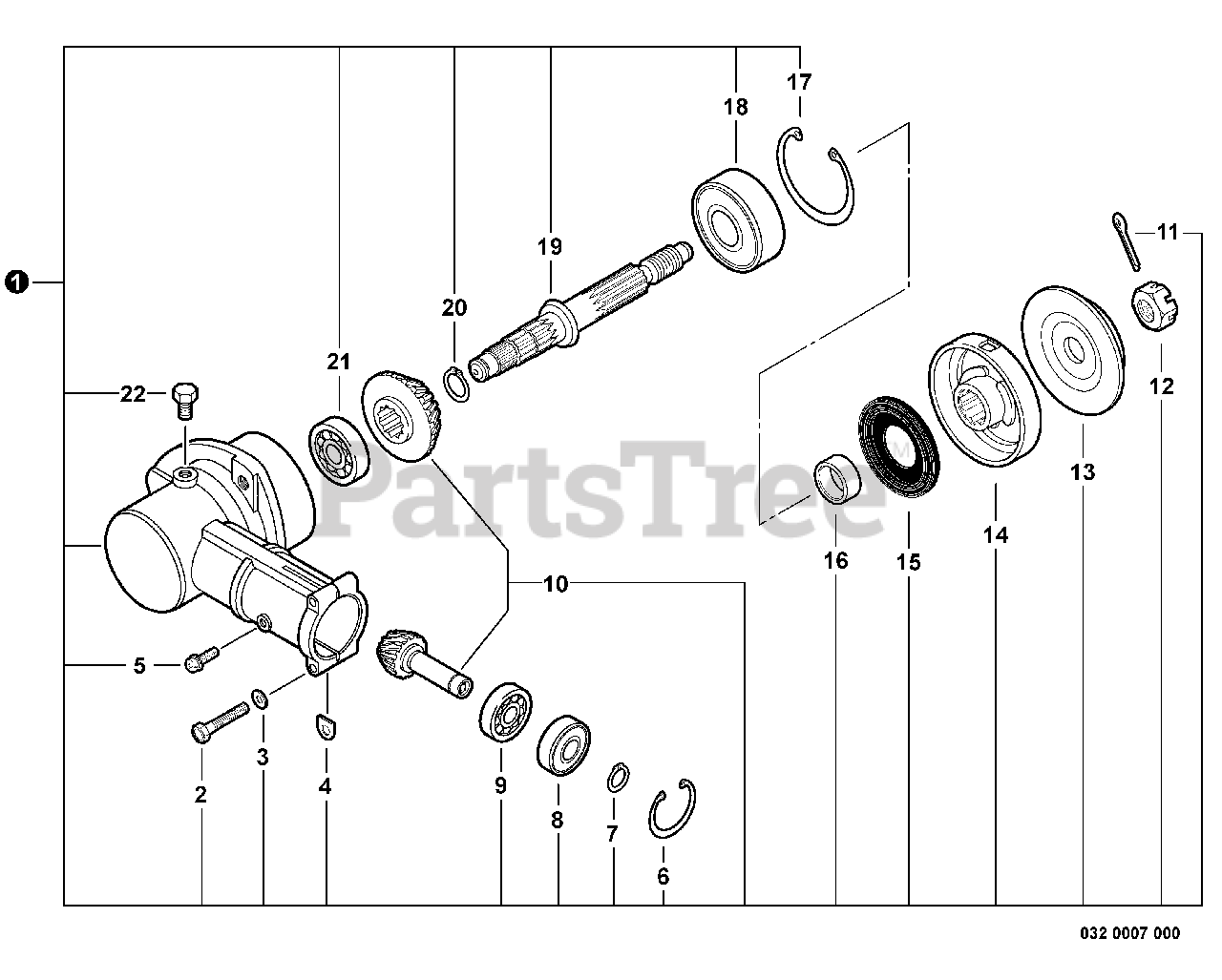

Gear Case Parts Diagram

  • Title

1

Echo 61040252631

GEAR CASE ASSY
(Superseded to 61040252633)

Note: Includes ITEMS 2-22

$161.99

$

In Stock, only 3 left!

0

2

Echo 90010005030

BOLT 5×30

$0.99

$

Usually ships in 2-4 days

0

3

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

5

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

6

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

7

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

8

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

9

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

10

Echo 61030052630

GEAR SET

$122.99

$

Usually ships in 2-4 days

0

11

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

12

Echo 90051300010

NUT 10×1.25 LH

$1.99

$

In Stock, Qty 20+

0

13

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

14

Echo 61031307130

PLATE, ADAPTER - UPPER
(Superseded to 61031307132)

$20.99

$

In Stock, only 3 left!

0

15

Echo 61041307130

SEAL, OIL 22

$6.99

$

In Stock, only 1 left!

0

16

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 1 left!

0

17

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 1 left!

0

18

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

19

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

20

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

21

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

22

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0
