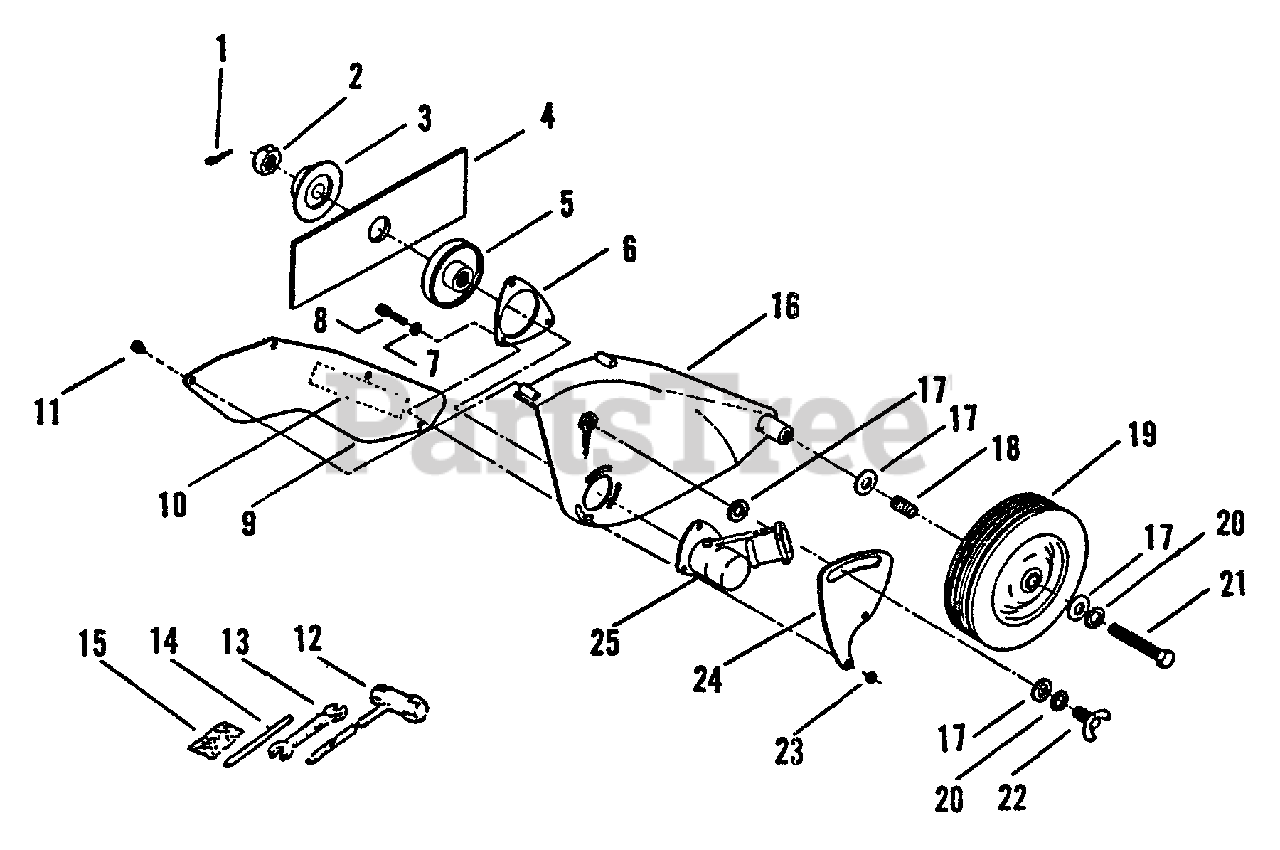

PE-2400 - Echo Edger (SN: 001001 - 008000) Blade, Shield, Tools Parts Diagram

Edger

Blade, Shield, Tools Parts Diagram

  • Title

1

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

2

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

3

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

4

Echo 69601552630

BLADE, EDGER

Note: See Accessories

$

$

Currently unavailable

5

Echo 61031307130

PLATE, ADAPTER - UPPER
(Superseded to 61031307132)

$20.99

$

In Stock, only 3 left!

0

6

Echo C552000110

PLATE, SHIELD Ø49.5 MM
(Superseded to C552000240)

$2.99

$

In Stock, only 3 left!

0

7

Echo 90010505025

BOLT 5×25

$1.49

$

In Stock, Qty 9

0

8

Echo 90060800005

WASHER, CONE 5.2 MM

$1.99

$

Usually ships in 2-4 days

0

9

Echo 69900952630

SHIELD ASSY, W/DECAL

Note: Includes ITEM 10

$

$

Not available

10

Echo 89017748030

LABEL - CAUTION
(Superseded to 89016052630)

$2.49

$

Usually ships in 2-4 days

0

11

Echo 90016204010

BOLT 4×10

$1.49

$

In Stock, Qty 20+

0

12

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 7

0

13

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

14

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

15

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0

16

Echo 69901052630

WEAR PLATE
(Superseded to 69901052631)

$24.99

$

In Stock, only 1 left!

0

17

Echo 900602-00008

WASHER 8

$0.99

$

In Stock, Qty 20+

0

18

Echo 30242452630

COLLAR 12

$3.99

$

In Stock, Qty 20+

0

19

Echo 30241052630

WHEEL - 6×1.5
(Superseded to 30241052631)

$12.99

$

In Stock, Qty 5

0

20

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

21

Echo 90010008080

BOLT - 8×60

$3.49

$

Usually ships in 2-4 days

0

22

Echo 90014508020

THUMBSCREW - 8×20

$5.49

$

Usually ships in 2-4 days

0

23

Echo 90056200005

NUT, LOCK M5

$1.99

$

In Stock, only 2 left!

0

24

Echo 69901152630

BRACKET, SHIELD

$9.49

$

Usually ships in 2-4 days

0

25

Echo 61040252130

GEAR CASE ASSY
(Superseded to 61040252131)

$283.99

$

Usually ships in 2-4 days

0

Echo 69901055330

NEW BLADE SHIELD
(Superseded to P021007590)

$72.99

$

In Stock, only 2 left!

0
