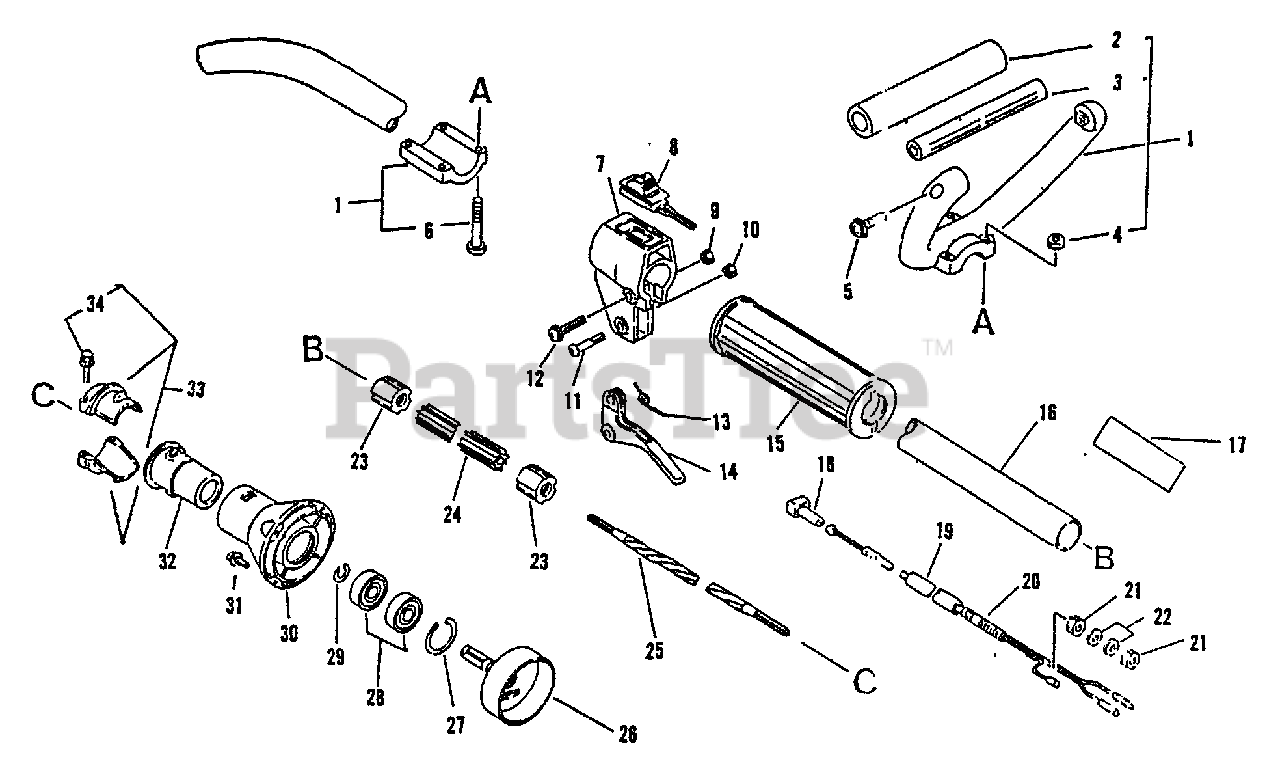

PE-2400 - Echo Edger (SN: 001001 - 008000) Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

Edger

Clutch Housing, Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

  • Title

1

Echo 35120151730

LOOP HANDLE ASSY
(Superseded to P021012410)

Note: Includes Items 2 - 6

$14.99

$

In Stock, only 2 left!

0

2

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

3

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

4

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 90024605030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

7

Echo 17802449230

BRACKET, THROTTLE CONTROL
(Superseded to Discontinued)

$

$

Not available

8

Echo 16341144430

IGNITION SWITCH ASSY
(Superseded to 16340049230)

$10.99

$

In Stock, only 2 left!

0

9

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

11

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 13

0

12

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

13

Echo 17804306930

SPRING, TRIGGER

$1.49

$

In Stock, only 4 left!

0

14

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.99

$

In Stock, Qty 20+

0

15

Echo 35101244730

GRIP, HANDLE
(Superseded to Discontinued)

$

$

Not available

16

Echo 61020652630

MAIN PIPE ASSY

Note: Includes Items 17, 23 & 24

$47.99

$

In Stock, only 2 left!

0

17

Echo 89016048030

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

18

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 6

0

19

Echo 17812740930

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

20

Echo 17800140930

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

22

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

23

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

24

Echo C507000260

LINER - FLEXIBLE
(Superseded to C507000430)

$30.99

$

Usually ships in 2-4 days

0

25

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$20.99

$

In Stock, only 2 left!

0

26

Echo 17500549230

DRUM, CLUTCH
(Superseded to 17500544730)

$

$

Not available

27

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

28

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

29

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

30

Echo 61022349230

CASE, CLUTCH - GRAY

$67.99

$

Usually ships in 2-4 days

0

31

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

32

Echo 61091027832

CUSHION

$9.49

$

In Stock, only 2 left!

0

33

Echo 61090327432

HOLDER KIT
(Superseded to P021013520)

Note: Includes ITEM 34

$11.99

$

Usually ships in 2-4 days

0

34

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 9

0
