PE-2400 - Echo Edger (SN: 001001 - 008000) Engine, Crankcase, Fan Housing, Cover Parts Diagram

Edger

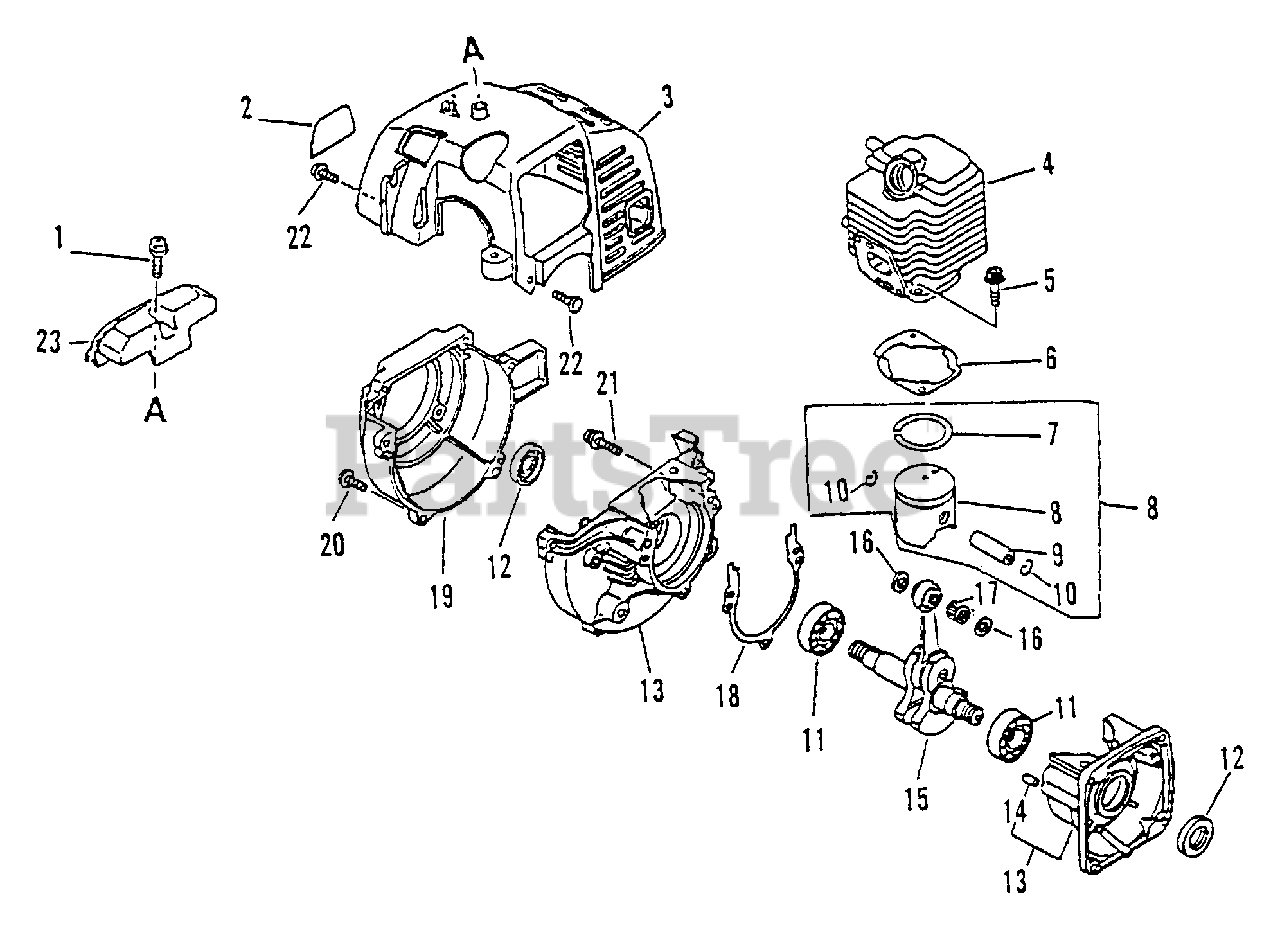

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

2

Echo 89011552630

LABEL, PE-2400

$1.99

$

Usually ships in 2-4 days

0

3

Echo 10151448730

COVER, ENGINE - GRAY
(Superseded to 10151448731)

$23.99

$

In Stock, only 1 left!

0

4

Echo 10101152130

CYLINDER
(Superseded to 10101109560)

$

$

Not available

5

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

6

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

Note: Included In GASKET KIT

$4.99

$

In Stock, Qty 7

0

7

Echo 10001121230

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

8

Echo 10000052130

PISTON KIT

Note: Includes Items 7, 9 & 10

$84.99

$

In Stock, only 1 left!

0

9

Echo 100013-11520

PIN, PISTON 8

$8.49

$

In Stock, only 2 left!

0

10

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

11

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

12

Echo 100212-42031

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

13

Echo 10020442030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes Items 11, 12, 14, 18 & 21

$157.99

$

Usually ships in 2-4 days

0

14

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

15

Echo 10010052130

CRANKSHAFT ASSY
(Superseded to 10010052131)

Note: Includes ITEM 17

$177.99

$

Usually ships in 2-4 days

0

16

Echo 100014-11520

WASHER, THRUST

$3.99

$

In Stock, only 2 left!

0

17

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

18

GASKET, CRANKCASE

Note: Use Kit 88900044631

$

$

Not available

19

Echo 10151149230

COVER, FAN - GRAY

$57.99

$

Usually ships in 2-4 days

0

20

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

21

Echo 900162-05028

BOLT 5×28

$2.49

$

In Stock, Qty 10

0

22

Echo 900238-04012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

23

Echo 15991244530

GUARD, TOP - BLACK

$7.99

$

In Stock, only 2 left!

0

Echo SB1024

SHORT BLOCK - SB1024
(Superseded to SB1027)

$

$

Not available
