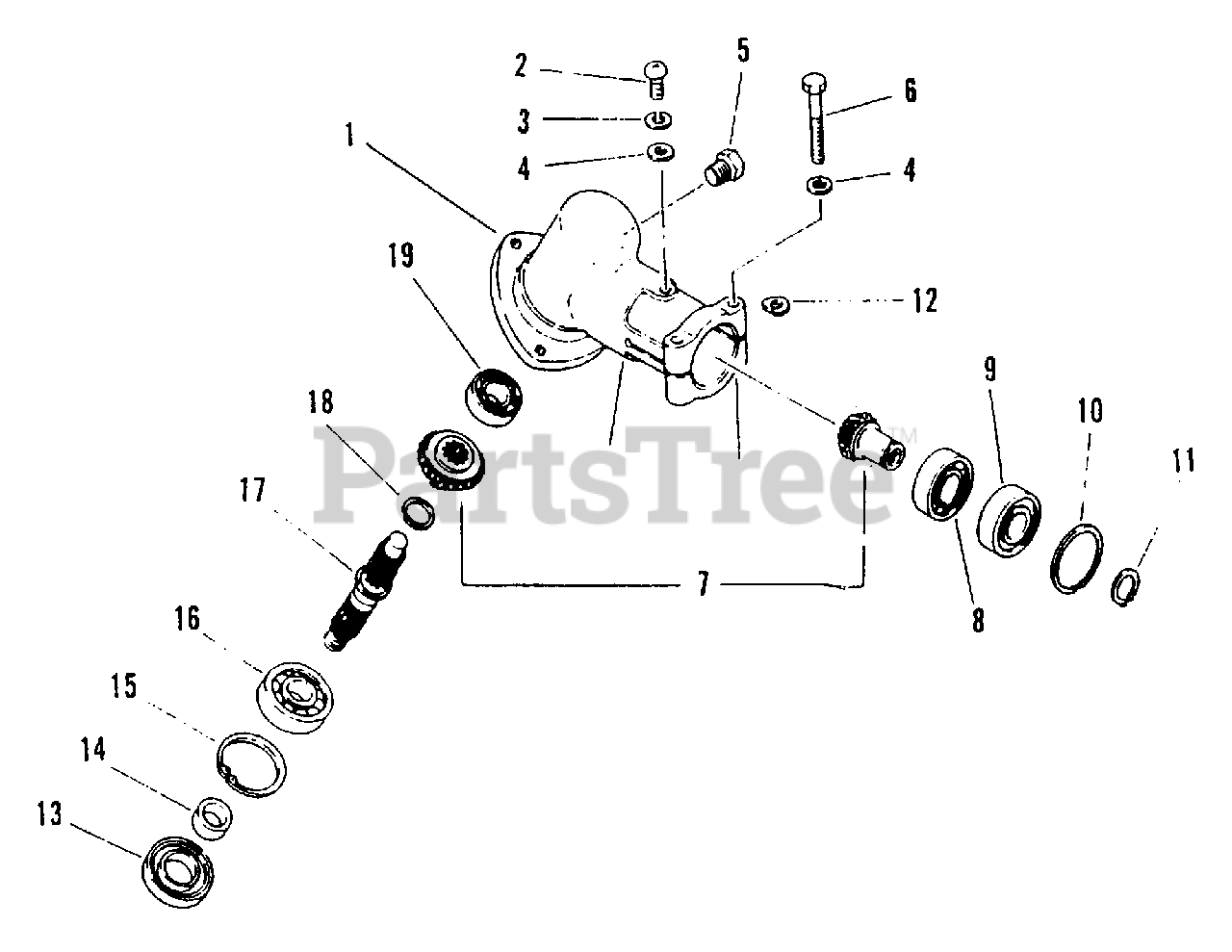

PE-2400 - Echo Edger (SN: 001001 - 008000) Gear Case Parts Diagram

Edger

Gear Case Parts Diagram

  • Title

Echo 61040252130

GEAR CASE ASSY
(Superseded to 61040252131)

Note: Includes ITEMS 1, 5, 7 - 11, 13 - 19

$283.99

$

Usually ships in 2-4 days

0

1

------------------

CASE, GEAR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

2

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

3

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

4

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 10

0

6

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 9

0

7

Echo 61030044830

GEAR SET - BEVEL

Note: Matched Set

$106.99

$

Usually ships in 2-4 days

0

8

Echo 90085506900

BEARING, BALL - 6900

$21.99

$

In Stock, only 2 left!

0

9

Echo 90085806900

BEARING, BALL - 6900Z

$27.99

$

In Stock, only 2 left!

0

10

Echo 90070200022

RING, RETAINING - 22

$2.49

$

In Stock, Qty 14

0

11

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 20+

0

12

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 20+

0

13

Echo 61041307130

SEAL, OIL

$6.99

$

In Stock, only 2 left!

0

14

Echo 61031507130

SPACER

$4.49

$

In Stock, only 2 left!

0

15

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 1 left!

0

16

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 2 left!

0

17

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

18

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

19

Echo 90080000609

BEARING, BALL - 609

$11.99

$

In Stock, Qty 5

0
