PE-2400 - Echo Edger (SN: 001001 - 008000) Intake, Exhaust, Air Cleaner Parts Diagram

Edger

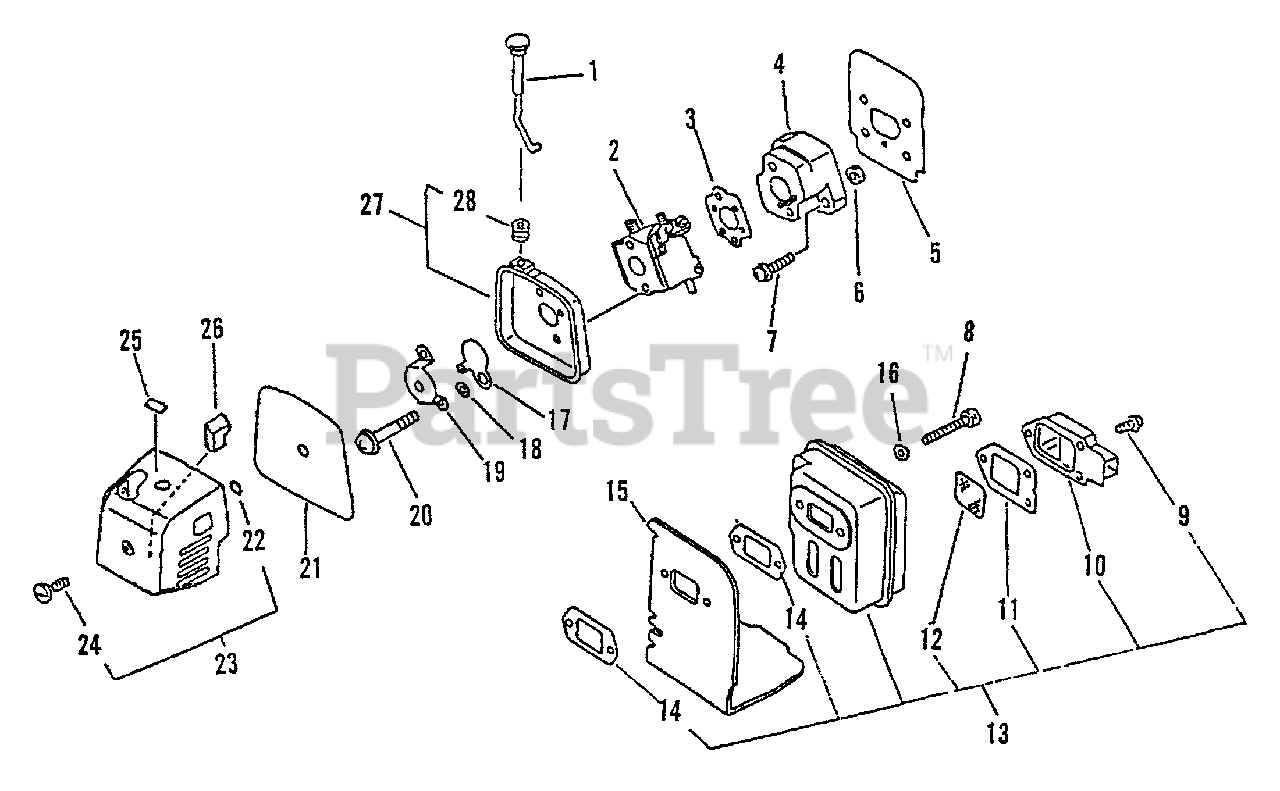

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 17851048830

ROD, CHOKE

$8.99

$

In Stock, only 2 left!

0

2

Echo 12520052130

CARBURETOR - C1U-K23
(Superseded to 12520052131)

$94.99

$

In Stock, Qty 9

0

3

Echo 130016-42031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

4

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 7

0

5

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 20+

0

6

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 5

0

8

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

9

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 16

0

10

Echo 145809-42030

GUIDE, EXHAUST - INNER

$8.99

$

Usually ships in 2-4 days

0

11

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, Qty 5

0

12

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

13

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: Includes Items 9 - 12 & 14

$55.99

$

In Stock, only 1 left!

0

14

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

15

Echo 14587144330

COVER, EXHAUST
(Superseded to 14587144331)

$5.99

$

In Stock, only 2 left!

0

16

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 17851504560

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 10

0

18

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 19

0

19

Echo 13041044730

CASE, AIR FILTER

$11.99

$

Usually ships in 2-4 days

0

20

Echo 90024205051

SCREW - 5×55

$

$

Currently unavailable

21

Echo 13031004560

FILTER, AIR

$5.99

$

In Stock, Qty 7

0

22

Echo 90072000004

O-RING

$1.99

$

In Stock, Qty 13

0

23

Echo 13030250630

AIR FILTER COVER ASSY

Note: Includes Items 22 & 24

$12.99

$

In Stock, only 3 left!

0

24

Echo 13041540630

SCREW

$3.49

$

In Stock, only 1 left!

0

25

Echo X506000070

LABEL, CHOKE

$0.99

$

In Stock, Qty 7

0

26

Echo 13033652130

PLUG

$2.99

$

Usually ships in 2-4 days

0

27

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

28

Echo 13030104560

CASE, AIR FILTER

Note: Includes ITEM 27

$10.99

$

In Stock, only 2 left!

0
