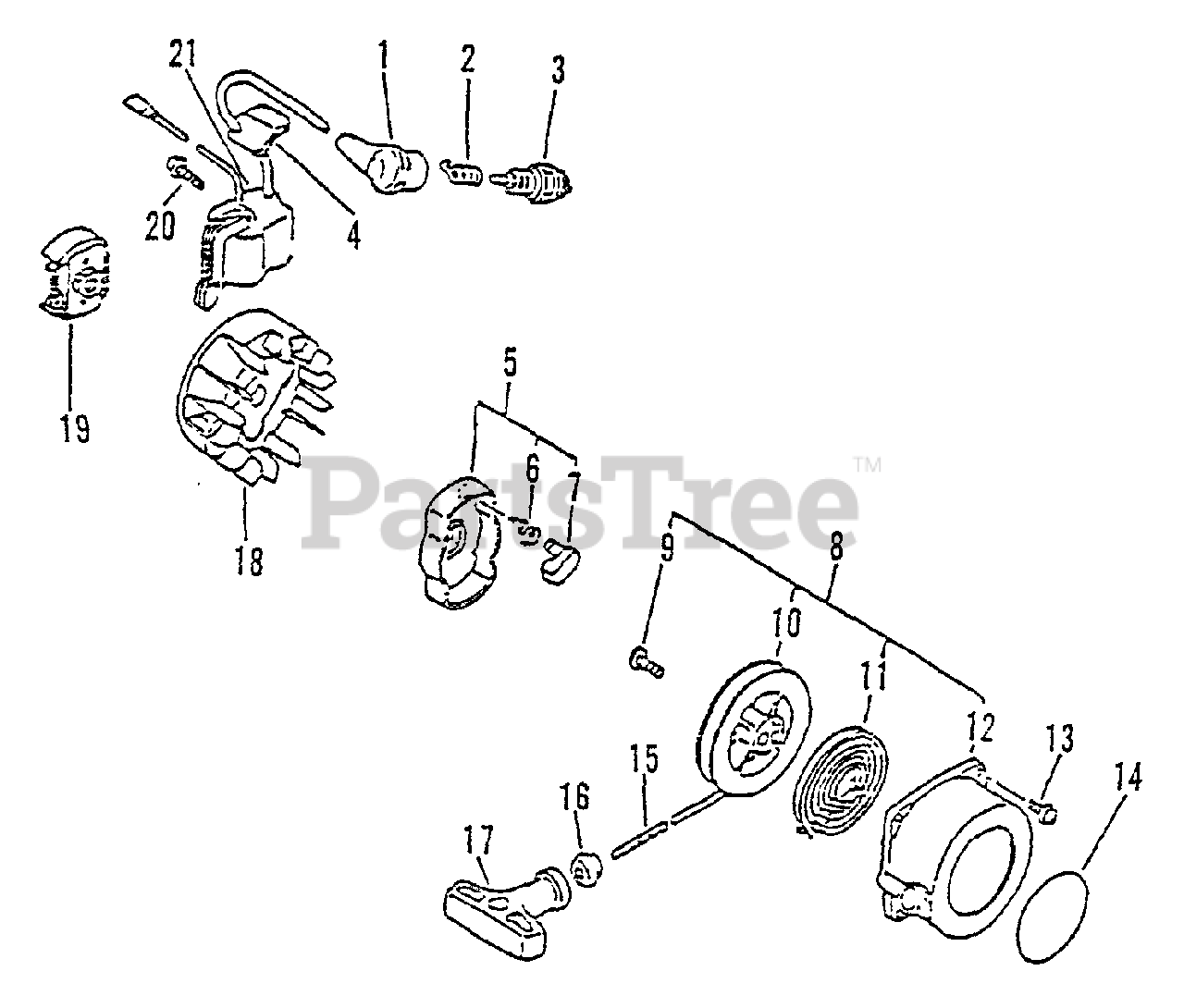

PE-2400 - Echo Edger (SN: 018100 - 040060) Clutch, Ignition, Starter Parts Diagram

Edger

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 2 left!

0

2

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 20+

0

3

Echo 99944500071

SPARK PLUG -- BPM-7Y

$

$

Not available

4

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 16

0

5

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: Includes ITEMS 6 & 7

$19.99

$

In Stock, only 4 left!

0

6

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 15

0

7

Echo 17721844330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

8

Echo 17720042031

STARTER ASSY
(Superseded to 17720042032)

Note: Includes ITEMS 9 - 12, 15 - 17

$58.99

$

In Stock, Qty 11

0

9

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 13

0

10

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$10.99

$

In Stock, Qty 9

0

11

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$11.99

$

In Stock, Qty 8

0

12

Echo 17723242032

CASE, STARTER

$24.99

$

In Stock, only 2 left!

0

13

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 12

0

14

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

15

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

16

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

17

Echo 17722805530

GRIP, STARTER
(Superseded to 17722806530)

$5.99

$

In Stock, Qty 7

0

18

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$126.99

$

Usually ships in 2-4 days

0

19

Echo 17500042031

CLUTCH ASSY
(Superseded to 17500056830)

$32.99

$

In Stock, only 2 left!

0

20

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

21

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0
