PE-2400 - Echo Edger (SN: 018100 - 040060) Gear Case, Blade, Shield, Tools Parts Diagram

Edger

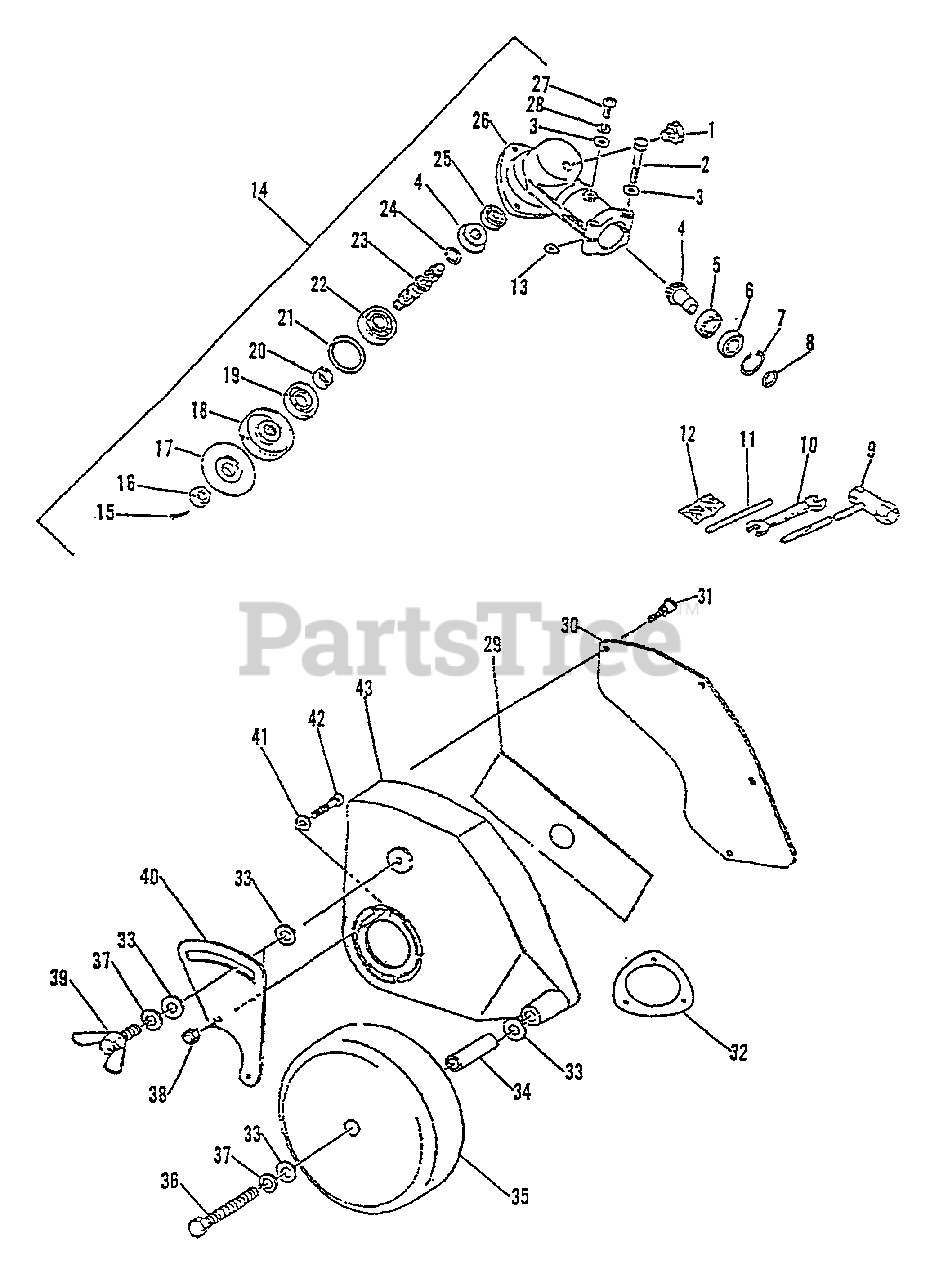

Gear Case, Blade, Shield, Tools Parts Diagram

  • Title

1

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 10

0

2

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 17

0

3

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 61030044830

GEAR SET - BEVEL

$98.99

$

Usually ships in 2-4 days

0

5

Echo 90085506900

BEARING, BALL - 6900

$20.99

$

In Stock, only 2 left!

0

6

Echo 90085806900

BEARING, BALL - 6900Z

$25.99

$

In Stock, only 3 left!

0

7

Echo 90070200022

RING, RETAINING - 22

$2.49

$

In Stock, Qty 15

0

8

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 9

0

9

Echo X602000020

T-WRENCH - 17X19mm

$3.99

$

In Stock, Qty 6

0

10

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 9

0

11

Echo 89751801131

LOCKING TOOL

$1.49

$

Usually ships in 2-4 days

0

12

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 4 left!

0

13

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 20+

0

14

Echo 61040252130

GEAR CASE ASSY
(Superseded to 61040252131)

Note: Includes ITEMS 1 - 8, 13, 15 - 28

$262.99

$

Usually ships in 2-4 days

0

15

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

16

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 20+

0

17

Echo C535000150

ADAPTOR, BLADE - LOWER

$10.99

$

In Stock, Qty 20+

0

18

Echo 61031307130

ADAPTOR, BLADE - UPPER
(Superseded to 61031307132)

$19.99

$

In Stock, only 4 left!

0

19

Echo 51041307130

SEAL, OIL

$

$

Currently unavailable

20

Echo 61031507130

SPACER

$4.49

$

In Stock, Qty 11

0

21

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 11

0

22

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 19

0

23

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$74.99

$

In Stock, only 4 left!

0

24

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

25

Echo 90080000609

BEARING, BALL - 609

$10.99

$

In Stock, Qty 7

0

26

Echo 61046027430

CASE, GEAR
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

27

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

28

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

29

Echo 69601552631

BLADE, EDGER

$

$

Currently unavailable

30

Echo 69901752630

COVER, SHIELD

$17.99

$

Usually ships in 2-4 days

0

31

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 20+

0

32

Echo C552000110

PLATE, SHIELD
(Superseded to C552000240)

$2.99

$

In Stock, Qty 12

0

33

Echo 90060200008

WASHER - 8

$0.99

$

In Stock, Qty 20+

0

34

Echo 30242452630

COLLAR - 12

$3.99

$

In Stock, Qty 20+

0

35

Echo 30241052630

WHEEL - 6X1.5
(Superseded to 30241052631)

$11.99

$

In Stock, Qty 11

0

36

Echo 90010008060

BOLT - 8X60

$3.49

$

Usually ships in 2-4 days

0

37

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

38

Echo 90056200005

LOCKNUT

$1.49

$

In Stock, only 3 left!

0

39

Echo 90014508020

THUMBSCREW

$4.99

$

Usually ships in 2-4 days

0

40

Echo 69901152630

BRACKET, SHIELD

$8.99

$

In Stock, only 1 left!

0

41

Echo 90060800005

WASHER - CONICAL

$1.99

$

Usually ships in 2-4 days

0

42

Echo 90010505025

SCREW - 5X25

$1.49

$

In Stock, only 3 left!

0

43

Echo 69901052631

SHIELD, DEBRIS
(Superseded to 69901052830)

Note: Refer to parts bulletin 93-06R1 and service bulletin 93-05 for retrofit

$22.99

$

In Stock, only 2 left!
