PE-2400 - Echo Edger (SN: 040061 - 999999) Carburetor -- C1U-K23A Parts Diagram

Edger

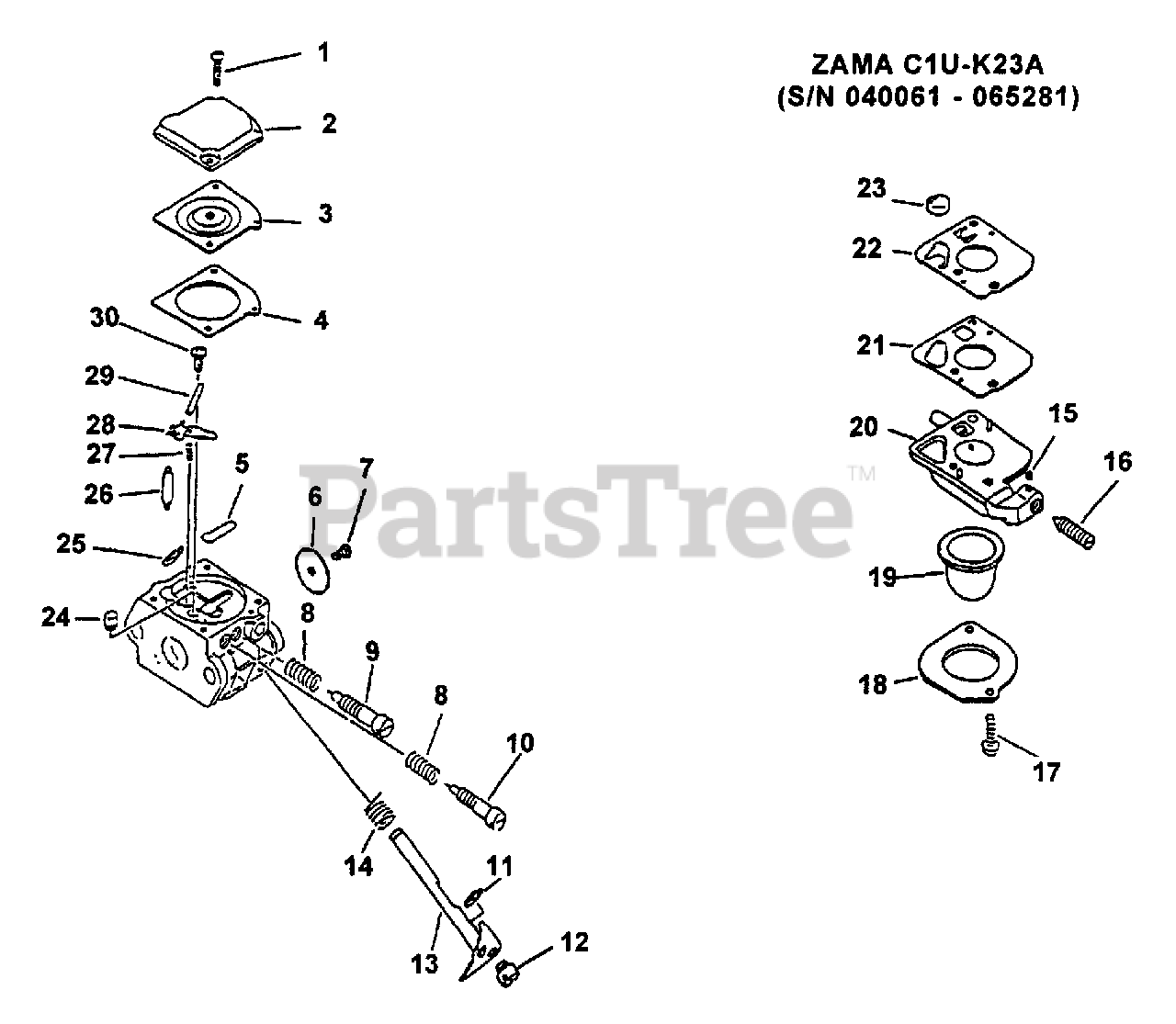

Carburetor -- C1U-K23A Parts Diagram

  • Title

Echo 12520052131

CARBURETOR - C1U-K23A
(Superseded to 12520013313)

Note: S/N 040061 - 065281, INCLUDES ITEMS 1 - 30

$94.99

$

In Stock, Qty 7

0

1

Echo 12534413931

SCREW

$2.99

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, DIAPHRAGM
(Superseded to 12534213210)

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM

Note: INCLUDED IN REBUILD KIT, P/N 12530051330 AND IN GASKET/DIAPHRAGM, KIT P/N 12530351030

$

$

Not available

4

GASKET, METERING

Note: INCLUDED IN REBUILD KIT, P/N 12530051330 AND IN GASKET/DIAPHRAGM KIT P/N 12530351030

$

$

Not available

5

PLUG, WELCH

Note: INCLUDED IN REBUILD KIT, P/N 12530051330

$

$

Not available

6

Echo 12531651230

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

7

Echo 12531451230

SCREW 3×4.5

$1.49

$

Usually ships in 2-4 days

0

8

Echo 125319-42030

SPRING, NEEDLE

$1.49

$

In Stock, only 2 left!

0

9

Echo 12532051230

NEEDLE, HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

10

Echo 125318-42030

NEEDLE, LOW SPEED
(Superseded to 12531851330)

$

$

Not available

11

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

12

Echo 125372-42030

SWIVEL

$5.49

$

Usually ships in 2-4 days

0

13

Echo 125317-42030

SHAFT, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

14

Echo 125313-42030

SPRING, THROTTLE RETURN

$1.49

$

In Stock, Qty 12

0

15

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

16

Echo 12533413930

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 2 left!

0

17

Echo 12531011610

SCREW

$1.99

$

In Stock, Qty 5

0

18

Echo 12536311610

RETAINER

$2.49

$

In Stock, Qty 14

0

19

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$7.49

$

In Stock, Qty 20+

0

20

Echo 12532411610

BODY ASSY, PURGE

$25.99

$

In Stock, only 3 left!

0

------------------

GASKET, PUMP

Note: INCLUDED IN REBUILD KIT, P/N 12530051330 AND IN GASKET/DIAPHRAGM KIT, P/N 12530351030

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: INCLUDED IN REBUILD KIT, P/N 12530051330 AND IN GASKET/DIAPHRAGM KIT, P/N 12530351030

$

$

Not available

23

STRAINER

Note: INCLUDED IN REBUILD KIT, P/N 12530051330

$

$

Not available

24

Echo 12537651030

NOZZLE, CHECK VALVE

$6.99

$

In Stock, only 1 left!

0

25

Echo 125327-15130

E-RING

$0.99

$

In Stock, Qty 5

0

26

VALVE, NEEDLE

Note: INCLUDED IN REBUILD KIT, P/N 12530051330

$

$

Not available

27

SPRING

Note: INCLUDED IN REBUILD KIT, P/N 12530051330

$

$

Not available

28

LEVER, METERING

Note: INCLUDED IN REBUILD KIT, P/N 12530051330

$

$

Not available

29

PIN

Note: INCLUDED IN REBUILD KIT, P/N 12530051330

$

$

Not available

30

Echo 125339-42030

SCREW

$0.99

$

In Stock, Qty 11

0

Echo 12530051330

REBUILD KIT

$20.99

$

In Stock, only 2 left!

0

Echo 12530351030

GASKET / DIAPHRAGM KIT

$22.99

$

In Stock, only 3 left!

0
