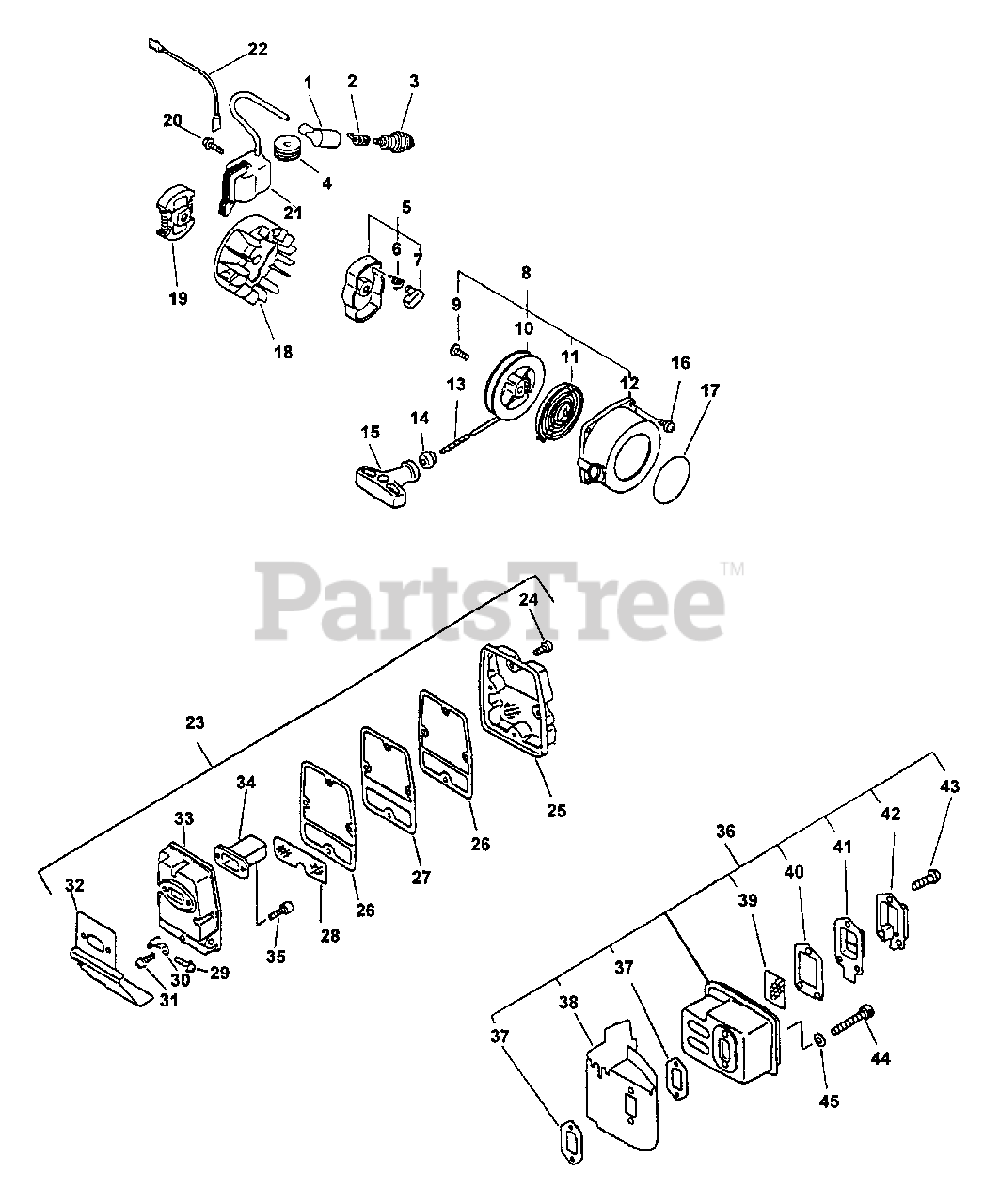

PE-2400 - Echo Edger (SN: 040061 - 999999) Clutch, Exhaust, Ignition, Starter Parts Diagram

Edger

Clutch, Exhaust, Ignition, Starter Parts Diagram

  • Title

1

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 11

0

2

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

3

Echo 99944500071

SPARK PLUG - BPM-7Y

$

$

Not available

4

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

5

Echo 177202-44330

PAWL ASSY, STARTER

Note: Includes ITEMS 6 & 7

$11.99

$

In Stock, Qty 9

0

6

Echo 17723412220

SPRING, RETURN

$4.99

$

In Stock, Qty 13

0

7

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

8

Echo 17720042032

STARTER ASSY
(Superseded to 17720042033)

Note: INCLUDES ITEMS 9 - 12, 15 - 17

$58.99

$

In Stock, Qty 10

0

9

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

10

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 7

0

11

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

12

Echo 17723242032

CASE, RECOIL STARTER

$24.99

$

In Stock, only 2 left!

0

13

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

14

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0

15

Echo 17722605530

ROPE, STARTER

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

16

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

17

Echo 17722805530

GRIP, STARTER
(Superseded to 17722806530)

$5.99

$

In Stock, Qty 5

0

18

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$126.99

$

Usually ships in 2-4 days

0

19

Echo 17500042031

CLUTCH ASSY
(Superseded to 17500056830)

Note: S/N 040061 - 069531

$32.99

$

In Stock, only 1 left!

0

19

Echo 17500049030

CLUTCH ASSY
(Superseded to 17500056830)

Note: S/N 069532 & UP

$32.99

$

In Stock, only 1 left!

0

20

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

21

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

Note: S/N 040061 - 065281

$

$

Not available

21

Echo 156601-52130

COIL, IGNITION
(Superseded to 15660152131)

Note: S/N 065282 & UP

$143.99

$

In Stock, only 1 left!

0

22

Echo 16202152830

LEAD
(Superseded to V485001080)

Note: S/N 065282 & UP

$4.49

$

In Stock, only 2 left!

0

23

Echo 14580052130

MUFFLER ASSY
(Superseded to Discontinued)

Note: S/N 040061 - 065281, INCLUDES ITEMS 24 - 34

$

$

Not available

24

Echo 90023805016

SCREW 5×16

Note: S/N 040061 - 065281

$0.99

$

In Stock, Qty 20+

0

25

Echo 14586151030

LID, MUFFLER
(Superseded to Discontinued)

Note: S/N 040061 - 065281

$

$

Not available

26

Echo 14586651030

GASKET, EXHAUST

Note: S/N 040061 - 065281

$6.49

$

Usually ships in 2-4 days

0

27

Echo 14588052130

PLATE, MUFFLER
(Superseded to Discontinued)

Note: S/N 040061 - 065281

$

$

Not available

28

Echo 14586251030

SCREEN, SPARK ARRESTER
(Superseded to Discontinued)

Note: S/N 040061 - 065281

$

$

Not available

29

Echo 90023805014

SCREW 5×14

Note: S/N 040061 - 065281

$0.99

$

In Stock, Qty 11

0

30

Echo 14571151030

BRACKET, MUFFLER

Note: S/N 040061 - 065281

$7.49

$

Usually ships in 2-4 days

0

31

Echo 90023805010

SCREW 5×10

Note: S/N 040061 - 065281

$0.99

$

In Stock, Qty 13

0

32

Echo 14551051030

GASKET, MUFFLER

Note: S/N 040061 - 065281

$4.49

$

Usually ships in 2-4 days

0

33

Echo 14581052130

MUFFLER

Note: S/N 040061 - 065281

$104.99

$

Usually ships in 2-4 days

0

34

Echo 14585952130

BAFFLE, MUFFLER

Note: S/N: 040061 - 065281

$12.99

$

Usually ships in 2-4 days

0

35

Echo 90010505018

BOLT M5×18

Note: S/N 040061 - 065281

$1.49

$

Usually ships in 2-4 days

0

36

Echo 14580052630

MUFFLER ASSY
(Superseded to 14580052631)

Note: S/N 065282 & UP, INCLUDES ITEMS 37 - 43

$

$

Not available

37

Echo V104000160

GASKET, EXHAUST

Note: S/N 065282 & UP, INCLUDED IN GASKET KIT P/N 88900005960

$2.49

$

In Stock, Qty 20+

0

38

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

Note: S/N 065282 & UP

$5.99

$

In Stock, only 2 left!

0

39

Echo 14586240630

SCREEN, SPARK ARRESTER

Note: S/N 065282 & UP

$2.49

$

In Stock, Qty 20+

0

40

Echo 145866-42031

GASKET, EXHAUST

Note: S/N 065282 & UP, INCLUDED IN GASKET KIT P/N 88900005960

$2.99

$

In Stock, only 2 left!

0

41

Echo 14587642030

GUIDE, EXHAUST

Note: S/N 065282 & UP

$4.99

$

In Stock, only 3 left!

0

42

Echo 14581852130

OUTLET, EXHAUST

Note: S/N 065282 & UP

$8.49

$

Usually ships in 2-4 days

0

43

Echo 90023804010

SCREW 4×10

Note: S/N 065282 & UP

$0.99

$

In Stock, Qty 6

0

44

Echo 900105-05055

BOLT 5×55

Note: S/N 065282 8 UP

$1.99

$

In Stock, Qty 20+

0

45

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

Note: S/N 065282 & UP

$0.99

$

In Stock, Qty 20+

0

Echo 99944400040

BULK ROPE - 3×1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

Note: S/N 065282 & UP

$

$

Not available
