PE-2400 - Echo Edger (SN: 040061 - 999999) Crankcase, Engine, Fan Case Parts Diagram

Edger

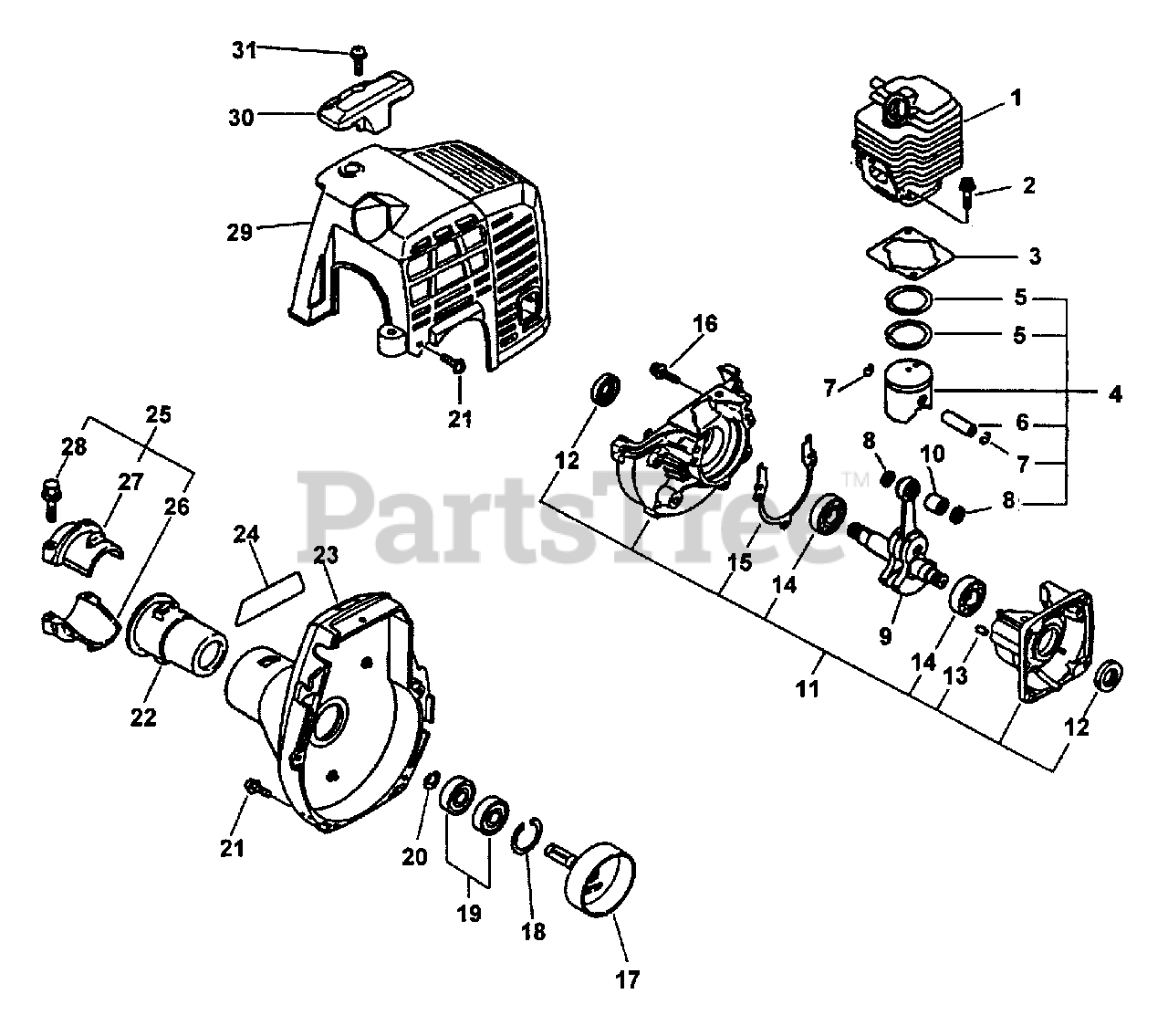

Crankcase, Engine, Fan Case Parts Diagram

  • Title

1

Echo 10101109560

CYLINDER
(Superseded to 10101108960)

$

$

Not available

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 5

0

3

Echo 10101044332

GASKET, CYLINDER

Note: USE GASKET KIT; S/N SEE BELOW

$4.99

$

In Stock, Qty 6

0

4

Echo 10000009562

PISTON KIT
(Superseded to 10000009563)

Note: INCLUDES ITEMS 5 - 8

$84.99

$

In Stock, only 1 left!

0

5

Echo 10001109560

RING, PISTON

$9.99

$

In Stock, only 2 left!

0

6

Echo 10001311520

PIN, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.99

$

In Stock, only 2 left!

0

9

Echo 10010052130

CRANKSHAFT ASSY
(Superseded to 10010052131)

Note: S/N 040061 - 065281, INCLUDES ITEM 10

$177.99

$

Usually ships in 2-4 days

0

9

Echo 10010044732

CRANKSHAFT ASSY
(Superseded to 10010044733)

Note: S/N 065282 & UP, INCLUDES ITEM 10

$186.99

$

Usually ships in 2-4 days

0

10

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

11

Echo 10020451030

CRANKCASE KIT
(Superseded to 10020451031)

Note: Includes ITEMS 12-16

$157.99

$

Usually ships in 2-4 days

0

12

Echo 10021242031

SEAL, OIL

$7.99

$

In Stock, Qty 14

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, only 4 left!

0

14

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 2 left!

0

15

------------------

GASKET, CRANKCASE

Note: USE GASKET KIT; S/N SEE BELOW; FOR IMPROVED SEALING REFER TO SERVICE BULLETIN 93-04 (FRAMES A07 & A08)

$

$

Not available

16

Echo 90016205028

SCREW - 5X28

$2.49

$

In Stock, Qty 10

0

17

Echo 17500548930

DRUM, CLUTCH
(Superseded to 17500548931)

$16.99

$

In Stock, only 4 left!

0

18

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

19

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$7.49

$

In Stock, Qty 20+

0

20

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

21

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 7

0

22

Echo 61091027832

CUSHION

Note: S/N 001001 - 051958

$9.49

$

In Stock, only 2 left!

0

22

Echo 61091055230

CUSHION

Note: S/N 051959 & UP

$8.49

$

In Stock, only 2 left!

0

23

Echo 10150352130

FAN CASE ASSY
(Superseded to 10150452130)

Note: S/N 001001 - 051958

$

$

Not available

23

Echo 10150352131

CASE, FAN

Note: S/N 051959 & UP

$78.99

$

Usually ships in 2-4 days

0

24

Echo 89011552631

LABEL - MODEL PE-2400
(Superseded to Discontinued)

$

$

Not available

25

Echo 61090327432

HOLDER KIT
(Superseded to P021013520)

Note: INCLUDES ITEMS 26 - 28 (S/N 001001 - 051958)

$11.99

$

Usually ships in 2-4 days

0

25

Echo 61090355230

MAIN PIPE CLAMP KIT

Note: INCLUDES ITEMS 26 - 28 (S/N 051959 & UP)

$21.99

$

Usually ships in 2-4 days

0

26

Echo 61092327432

CLAMP, MAIN PIPE

Note: S/N 001001 - 051958

$7.49

$

Usually ships in 2-4 days

0

26

Echo 61092355230

CLAMP, MAIN PIPE - LOWER

Note: S/N 051959 & UP

$9.49

$

Usually ships in 2-4 days

0

27

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

28

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 9

0

29

Echo 10151452630

COVER, ENGINE
(Superseded to Discontinued)

Note: S/N 040061 - 065281

$

$

Not available

29

Echo 10151448930

COVER, ENGINE

Note: S/N 065282 & UP

$14.99

$

In Stock, only 2 left!

0

30

Echo 15991254130

GUARD - TOP

$9.49

$

In Stock, only 3 left!

0

31

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

Echo SB1024

SHORT BLOCK -- SB1024
(Superseded to SB1027)

Note: S/N: 040061-465281

$

$

Not available

Echo SB1027

SHORT BLOCK -- SB1027
(Superseded to Discontinued)

Note: S/N: 065282 & UP

$

$

Not available

Echo 88900051030

GASKET KIT

Note: S/N 040061-065281; INCLUDES THE FOLLOWING ITEMS

$25.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 6

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 6

0

Echo 14586651030

GASKET, EXHAUST

$6.49

$

Usually ships in 2-4 days

0

Echo 14551051030

GASKET, EXHAUST

$4.49

$

Usually ships in 2-4 days

0

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

Note: S/N 065282 & UP; INCLUDES THE FOLLOWING ITEMS

$

$

Not available

Echo 10101044332

GASKET, CYLINDER

$4.99

$

In Stock, Qty 6

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 6

0

Echo 13001005960

GASKET, INTAKE

$1.99

$

In Stock, Qty 7

0

Echo 14586642031

GASKET, EXHAUST

$2.99

$

In Stock, only 1 left!

0

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo 61041401260

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 11

0
