PE-2400 - Echo Edger (SN: 040061 - 999999) Driveshaft, Handles, Throttle, Stop Switch Parts Diagram

Edger

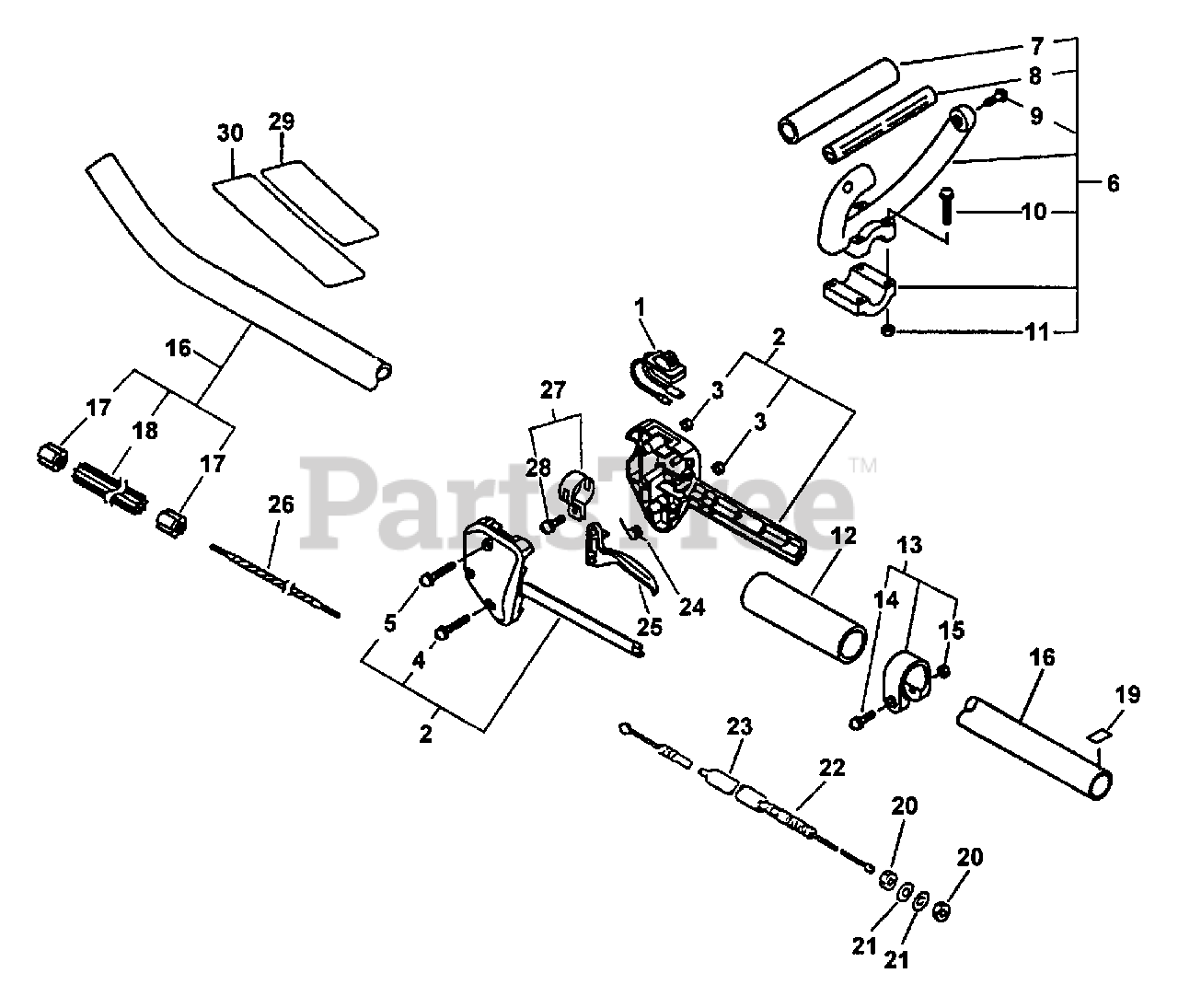

Driveshaft, Handles, Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 16340049230

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$10.99

$

In Stock, only 2 left!

0

2

Echo 17800352130

CONTROL HANDLE KIT

Note: INCLUDES ITEMS 3 - 5

$5.99

$

In Stock, only 3 left!

0

3

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

5

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

6

Echo 35120152130

LOOP HANDLE ASSY

Note: INCLUDES ITEMS 7-11

$78.99

$

Usually ships in 2-4 days

0

7

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

8

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

9

Echo 90024605030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90024206035

SCREW - 6X35

$1.49

$

Usually ships in 2-4 days

0

11

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

12

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 19

0

13

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 14-15

$11.99

$

In Stock, only 2 left!

0

14

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

15

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 61020652630

MAIN PIPE ASSY

Note: Includes ITEMS 17-18

$47.99

$

In Stock, only 2 left!

0

17

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

18

Echo C507000260

LINER - FLEXIBLE
(Superseded to C507000430)

$30.99

$

Usually ships in 2-4 days

0

19

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 14

0

20

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

21

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

22

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

23

Echo 17812752130

TUBE
(Superseded to 17812750330)

$1.49

$

In Stock, Qty 8

0

24

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

25

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

26

Echo 61001344730

DRIVESHAFT - FLEXIBLE
(Superseded to C506000390)

$20.99

$

In Stock, only 3 left!

0

27

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 28

$11.99

$

In Stock, only 3 left!

0

28

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

29

Echo 89016048030

LABEL - CAUTION

$1.49

$

Usually ships in 2-4 days

0

30

Echo 89016052630

LABEL - CAUTION

$2.49

$

Usually ships in 2-4 days

0
