PE-2400 - Echo Edger (SN: 040061 - 999999) Gearcase, Shield, Tools Parts Diagram

Edger

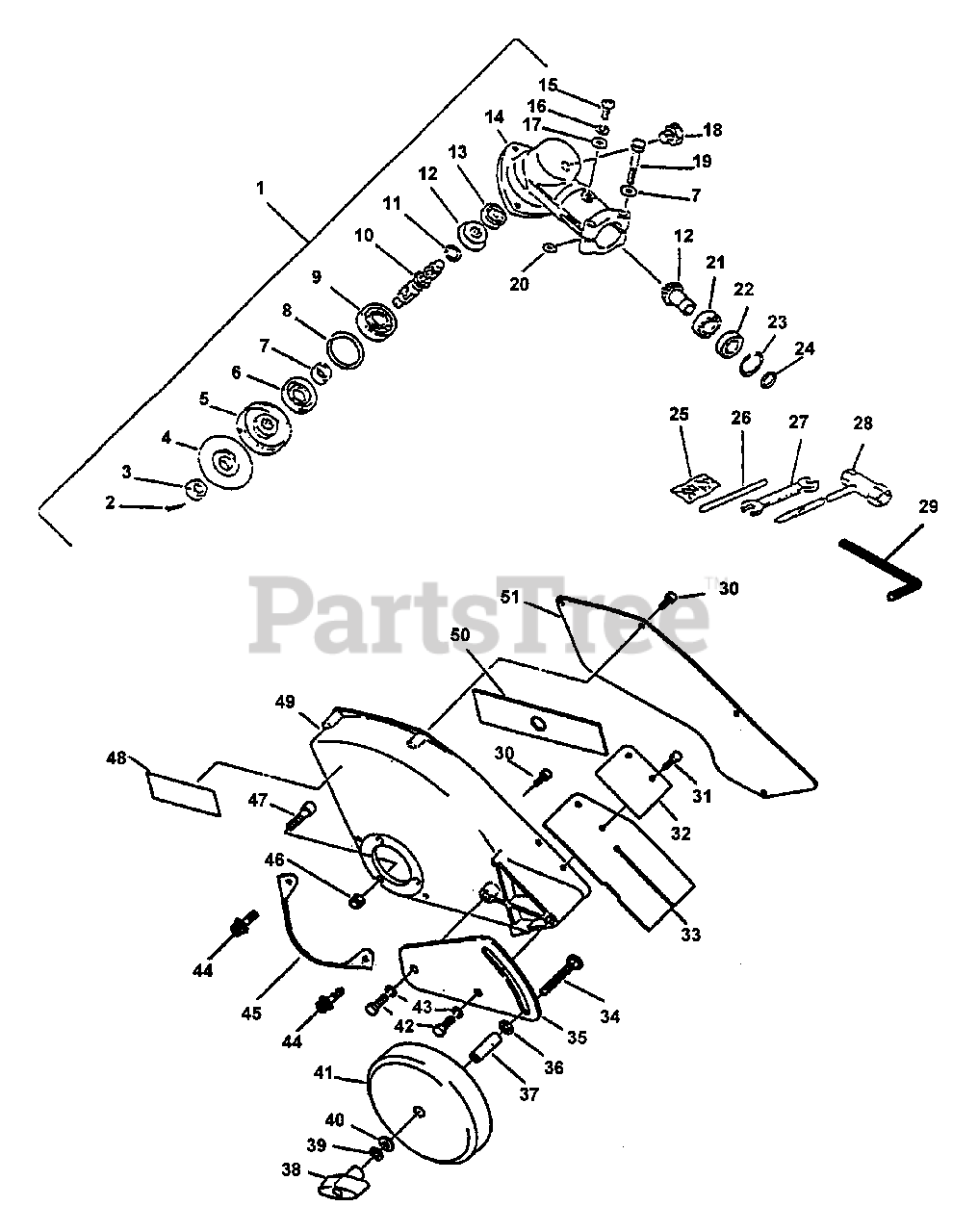

Gearcase, Shield, Tools Parts Diagram

  • Title

1

Echo 61040252130

GEAR CASE ASSY
(Superseded to 61040252131)

Note: INCLUDES ITEMS 1-8, 13, 15-28

$283.99

$

Usually ships in 2-4 days

0

2

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

3

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

4

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

5

Echo 61031307130

PLATE, ADAPTER - UPPER
(Superseded to 61031307132)

$20.99

$

In Stock, only 3 left!

0

6

Echo 61041307130

SEAL, OIL 22

$6.99

$

In Stock, only 1 left!

0

7

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 1 left!

0

8

Echo 90040200032

RING, RETAINING - 32

$

$

Currently unavailable

9

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

10

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

11

Echo 90040600010

RING, RETAINING - 10

$

$

Currently unavailable

12

Echo 61030044830

GEAR SET

Note: 1:4:1 RATIO GEAR SET WILL RETROFIT ALL PE-2400 AND PE-2201A GEAR BOX ASSEMBLIES

$106.99

$

Usually ships in 2-4 days

0

12

Echo 61030052630

GEAR SET

Note: 1:5:7 RATIO, S/N 043563 & UP GEAR SET WILL RETROFIT ALL PE-2400 AND PE-2201A GEAR BOX ASSEMBLIES.

$122.99

$

Usually ships in 2-4 days

0

13

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

14

Echo 61046027430

HOUSING, GEAR CASE
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

15

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

16

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

17

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

19

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

20

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

21

Echo 90085506900

BEARING, BALL 6900

$21.99

$

In Stock, only 2 left!

0

22

Echo 90085806900

BEARING, BALL 6900Z

$27.99

$

In Stock, only 2 left!

0

23

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 13

0

24

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 20+

0

25

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0

26

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

27

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

28

Echo X602000020

T-WRENCH 17x-19 L200

$4.49

$

In Stock, Qty 7

0

29

Echo 89561203430

WRENCH, ALLEN 3 MM
(Superseded to X605000090)

$0.99

$

In Stock, only 2 left!

0

30

Echo 90016204010

BOLT 4×10

$1.49

$

In Stock, Qty 20+

0

31

Echo 90016204014

BOLT 4×14

Note: S/N 040061 - 076671

$1.49

$

In Stock, Qty 18

0

31

Echo 90008000200

SCREW

Note: S/N 076672 & UP

$0.99

$

Usually ships in 2-4 days

0

32

Echo 69901355330

PLATE, FLAP

$4.49

$

Usually ships in 2-4 days

0

33

Echo 69901755330

FLAP, DEBRIS

$14.99

$

In Stock, only 2 left!

0

34

Echo 61025055330

BOLT 5/16"-18×2-1/2"

$2.49

$

In Stock, Qty 20+

0

35

Echo 30202955330

BRACKET, WHEEL
(Superseded to 30202955331)

$9.49

$

In Stock, only 3 left!

0

36

Echo 90060200010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 15

0

37

Echo 30242452630

COLLAR 12

$3.99

$

In Stock, Qty 19

0

38

Echo 17811355330

KNOB, FASTENER
(Superseded to V299000670)

$4.49

$

In Stock, Qty 20+

0

39

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

40

Echo 900602-00008

WASHER 8

$0.99

$

In Stock, Qty 20+

0

41

Echo C730000030

WHEEL
(Superseded to C730000120)

$12.99

$

In Stock, only 4 left!

0

42

Echo 90010008014

BOLT 8×14

Note: S/N 040061 - 076671

$0.99

$

In Stock, Qty 20+

0

42

Echo 90008000100

BOLT 8

Note: S/N 076672 & UP

$1.99

$

Usually ships in 2-4 days

0

43

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

44

Echo 90016204012

BOLT 4×12

Note: S/N 040061 - 076671

$1.49

$

In Stock, Qty 20+

0

44

Echo 90008000300

SCREW 4

Note: S/N 076672 & UP

$0.99

$

In Stock, Qty 5

0

45

Echo 69902552630

GUARD, SHIELD

$3.99

$

In Stock, Qty 12

0

46

Echo 90056200005

NUT, LOCK M5

$1.99

$

In Stock, only 2 left!

0

47

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, only 3 left!

0

48

Echo 89016052630

LABEL, CAUTION

$2.49

$

Usually ships in 2-4 days

0

49

Echo 69901055330

NEW BLADE SHIELD
(Superseded to P021007590)

Note: S/N 040061 - 076671

$72.99

$

In Stock, only 2 left!

0

49

Echo 69901052830

SHIELD, DEBRIS

Note: S/N 076672 & UP

$24.99

$

In Stock, only 1 left!

0

50

Echo 69601552632

BLADE - 2 PK

$11.99

$

In Stock, Qty 20+

0

51

Echo 69901752630

SHIELD, DEBRIS

Note: S/N 040061 - 076671

$18.99

$

Usually ships in 2-4 days

0
