PE-2400 - Echo Edger (SN: 040061 - 999999) Intake, Air Cleaner, Fuel System Parts Diagram

Edger

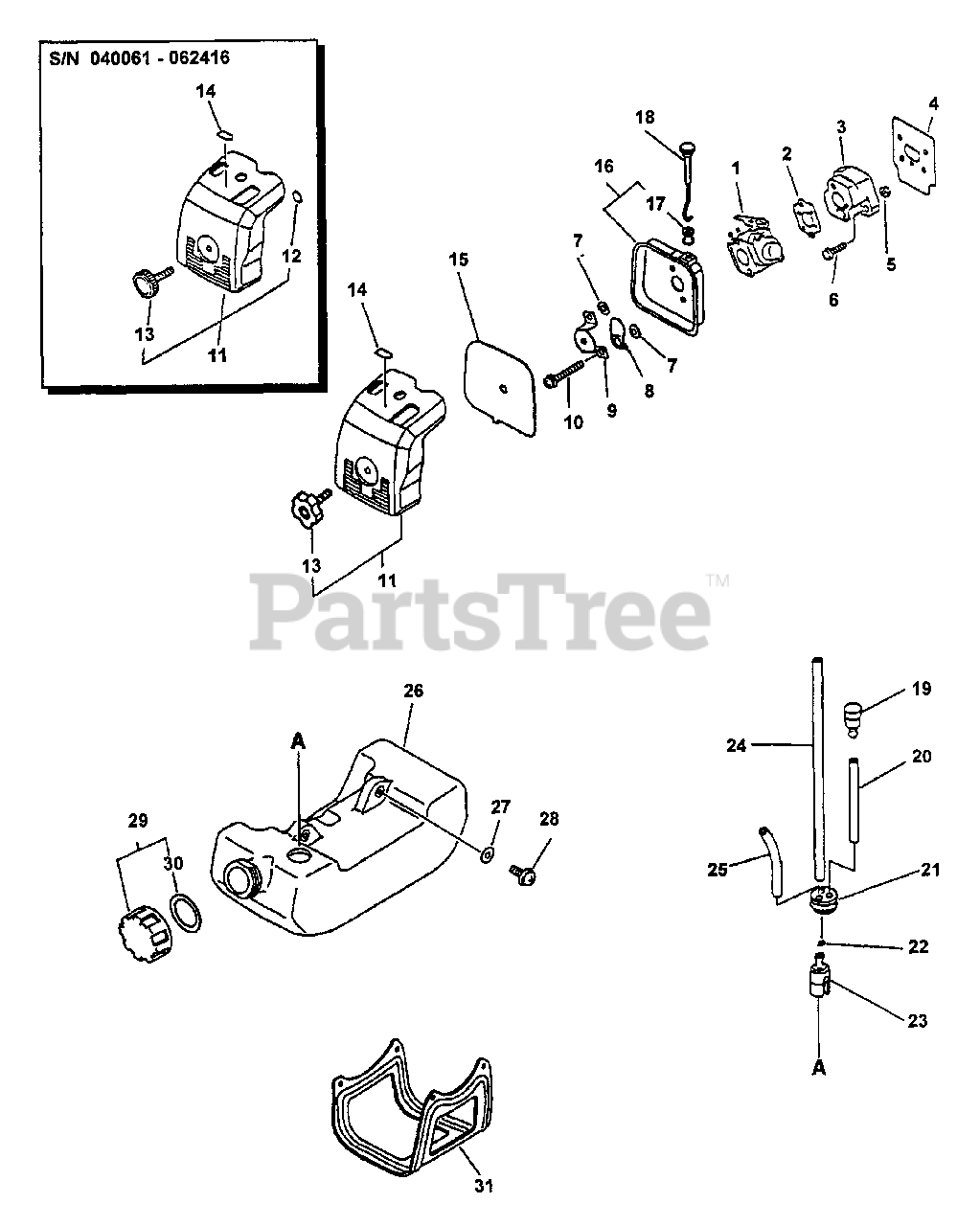

Intake, Air Cleaner, Fuel System Parts Diagram

  • Title

1

Echo 12520052131

CARBURETOR - C1U-K23A
(Superseded to 12520013313)

Note: S/N 040061 - 065281

$94.99

$

In Stock, Qty 7

0

1

Echo 12300052131

CARBURETOR - WT-424A
(Superseded to 12300052132)

Note: S/N 065282 & UP

$113.99

$

In Stock, only 1 left!

0

2

Echo 130016-42031

GASKET, INTAKE

Note: S/N 040061 - 065281

$1.49

$

In Stock, Qty 20+

0

2

Echo 13001005960

GASKET, CARBURETOR

Note: S/N 065282 & UP

$1.99

$

In Stock, Qty 6

0

3

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

4

Echo V103000490

HEAT SHIELD, INTAKE
(Superseded to V103001360)

$2.99

$

In Stock, Qty 10

0

5

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

6

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

7

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

8

Echo 17851505060

SHUTTER, CHOKE

$3.49

$

In Stock, only 2 left!

0

9

Echo 12901152130

PLATE, PREVENT
(Superseded to 12901152131)

$6.49

$

In Stock, only 1 left!

0

10

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, only 3 left!

0

11

Echo 13030251730

AIR FILTER COVER ASSY
(Superseded to 13030251731)

Note: , INCLUDES ITEMS 12 & 13 S/N: 040061 - 062416

$17.99

$

In Stock, only 2 left!

0

11

Echo 13030252130

AIR FILTER COVER ASSY
(Superseded to 13030252131)

Note: Includes ITEM 13

$17.99

$

In Stock, only 2 left!

0

12

Echo 90072000003

O-RING 3

Note: S/N 040061 - 062416

$1.49

$

In Stock, only 2 left!

0

13

Echo 13040616331

THUMBSCREW

Note: S/N 040061 - 062416

$6.49

$

Usually ships in 2-4 days

0

13

Echo 13040652131

THUMBSCREW

Note: S/N 062417 & UP

$6.49

$

In Stock, Qty 20+

0

14

Echo 89012151730

LABEL - CHOKE
(Superseded to 89012152130)

$

$

Not available

15

Echo 13031051830

FILTER, HEAVY-DUTY AIR

$8.49

$

In Stock, Qty 9

0

16

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

17

Echo 17881005230

GROMMET, CHOKE

$2.49

$

In Stock, only 3 left!

0

18

Echo 17851051730

ROD, CHOKE

$7.99

$

In Stock, only 4 left!

0

19

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

20

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

21

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

22

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 7

0

23

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

24

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

25

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 10

0

26

Echo 13100544330

TANK, FUEL
(Superseded to 13100544331)

$21.99

$

In Stock, Qty 6

0

27

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

28

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

29

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: INCLUDES ITEM 30

$5.49

$

In Stock, only 2 left!

0

30

Echo 13101640930

GASKET, FUEL CAP

Note: S/N 040061 - 069531

$3.49

$

In Stock, Qty 8

0

30

Echo 131016-55830

GASKET, FUEL CAP

Note: S/N 069532 & UP

$

$

Not available

31

Echo 305110-42030

GUARD, FUEL TANK

$

$

Not available
