PE-2400 - Echo Edger (SN: 040061 - 999999) Intake, Air Cleaner, Fuel System Parts Diagram

Edger

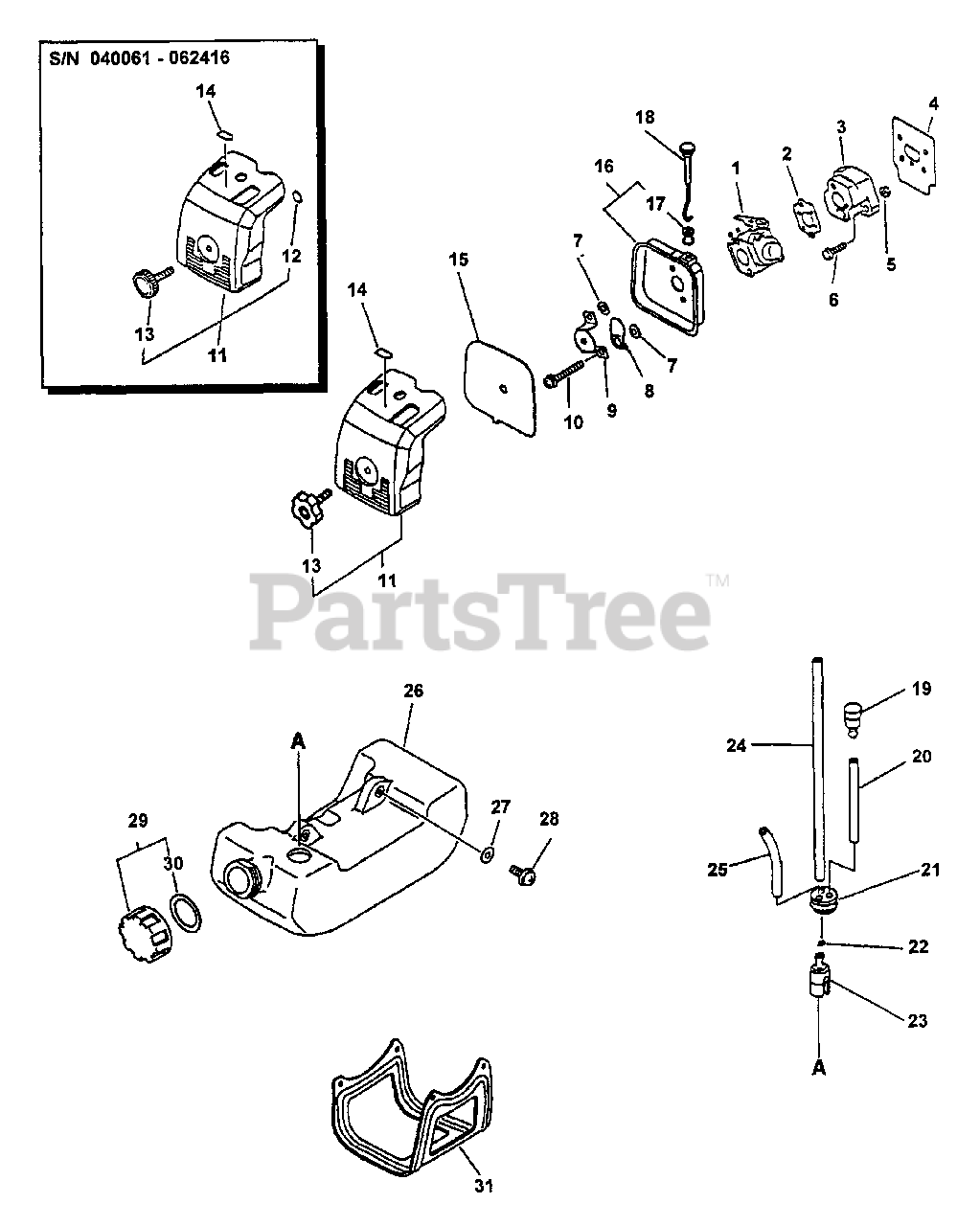

Intake, Air Cleaner, Fuel System Parts Diagram

  • Title

1

Echo 12520052131

CARBURETOR C1U-K23A
(Superseded to 12520013313)

Note: S/N 040061 - 065281

$78.99

$

In Stock, Qty 20+

0

1

Echo 12300052131

CARBURETOR WT-424A
(Superseded to 12300052132)

Note: S/N 065282 & UP

$94.99

$

In Stock, only 2 left!

0

2

Echo 13001642031

GASKET, INTAKE

Note: S/N 040061 - 065281

$1.49

$

In Stock, Qty 20+

0

2

Echo 13001005960

GASKET, INTAKE

Note: S/N 065282 & UP

$1.99

$

In Stock, Qty 11

0

3

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, Qty 16

0

4

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 20+

0

5

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

7

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 17851505060

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 5

0

9

Echo 12901152130

PLATE, PREVENT
(Superseded to 12901152131)

$5.49

$

In Stock, only 4 left!

0

10

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 8

0

11

Echo 13030251730

AIR FILTER COVER ASSY
(Superseded to 13030251731)

Note: , INCLUDES ITEMS 12 & 13

$15.99

$

In Stock, Qty 8

0

11

Echo 13030252130

AIR FILTER COVER ASSY
(Superseded to 13030252131)

Note: Includes ITEM 13

$15.99

$

In Stock, Qty 8

0

12

Echo 90072000003

O-RING - 3

Note: S/N 040061 - 062416

$1.49

$

In Stock, Qty 13

0

13

Echo 13040616331

THUMBSCREW

Note: S/N 040061 - 062416

$5.49

$

In Stock, only 1 left!

0

13

Echo 13040652131

THUMBSCREW

Note: S/N 062417 & UP

$5.49

$

In Stock, Qty 20+

0

14

Echo 89012151730

LABEL - CHOKE
(Superseded to 89012152130)

$

$

Not available

15

Echo 13031051830

FILTER, AIR - HEAVY DUTY

$7.49

$

In Stock, Qty 20+

0

16

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

17

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 16

0

18

Echo 17851051730

ROD, CHOKE

$4.99

$

In Stock, only 1 left!

0

19

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 20+

0

20

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

21

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

22

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

23

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

24

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 8

0

25

Echo 13201056330

PIPE - 3X6X90 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.99

$

In Stock, Qty 20+

0

26

Echo 13100544330

TANK, FUEL
(Superseded to 13100544331)

$20.99

$

In Stock, Qty 14

0

27

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

28

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

29

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: INCLUDES ITEM 30

$4.49

$

In Stock, Qty 5

0

30

Echo 13101640930

GASKET, CAP

Note: S/N 040061 - 069531

$2.99

$

In Stock, Qty 20+

0

30

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

31

Echo 30511042030

GUARD, FUEL TANK
(Superseded to Discontinued)

$

$

Not available
