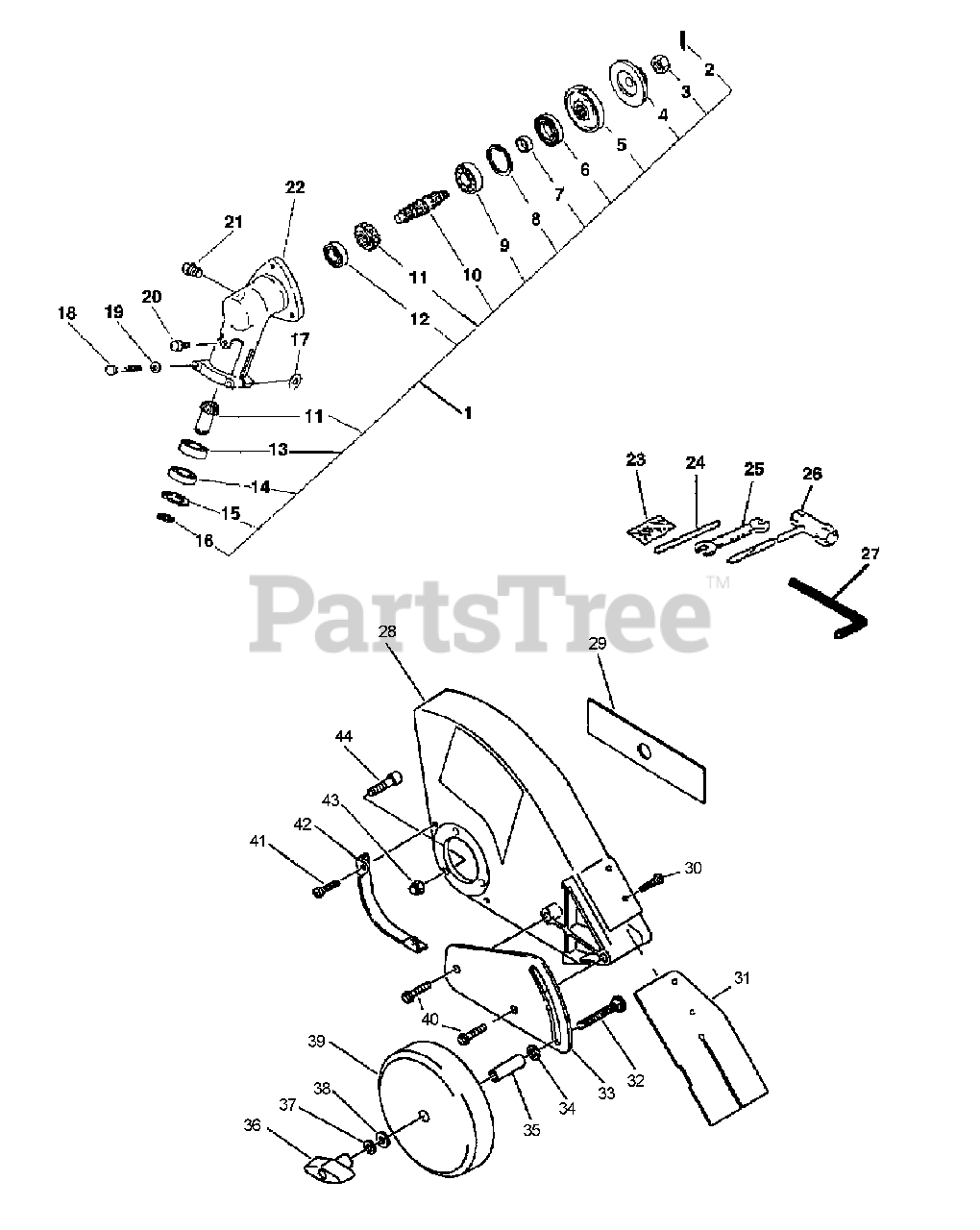

PE-2400 - Echo Edger (Type 1E) Gearcase, Shield, Tools Parts Diagram

Edger (Type 1E)

Gearcase, Shield, Tools Parts Diagram

  • Title

1

Echo 61040252130

GEAR CASE ASSY
(Superseded to 61040252131)

Note: INCLUDES ITEMS 2 - 22

$283.99

$

Usually ships in 2-4 days

0

2

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

3

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.99

$

In Stock, Qty 20+

0

4

Echo C535000150

ADAPTOR, BLADE - LOWER

$10.99

$

In Stock, Qty 12

0

5

Echo 61031307130

ADAPTOR, BLADE - UPPER
(Superseded to 61031307132)

$20.99

$

In Stock, only 3 left!

0

6

Echo 61041307130

SEAL, OIL

$6.99

$

In Stock, only 1 left!

0

7

Echo 61031507130

SPACER

$4.49

$

In Stock, only 2 left!

0

8

Echo 90040200032

RING, RETAINING - 32

$

$

Currently unavailable

9

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

10

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

11

Echo 61030052630

GEAR SET - BEVEL

Note: 1:5:7 RATIO

$122.99

$

Usually ships in 2-4 days

0

12

Echo 90080000609

BEARING, BALL - 609

$11.99

$

In Stock, Qty 5

0

13

Echo 90085506900

BEARING, BALL - 6900

$21.99

$

In Stock, only 2 left!

0

14

Echo 90085806900

BEARING, BALL - 6900Z

$27.99

$

In Stock, only 2 left!

0

15

Echo 90070200022

RING, RETAINING - 22

$2.49

$

In Stock, Qty 14

0

16

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 20+

0

17

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 20+

0

18

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

19

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 9

0

20

Echo 90010005008

BOLT - 5X8

$0.99

$

Usually ships in 2-4 days

0

21

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

22

Echo 61046027430

CASE, GEAR
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

23

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 3 left!

0

24

Echo 89751801131

LOCKING TOOL

$

$

Not available

25

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 6

0

26

Echo X602000020

T-WRENCH - 17X19mm

$4.49

$

In Stock, Qty 7

0

27

Echo 89561203430

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 3 left!

0

28

Echo 69901052830

SHIELD, DEBRIS

$24.99

$

In Stock, only 1 left!

0

29

Echo 69601552632

BLADE, EDGER

$11.99

$

In Stock, only 2 left!

0

30

Echo 90008000200

SCREW - 3

$0.99

$

Usually ships in 2-4 days

0

31

Echo 69901755330

FLAP, DEBRIS

$14.99

$

In Stock, only 1 left!

0

32

Echo 61025055330

BOLT - CARRIAGE

$2.49

$

In Stock, Qty 20+

0

33

Echo 30202955330

BRACKET, WHEEL
(Superseded to 30202955331)

$9.49

$

In Stock, only 3 left!

0

34

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

35

Echo 30242452630

COLLAR - 12

$3.99

$

In Stock, Qty 20+

0

36

Echo 17811355330

WINGNUT - 5/16-18
(Superseded to V299000670)

$4.49

$

In Stock, Qty 20+

0

37

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

38

Echo 90060200008

WASHER - 8

$0.99

$

In Stock, Qty 20+

0

39

Echo C730000030

WHEEL - 6X1.5
(Superseded to C730000120)

$12.99

$

In Stock, Qty 14

0

40

Echo 90008000100

BOLT - 8

$1.99

$

Usually ships in 2-4 days

0

41

Echo 90008000300

SCREW - 4X16

$0.99

$

In Stock, Qty 5

0

42

Echo 69902552630

GUARD

$3.99

$

In Stock, Qty 14

0

43

Echo 90056250005

LOCKNUT - 5

$1.49

$

In Stock, Qty 5

0

44

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0
