PE-260 - Echo Edger (SN: 06001001 - 06999999) Handles, Throttle Cable Parts Diagram

Edger

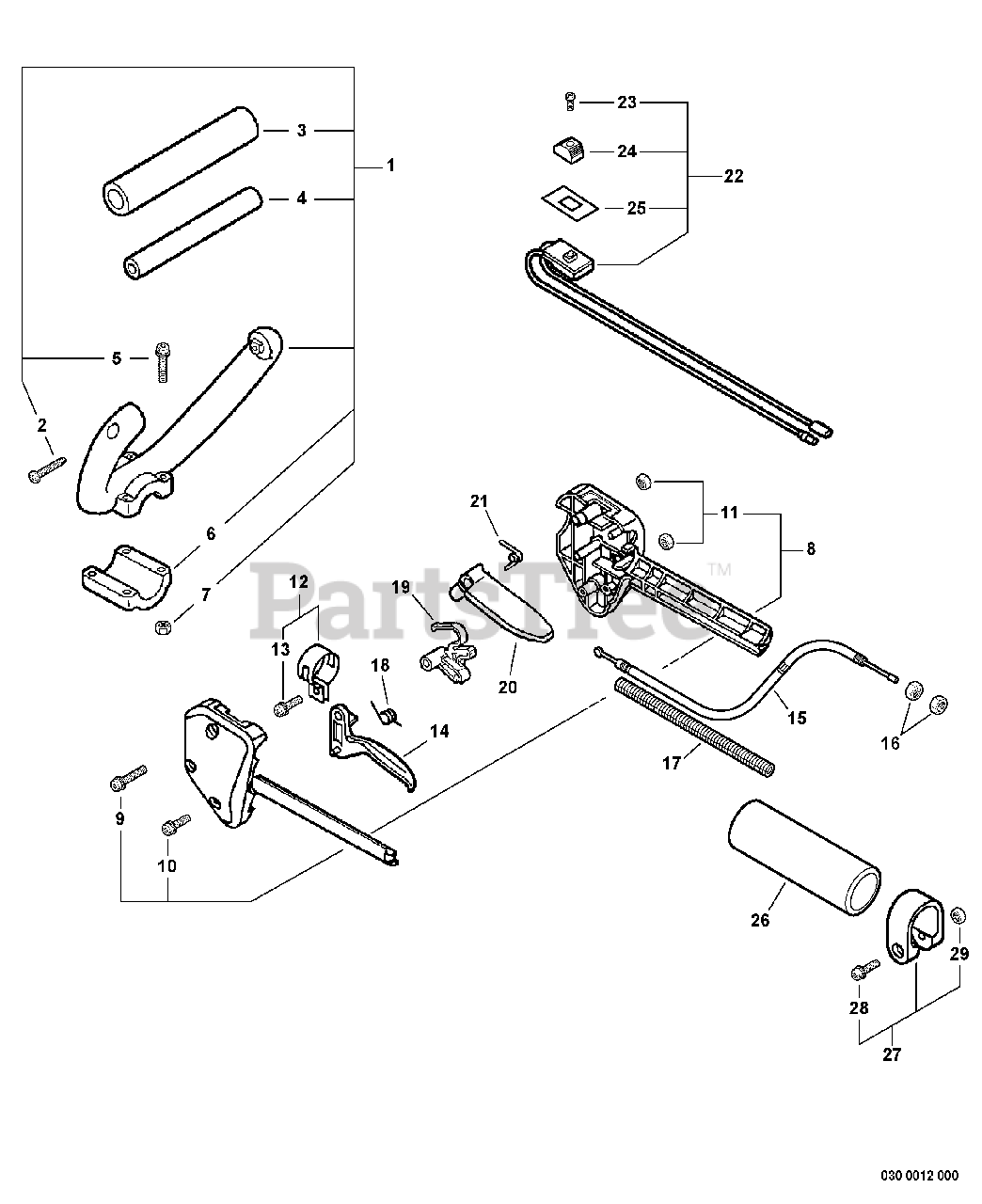

Handles, Throttle Cable Parts Diagram

  • Title

1

Echo 35120151730

LOOP HANDLE ASSY
(Superseded to P021012410)

Note: Includes ITEMS 2-7

$14.99

$

In Stock, only 2 left!

0

2

Echo 90024605030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

3

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

4

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

5

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

6

Echo 35122507130

BRACKET, HANDLE - LOWER
(Superseded to C423000300)

$1.99

$

In Stock, only 4 left!

0

7

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 17800352130

CONTROL HANDLE KIT

Note: INCLUDES ITEMS 9-11

$5.99

$

In Stock, only 3 left!

0

9

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

10

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

11

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 13

$11.99

$

In Stock, only 3 left!

0

13

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

14

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

15

Echo V430000140

CABLE, THROTTLE

$19.99

$

In Stock, only 2 left!

0

16

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

17

Echo V475000850

TUBE, PROTECTIVE - CORRUGATED

$1.49

$

In Stock, Qty 5

0

18

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

19

Echo 17801252730

LOCKOUT, THROTTLE

$5.99

$

In Stock, Qty 6

0

20

Echo 17809052632

LEVER, TRIGGER LOCKOUT

$3.99

$

In Stock, only 3 left!

0

21

Echo 17801352630

SPRING, LOCKOUT LEVER

$2.99

$

In Stock, Qty 17

0

22

Echo A440000280

IGNITION SWITCH ASSY

Note: Includes ITEMS 23-25

$14.99

$

In Stock, only 2 left!

0

23

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

24

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 20+

0

25

Echo 89015712330

COVER, SWITCH - STOP

$3.99

$

In Stock, only 2 left!

0

26

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 19

0

27

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 28-29

$11.99

$

In Stock, only 2 left!

0

28

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

29

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0
