PE-260 - Echo Edger (SN: S75712001001 - S75712999999) Handles, Throttle Cable Parts Diagram

Edger

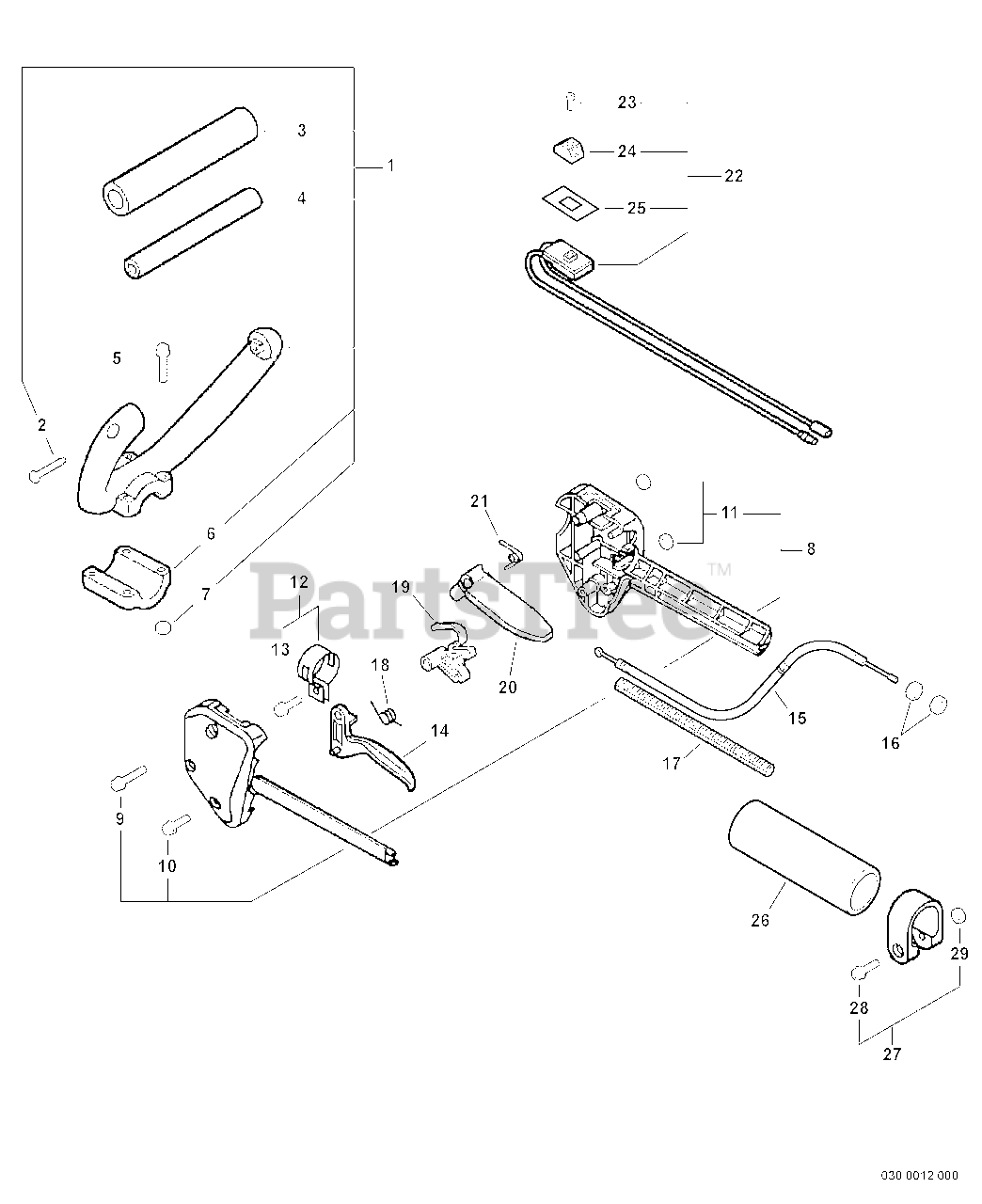

Handles, Throttle Cable Parts Diagram

  • Title

1

Echo 35120151730

LOOP HANDLE ASSY
(Superseded to P021012410)

Note: Includes ITEMS 2-7

$14.99

$

In Stock, only 2 left!

0

2

Echo 90024605030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

3

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

4

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

5

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

6

Echo 35122507130

BRACKET, HANDLE - LOWER
(Superseded to C423000300)

$1.99

$

In Stock, only 3 left!

0

7

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

8

Echo 17800352130

HANDLE KIT, CONTROL

Note: INCLUDES ITEMS 9-11

$5.99

$

In Stock, only 3 left!

0

9

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

10

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

11

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

12

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 13

$11.99

$

In Stock, only 2 left!

0

13

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

14

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

15

Echo V430000140

CABLE, THROTTLE

$19.99

$

In Stock, only 2 left!

0

16

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

17

Echo V475000850

TUBE, FLEXIBLE

$1.49

$

In Stock, only 3 left!

0

18

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

19

Echo 17801252730

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 4 left!

0

20

Echo 17809052632

LEVER, THROTTLE LOCKOUT

$3.99

$

In Stock, Qty 14

0

21

Echo 17801352630

SPRING, TORSION

$2.99

$

In Stock, Qty 9

0

22

Echo A440000280

SWITCH, ON-OFF

Note: Includes ITEMS 23-25

$14.99

$

In Stock, only 2 left!

0

23

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

24

Echo 16341049231

KNOB, SWITCH - ORANGE

$4.99

$

In Stock, Qty 19

0

25

Echo 89015712330

LABEL, SWITCH

$3.99

$

In Stock, only 1 left!

0

26

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

27

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 28-29

$11.99

$

In Stock, only 2 left!

0

28

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

29

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0
