PE-2601 - Echo Edger (Type 1E) Carburetor Parts Diagram

Model: PE‑2601 Length: 1740 mm (68.5 in) Width: 222 mm (8.75 in) Height: 280 mm (11.0 in) Weight: 6.1 kg (13.4 lb) – dry with cut‑off head Engine: air‑cooled, 2‑stroke, single‑cylinder gasoline Bore: 34.0 mm (1.34 in) Stroke: 28.0 mm (1.10 in) Displacement: 25.4 cc (1.55 cu in) Fuel/Oil: 50:1 (gasoline 89 octane, two‑stroke oil) Fuel tank capacity: 0.64 L (21.6 fl oz) Starter: automatic wind‑starter (clutch) Drive shaft: 6.35 mm flexible, clockwise view from right side Blade: length 203.2 mm (8.0 in); width 50.8 mm (2 in); thickness 2.3 mm (0.090 in) Blade speed: 2400–3000 rpm at wide‑open throttle Throttle speed: 9500–11000 rpm Ignition: transistor‑control (TCS) Spark plug: NGK BPM‑7Y, 0.65 mm (0.026 in) Emission control: EM (engine modification) – meets U.S. EPA PHI and 1995‑99 California ULGE regs.

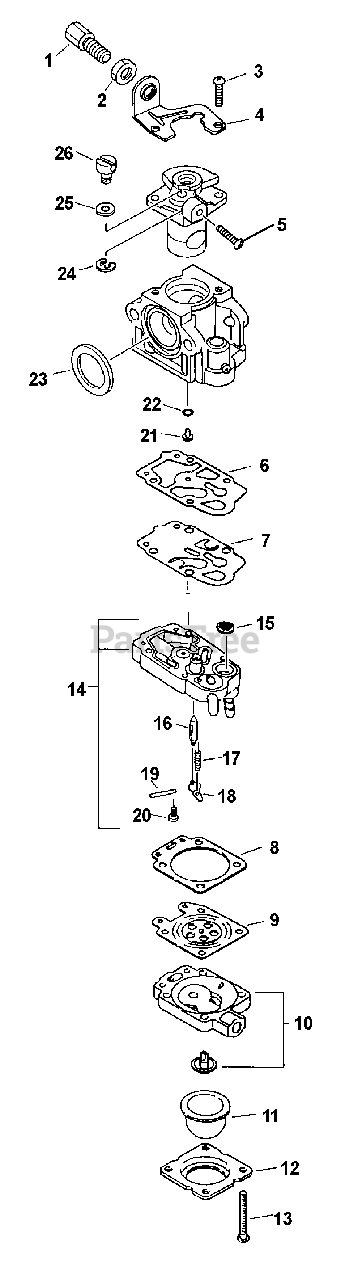

Carburetor Parts Diagram

  • Title

Echo 12300057730

CARBURETOR - WYJ-192
(Superseded to 12300057731)

Note: INCLUDES THE FOLLOWING ITEMS

$126.99

$

In Stock, only 1 left!

0

1

Echo 12316156431

ADJUSTER, THROTTLE CABLE

$8.49

$

In Stock, only 3 left!

0

2

Echo 12315356430

NUT, ADJUSTER LOCK M7

$1.99

$

In Stock, only 3 left!

0

3

Echo 12311440630

SCREW

$6.99

$

In Stock, only 2 left!

0

4

Echo 12312854230

BRACKET, THROTTLE CABLE

$6.49

$

Usually ships in 2-4 days

0

5

Echo 12313440030

SCREW

$1.49

$

Usually ships in 2-4 days

0

------------------

GASKET, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730

$

$

Not available

8

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730

$

$

Not available

9

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730

$

$

Not available

10

Echo 12318005560

BODY ASSY, PURGE

$8.99

$

In Stock, Qty 10

0

11

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

12

Echo 12314205560

RETAINER, PURGE BULB

$5.49

$

In Stock, Qty 8

0

13

Echo 12311005560

SCREW

$2.99

$

In Stock, Qty 20+

0

14

Echo 12317905560

BODY ASSY, PUMP

Note: Includes ITEMS 15-20

$20.99

$

In Stock, only 1 left!

0

15

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12310057730

$

$

Not available

16

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12310057730

$

$

Not available

17

Echo 12312205560

SPRING, METERING LEVER

$4.99

$

Usually ships in 2-4 days

0

18

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310057730

$

$

Not available

19

Echo 12313803930

PIN, METERING LEVER

$6.99

$

In Stock, only 3 left!

0

20

Echo 12313905560

SCREW

$0.99

$

Usually ships in 2-4 days

0

21

Echo 12318457730

JET, MAIN

$3.99

$

Usually ships in 2-4 days

0

22

Echo 12318305960

O-RING

$19.99

$

In Stock, only 2 left!

0

23

SEAL

Note: INCLUDED IN REPAIR KIT P/N 12310057730 & DIAPHRAGM/GASKET KIT P/N 12310157730

$

$

Not available

24

Echo 12317307930

E-RING

$1.49

$

Usually ships in 2-4 days

0

25

Echo 12314954230

WASHER

$0.99

$

Usually ships in 2-4 days

0

26

Echo 12317245130

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

Echo 12310057730

REPAIR KIT

$38.99

$

In Stock, only 4 left!

0

Echo 12310157730

DIAPHRAGM KIT

$15.99

$

In Stock, Qty 8

0
