PE-2601 - Echo Edger (Type 1E) Driveshaft, Handles, Throttle, Stop Switch Parts Diagram

Model: PE‑2601 Length: 1740 mm (68.5 in) Width: 222 mm (8.75 in) Height: 280 mm (11.0 in) Weight: 6.1 kg (13.4 lb) – dry with cut‑off head Engine: air‑cooled, 2‑stroke, single‑cylinder gasoline Bore: 34.0 mm (1.34 in) Stroke: 28.0 mm (1.10 in) Displacement: 25.4 cc (1.55 cu in) Fuel/Oil: 50:1 (gasoline 89 octane, two‑stroke oil) Fuel tank capacity: 0.64 L (21.6 fl oz) Starter: automatic wind‑starter (clutch) Drive shaft: 6.35 mm flexible, clockwise view from right side Blade: length 203.2 mm (8.0 in); width 50.8 mm (2 in); thickness 2.3 mm (0.090 in) Blade speed: 2400–3000 rpm at wide‑open throttle Throttle speed: 9500–11000 rpm Ignition: transistor‑control (TCS) Spark plug: NGK BPM‑7Y, 0.65 mm (0.026 in) Emission control: EM (engine modification) – meets U.S. EPA PHI and 1995‑99 California ULGE regs.

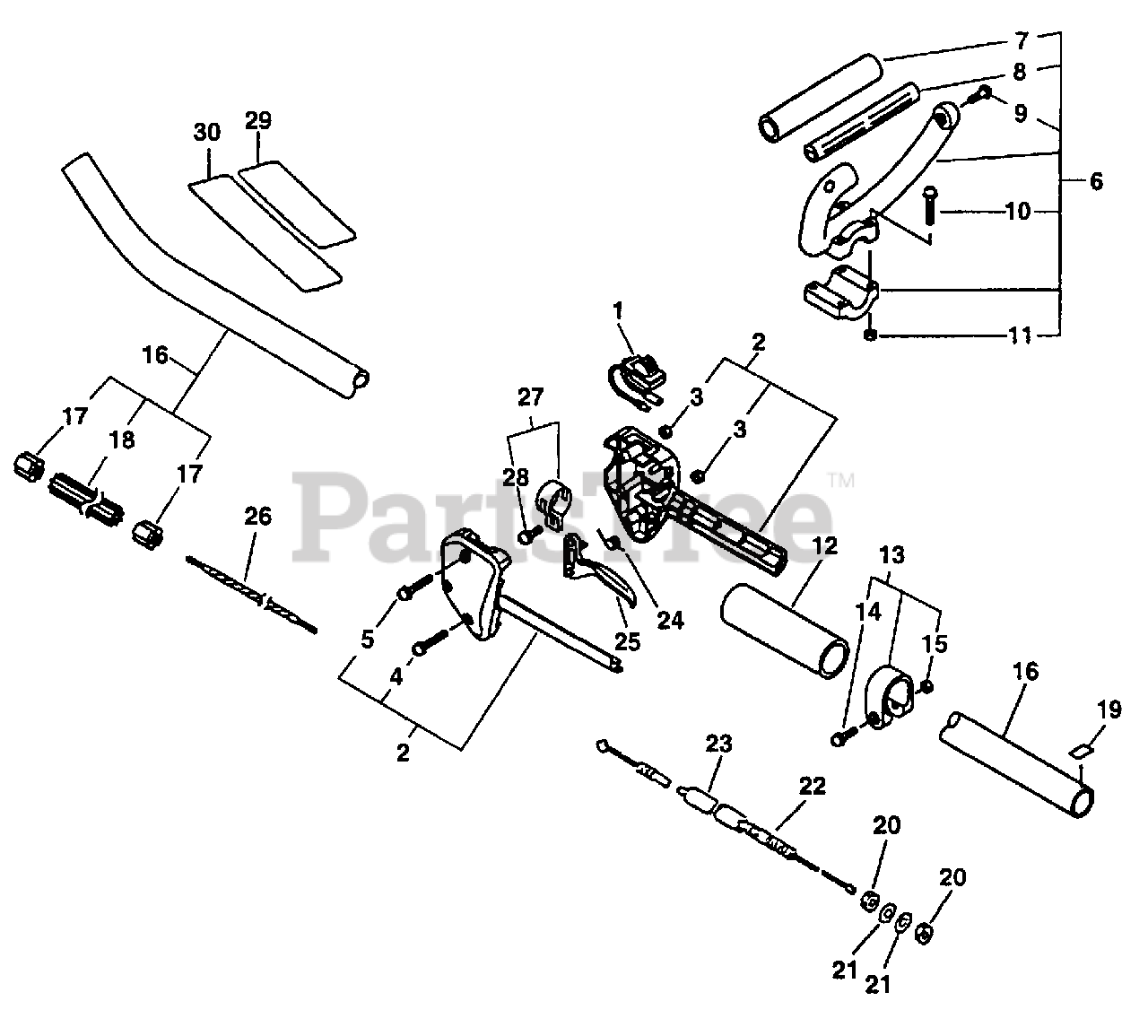

Driveshaft, Handles, Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 16340052430

IGNITION SWITCH ASSY
(Superseded to A440000290)

$15.99

$

Usually ships in 2-4 days

0

2

Echo 17800352130

HANDLE KIT, CONTROL

Note: INCLUDES ITEMS 3 - 5

$5.99

$

In Stock, Qty 16

0

3

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

4

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

5

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

6

Echo 35120151730

LOOP HANDLE ASSY
(Superseded to P021012410)

Note: INCLUDES ITEMS 7-11

$14.99

$

In Stock, Qty 5

0

7

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 4 left!

0

8

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

9

Echo 90024605030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

10

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

11

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

12

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 20+

0

13

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 14-15

$11.99

$

In Stock, only 4 left!

0

14

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

15

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

16

Echo 61020652630

MAIN PIPE ASSY

Note: Includes ITEMS 17-18

$47.99

$

In Stock, only 2 left!

0

17

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

18

Echo C507000260

LINER, FLEXIBLE 21.6×1420
(Superseded to C507000430)

$30.99

$

In Stock, Qty 20+

0

19

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

20

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

21

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

22

Echo 17800156530

CABLE, THROTTLE

$23.99

$

In Stock, Qty 14

0

23

Echo 17812706960

PIPE

$2.99

$

In Stock, only 2 left!

0

24

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

25

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

26

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, Qty 20+

0

27

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 28

$11.99

$

In Stock, Qty 7

0

28

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

29

Echo 89016025560

LABEL, CAUTION

$9.49

$

Usually ships in 2-4 days

0

30

Echo 89016052631

LABEL, CAUTION

$7.49

$

Usually ships in 2-4 days
