PE-2601 - Echo Edger (Type 1E) Ignition, Starter, Flywheel Parts Diagram

Edger (Type 1E)

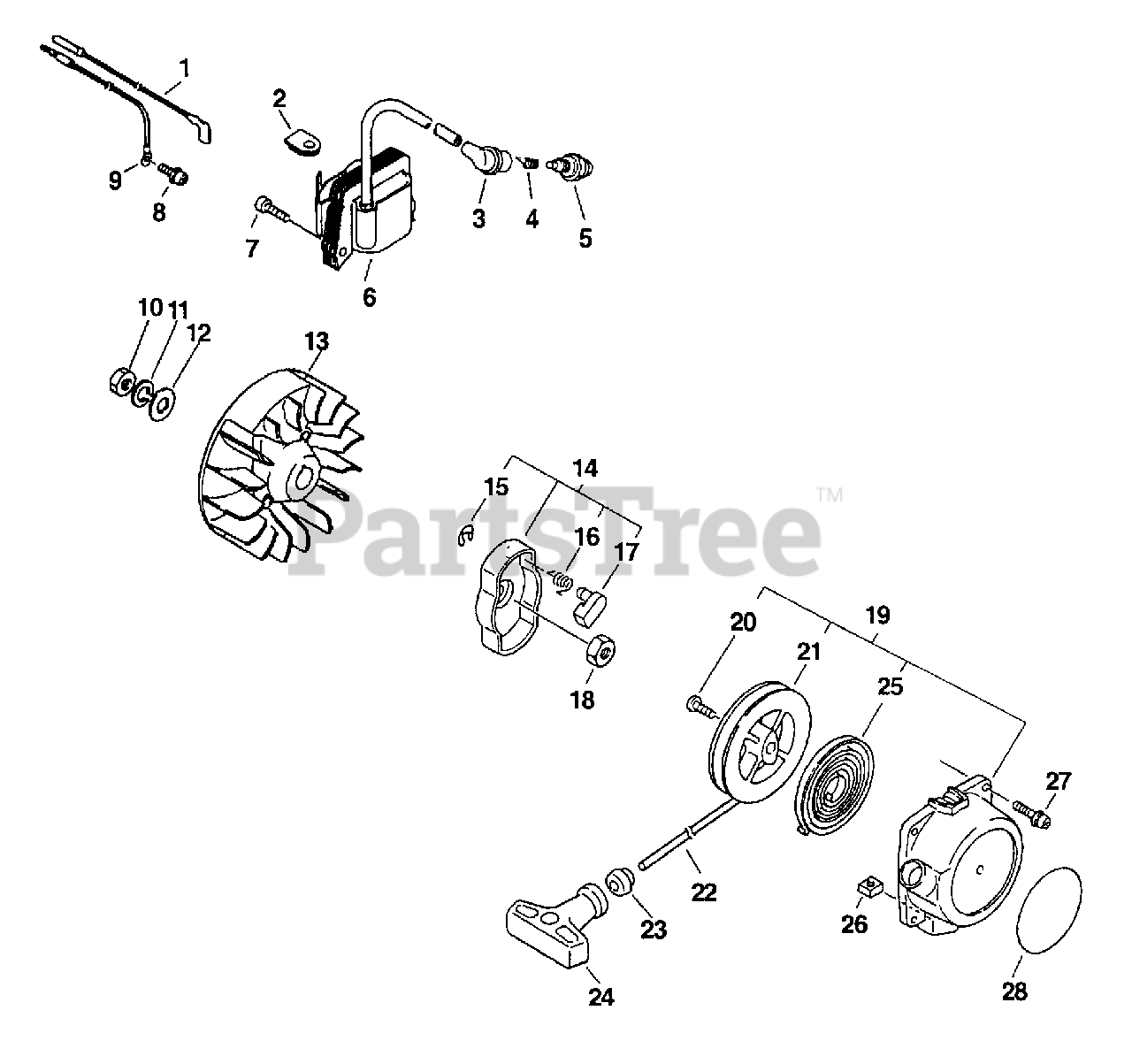

Ignition, Starter, Flywheel Parts Diagram

  • Title

1

Echo 16201056430

LEAD - IGNITION 145 MM

$7.99

$

In Stock, only 2 left!

0

2

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

3

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

4

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

5

Echo 99944500071

SPARK PLUG - BPM-7Y

$

$

Not available

5

Echo 15901010230

SPARK PLUG - BPMR7A

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

6

Echo 15262656032

COIL, IGNITION

$129.99

$

Usually ships in 2-4 days

0

7

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 5

0

8

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

9

Echo 16201452930

LEAD - GROUND

$5.99

$

In Stock, only 2 left!

0

10

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

11

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

12

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

Usually ships in 2-4 days

0

13

Echo 15280155930

FLYWHEEL

$135.99

$

Usually ships in 2-4 days

0

14

Echo A052000030

PAWL ASSY, STARTER

Note: Includes ITEMS 15-17

$15.99

$

In Stock, Qty 15

0

15

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

16

Echo 17723440630

SPRING, RETURN

$3.99

$

In Stock, only 2 left!

0

17

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 20+

0

18

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

19

Echo 17720055931

STARTER ASSY, RECOIL

Note: INCLUDES ITEMS 20-26

$48.99

$

Usually ships in 2-4 days

0

20

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

21

Echo 17721540630

REEL, ROPE

$11.99

$

In Stock, only 1 left!

0

ROPE, STARTER 3.5×950 MM

Note: RePower BULK OPTION: 99944445000

$

$

Not available

23

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

24

Echo 17722827030

GRIP, STARTER

$7.49

$

In Stock, only 3 left!

0

25

Echo 17722040630

SPRING, RECOIL

$15.99

$

In Stock, only 1 left!

0

26

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

27

Echo 90016204014

BOLT 4×14

$1.49

$

In Stock, Qty 18

0

28

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0
