PE-2601 - Echo Edger (Type 1E) Intake, Exhaust, Fuel System, Stand Parts Diagram

Edger (Type 1E)

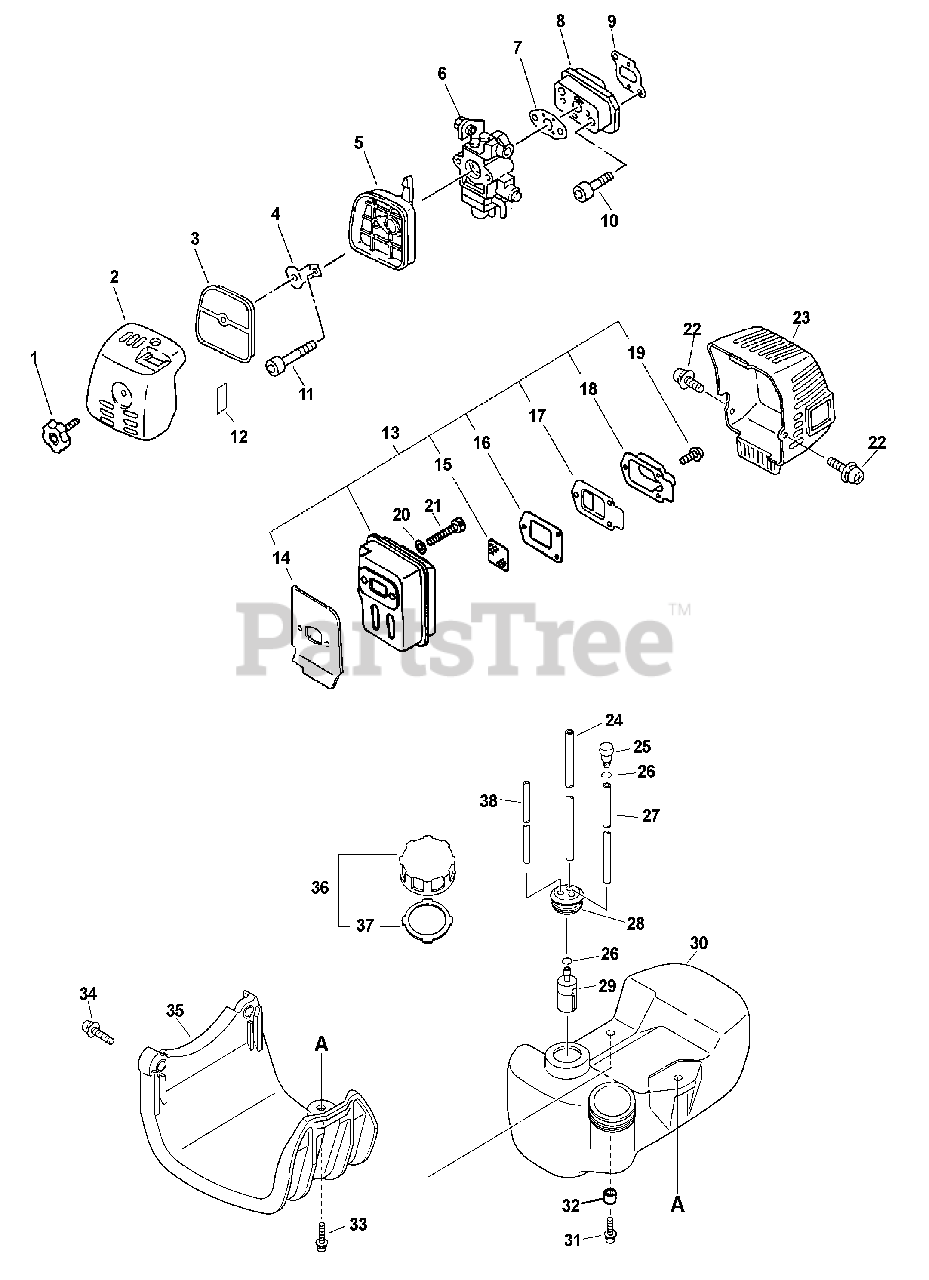

Intake, Exhaust, Fuel System, Stand Parts Diagram

  • Title

1

Echo 13040652131

THUMBSCREW

$5.99

$

In Stock, Qty 20+

0

2

Echo 13031357731

COVER, AIR FILTER
(Superseded to 13031357732)

$9.49

$

In Stock, Qty 20+

0

3

Echo 13031051830

FILTER, AIR - HEAVY DUTY

Note: USE KIT 90030

$7.99

$

In Stock, Qty 20+

0

4

Echo 12901157731

PLATE, PREVENT

$5.99

$

In Stock, only 3 left!

0

5

Echo 13030757730

CASE, AIR FILTER

$14.99

$

In Stock, Qty 13

0

6

Echo 12300057730

CARBURETOR WYJ-192
(Superseded to 12300057731)

$117.99

$

Usually ships in 2-4 days

0

7

Echo 13001013410

GASKET, INTAKE

Note: USE GASKET KIT 88900057730

$1.99

$

In Stock, Qty 6

0

8

Echo 13001756430

INSULATOR, INTAKE
(Superseded to 13001756431)

$14.99

$

In Stock, Qty 5

0

9

Echo 13001055930

GASKET, INTAKE

Note: USE GASKET KIT 88900057730

$1.99

$

In Stock, only 4 left!

0

10

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

11

Echo 90024205055

SCREW - 5X55

$0.99

$

In Stock, Qty 7

0

12

Echo 89012155230

LABEL - CHOKE
(Superseded to 89012152730)

$1.49

$

In Stock, Qty 14

0

13

Echo 14580057731

MUFFLER ASSY
(Superseded to 14580057732)

Note: Includes ITEMS 14-19

$73.99

$

Usually ships in 2-4 days

0

14

Echo 14551055931

SHIELD, EXHAUST
(Superseded to 14551055932)

$7.99

$

Usually ships in 2-4 days

0

15

Echo 14586240630

SCREEN, SPARK ARRESTOR

$2.49

$

In Stock, only 3 left!

0

16

Echo 14586642031

GASKET, EXHAUST

Note: USE GASKET KIT 88900057730

$2.99

$

In Stock, Qty 13

0

17

Echo 14587642030

GASKET, EXHAUST - INNER

$4.49

$

In Stock, only 3 left!

0

18

Echo 14581852130

GUIDE, EXHAUST - OUTER

$7.99

$

Usually ships in 2-4 days

0

19

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 16

0

20

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

21

Echo 90010505055

SCREW - 5X55

$1.99

$

In Stock, Qty 20+

0

22

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

23

Echo 14562157730

COVER, EXHAUST
(Superseded to 14562157731)

$30.99

$

In Stock, only 2 left!

0

24

Echo 13201052030

PIPE - 3X6X170 -- BLACK
(Superseded to 13201052031)

Note: RePower BULK OPTION: 90015

$2.99

$

In Stock, only 1 left!

0

25

Echo A356000031

VENT, FUEL TANK

Note: USE KIT 90010

$8.99

$

In Stock, Qty 20+

0

26

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

27

Echo 43721720760

PIPE - 3X6X100 -- BLACK
(Superseded to 43721720761)

Note: RePower BULK OPTION: 90015

$5.99

$

In Stock, only 2 left!

0

28

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

29

Echo 13120530830

FILTER, FUEL
(Superseded to 13120519830)

Note: USE KIT 90030

$9.49

$

In Stock, Qty 20+

0

30

Echo 13100556531

TANK, FUEL
(Superseded to 13100556532)

$24.99

$

In Stock, only 1 left!

0

31

Echo 90023905016

SCREW - 5X16
(Superseded to Discontinued)

$

$

Not available

32

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 7

0

33

Echo 90024405020

SCREW - 5X20

$1.49

$

In Stock, Qty 13

0

34

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

35

Echo 30511057733

GUARD, FUEL TANK

$16.99

$

In Stock, only 2 left!

0

36

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: Includes ITEM 37

$4.99

$

In Stock, Qty 12

0

37

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

38

Echo 43721520760

PIPE - 3X6X60 -- CLEAR

Note: RePower BULK OPTION: 90017

$2.49

$

In Stock, Qty 9

0

Echo 88900057730

GASKET KIT

$22.99

$

Usually ships in 2-4 days

0
