PE-2620 - Echo Edger (SN: T89715001001 - T89715999999) Gear Case Parts Diagram

Edger

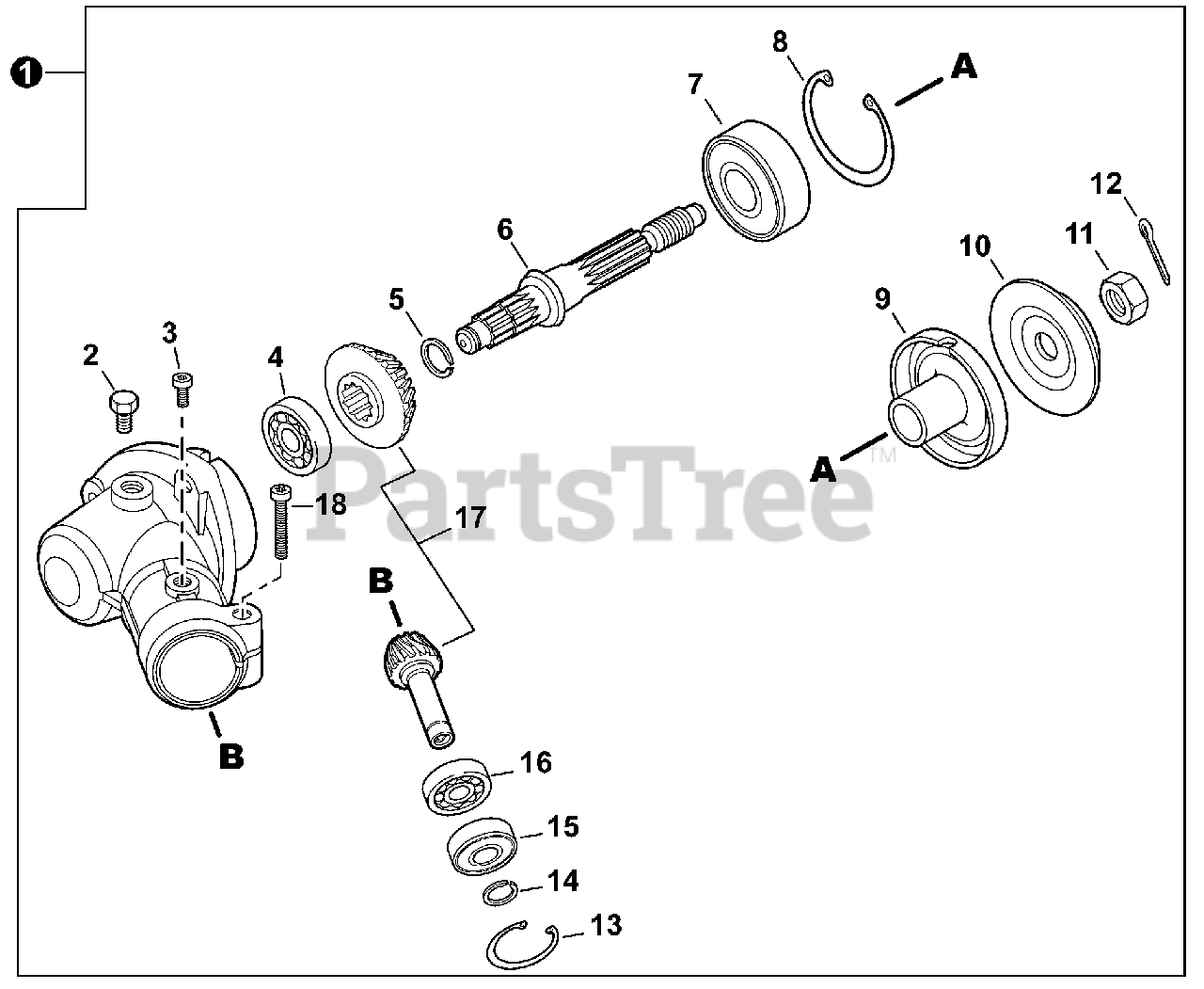

Gear Case Parts Diagram

  • Title

1

Echo P021051360

GEAR CASE ASSY
(Superseded to P021051361)

Note: Includes ITEMS 2-18

$103.99

$

In Stock, only 3 left!

0

2

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, only 1 left!

0

3

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

4

Echo 90081000629

BEARING, BALL 629

$15.99

$

In Stock, only 2 left!

0

5

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 10

0

6

Echo C534000220

SHAFT, GEAR

$60.99

$

Usually ships in 2-4 days

0

7

Echo 90081206302

BEARING, BALL 6302

$16.99

$

In Stock, Qty 8

0

8

Echo 90070200042

RING, SNAP Ø42

$1.99

$

In Stock, Qty 7

0

9

Echo C535000100

PLATE, ADAPTOR - UPPER

$22.99

$

In Stock, only 4 left!

0

10

Echo 61031404131

PLATE, ADAPTOR - LOWER
(Superseded to C535000150)

$9.49

$

In Stock, Qty 20+

0

11

Echo 90051300010

NUT 10×1.25 LH

$1.49

$

In Stock, Qty 20+

0

12

Echo 90030020022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 20+

0

13

Echo 90070200022

RING, SNAP Ø22

$1.99

$

In Stock, only 2 left!

0

14

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

15

Echo 90085806900

BEARING, BALL 6900-Z

$22.99

$

In Stock, Qty 8

0

16

Echo 90085506900

BEARING, BALL 6900

$18.99

$

In Stock, Qty 7

0

17

Echo V000000020

GEAR SET

$61.99

$

In Stock, only 3 left!

0

18

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0
