PE-2620 S - Echo Edger (SN: U15215001001 - U15215999999) Gear Case Parts Diagram

Edger

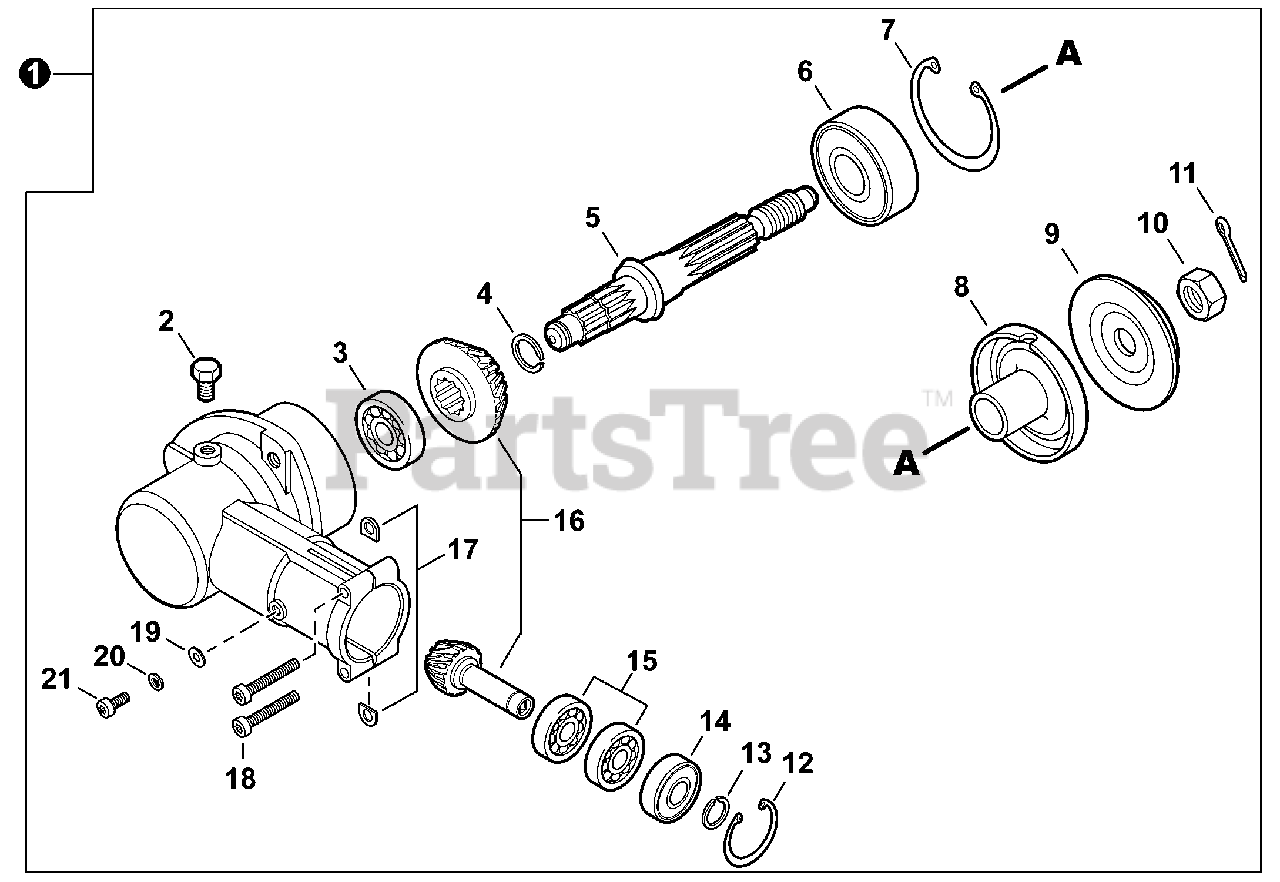

Gear Case Parts Diagram

  • Title

1

Echo P021049410

GEAR CASE ASSY

Note: Includes ITEMS 2-21

$145.99

$

In Stock, only 1 left!

0

2

Echo 610434-50031

BOLT M8×8

$1.99

$

In Stock, Qty 20+

0

3

Echo 90081000629

BEARING, BALL 629

$16.99

$

Usually ships in 2-4 days

0

4

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 9

0

5

Echo C534001050

SHAFT, GEAR

$62.99

$

Usually ships in 2-4 days

0

6

Echo 90081206302

BEARING, BALL 6302

$18.99

$

In Stock, Qty 9

0

7

Echo 90070200042

RING, SNAP Ø42

$1.99

$

In Stock, Qty 20+

0

8

Echo C535000100

PLATE, ADAPTOR - UPPER

$24.99

$

In Stock, Qty 6

0

9

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 20+

0

10

Echo 90051300010

NUT 10×1.25 LH

$1.49

$

In Stock, Qty 20+

0

11

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

12

Echo 90070200022

RING, SNAP Ø22

$2.49

$

In Stock, Qty 15

0

13

Echo 90070600010

RING, SNAP Ø10

$1.49

$

In Stock, Qty 20+

0

14

Echo 90085806900

BEARING, BALL 6900Z

$25.99

$

In Stock, only 3 left!

0

15

Echo 90085506900

BEARING, BALL 6900

$20.99

$

In Stock, only 2 left!

0

16

Echo P021046191

GEAR SET

$76.99

$

Usually ships in 2-4 days

0

17

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

18

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 18

0

19

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

20

Echo 900605-00005

WASHER, SPRING 5 MM

$0.99

$

In Stock, Qty 10

0

21

Echo V805000140

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0
