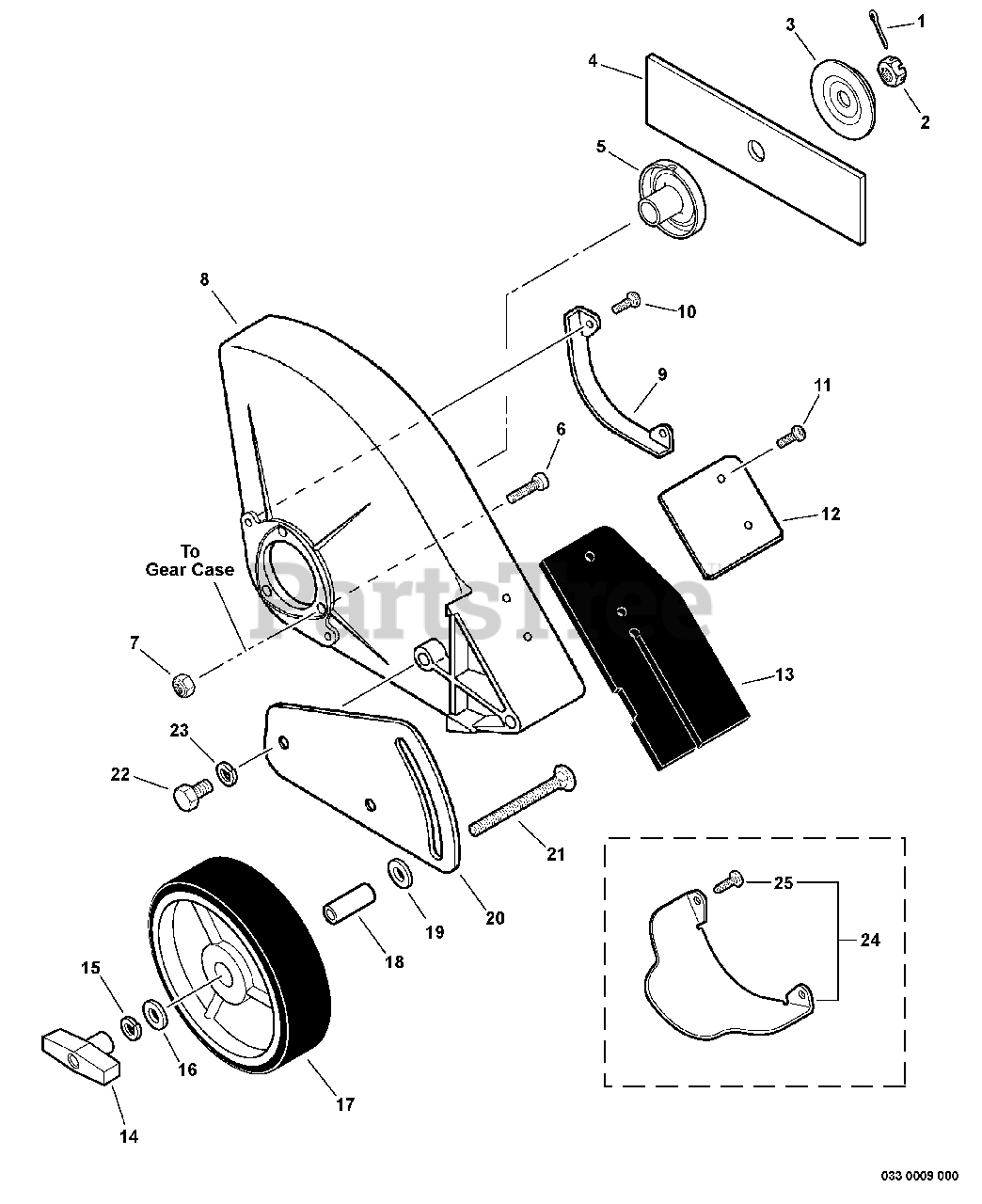

PE-265 S - Echo Edger (SN: S71412001001 - S71412999999) Edging Assembly -- Metal S/N: S71412003727 - S71412999999 Parts Diagram

Edger

Edging Assembly -- Metal S/N: S71412003727 - S71412999999 Parts Diagram

  • Title

1

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 19

0

2

Echo 90051300010

LOCKNUT - LEFT HAND

$1.99

$

In Stock, Qty 20+

0

3

Echo 61031404131

ADAPTOR, BLADE - LOWER
(Superseded to C535000150)

$10.99

$

In Stock, only 4 left!

0

4

Echo 69601552632

BLADE, EDGER

Note: Includes 2 PER PACKAGE

$11.99

$

In Stock, Qty 8

0

5

Echo C535000100

ADAPTOR, BLADE - UPPER

$26.99

$

In Stock, only 2 left!

0

6

Echo V805000160

SCREW - 5X20

$0.99

$

In Stock, Qty 20+

0

7

Echo 90056250005

LOCKNUT - 5

$1.49

$

In Stock, Qty 6

0

8

Echo C550000121

SHIELD, BLADE
(Superseded to C550000122)

$90.99

$

Usually ships in 2-4 days

0

9

Echo 69902552630

GUARD

$3.99

$

In Stock, Qty 14

0

10

Echo V804000000

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

11

Echo V804000000

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

12

Echo C552000101

PLATE, FLAP

$2.49

$

In Stock, Qty 5

0

13

Echo C550000110

FLAP, DEBRIS

$3.99

$

In Stock, only 4 left!

0

14

Echo 17811355330

WINGNUT - 5/16-18
(Superseded to V299000670)

$4.49

$

In Stock, Qty 20+

0

15

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

16

Echo 90060200008

WASHER - 8

$0.99

$

In Stock, Qty 20+

0

17

Echo C730000030

WHEEL - 6X1.5
(Superseded to C730000120)

$12.99

$

In Stock, Qty 13

0

18

Echo 30242452630

COLLAR - 12

$3.99

$

In Stock, Qty 20+

0

19

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

20

Echo C712000010

BRACKET, WHEEL

$

$

Currently unavailable

21

Echo 61025055330

BOLT - CARRIAGE

$2.49

$

In Stock, Qty 20+

0

22

Echo 90010008014

BOLT - 8X14

$0.99

$

In Stock, Qty 20+

0

23

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

24

Echo 900104

SHIELD GUARD KIT

Note: Includes ITEM 25

$11.99

$

In Stock, only 2 left!

0

25

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 10

0
