PE-280 - Echo Edger (SN: S63111001001 - S63111999999) Edging Assembly Parts Diagram

Edger

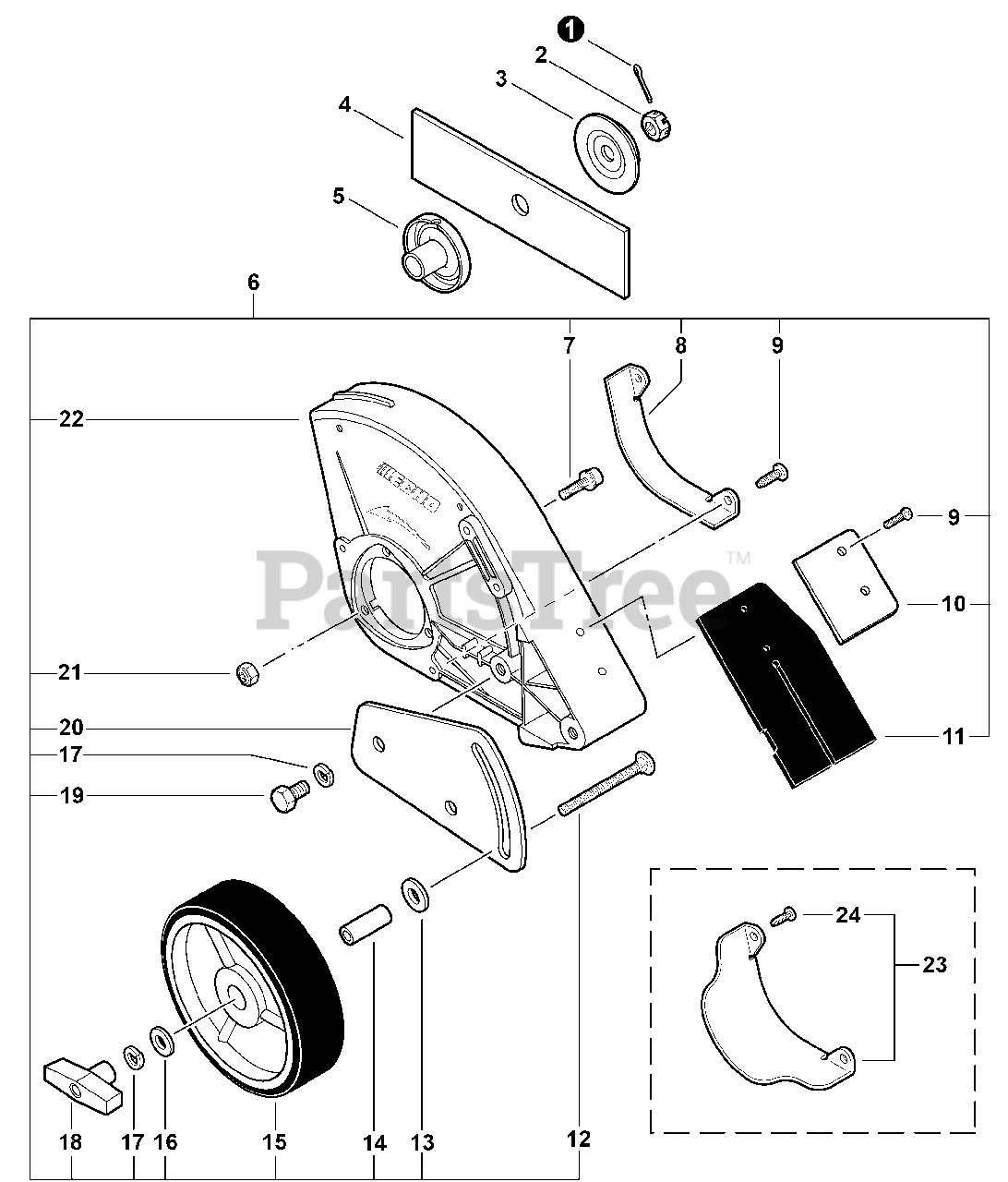

Edging Assembly Parts Diagram

  • Title

1

Echo 900300-20022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 14

0

2

Echo 90051300010

NUT 10×1.25 LH

$1.99

$

In Stock, Qty 20+

0

3

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

4

Echo 69601552632

BLADE - 2 PK

$11.99

$

In Stock, Qty 20+

0

5

Echo C535000100

PLATE, ADAPTOR - UPPER

$26.99

$

In Stock, only 2 left!

0

6

Echo P021011730

SHIELD KIT
(Superseded to P021011731)

Note: Inlcudes Items 6-22

$72.99

$

In Stock, only 2 left!

0

7

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

8

Echo 69902552630

GUARD, SHIELD

$3.99

$

In Stock, Qty 12

0

9

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, only 2 left!

0

10

Echo C552000101

PLATE, FLAP

$2.49

$

In Stock, Qty 5

0

11

Echo C550000110

FLAP, DEBRIS

$3.99

$

In Stock, only 4 left!

0

12

Echo 61025055330

BOLT 5/16"-18×2-1/2"

$2.49

$

In Stock, Qty 20+

0

13

Echo 90060200010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 16

0

14

Echo 30242452630

COLLAR 12

$3.99

$

In Stock, Qty 20+

0

15

Echo C730000030

WHEEL
(Superseded to C730000120)

$12.99

$

In Stock, Qty 5

0

16

Echo 900602-00008

WASHER 8

$0.99

$

In Stock, Qty 20+

0

17

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

18

Echo 17811355330

KNOB, FASTENER
(Superseded to V299000670)

$4.49

$

In Stock, Qty 20+

0

19

Echo 90010008014

BOLT 8×14

$0.99

$

In Stock, Qty 20+

0

20

Echo 30202955332

BRACKET, WHEEL

$9.49

$

In Stock, only 3 left!

0

21

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

22

Echo C550000121

SHIELD, BLADE
(Superseded to C550000122)

$90.99

$

Usually ships in 2-4 days

0

23

Echo 900104

GUARD KIT, SHIELD

Note: Inlcludes Item 24 OPTIONAL - REPLACES ITEMS 8-9

$11.99

$

In Stock, only 2 left!

0

24

Echo 90025304012

SCREW 4×12

$1.49

$

In Stock, only 2 left!

0
