PE-280 - Echo Edger (SN: T69814001001 - T69814999999) Gear Case Parts Diagram

Edger

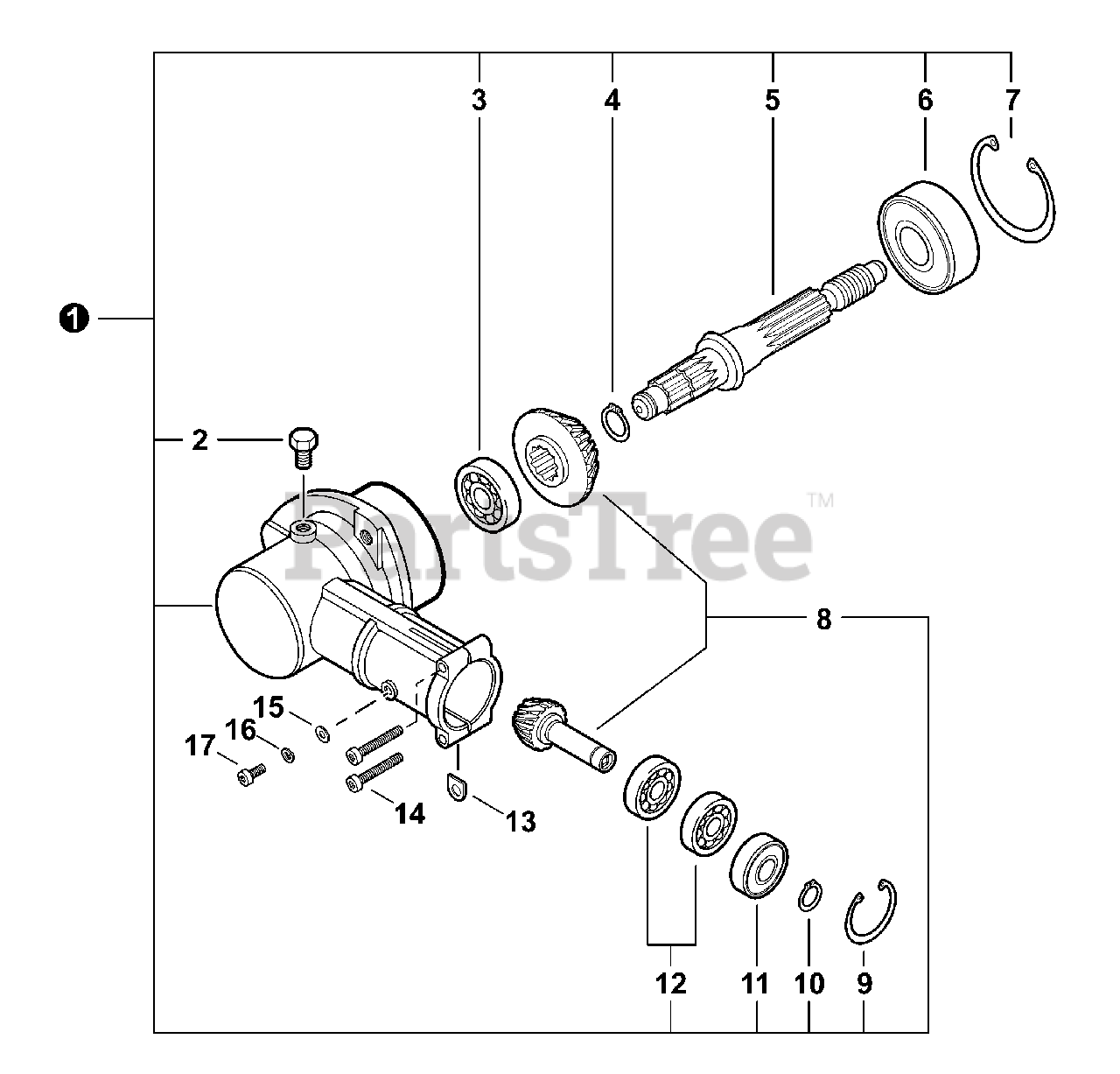

Gear Case Parts Diagram

  • Title

1

Echo C051000351

GEAR CASE ASY

Note: Includes Items 2-12

$101.99

$

Usually ships in 2-4 days

0

2

Echo 61043450031

BOLT - 8×8

$1.99

$

In Stock, only 1 left!

0

3

Echo 9406000629

BEARING, BALL - 629
(Superseded to 90081000629)

$15.99

$

In Stock, only 2 left!

0

4

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

5

Echo C534000510

GEAR, SHAFT
(Superseded to Discontinued)

$

$

Not available

6

Echo 90081206302

BEARING, BALL - 609

$16.99

$

In Stock, Qty 8

0

7

Echo 90070200042

RING, RETAINING - 42

$1.99

$

In Stock, Qty 7

0

8

Echo V000000070

GEAR SET

$61.99

$

Usually ships in 2-4 days

0

9

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, only 2 left!

0

10

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

11

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 8

0

12

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 7

0

13

Echo 61023904130

WASHER, SHIM

$0.99

$

In Stock, Qty 7

0

14

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

15

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

16

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 6

0

17

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0
