PE-310 - Echo Edger (SN: 03001001 - 03999999) Engine, Short Block -- SB1064 Parts Diagram

Edger

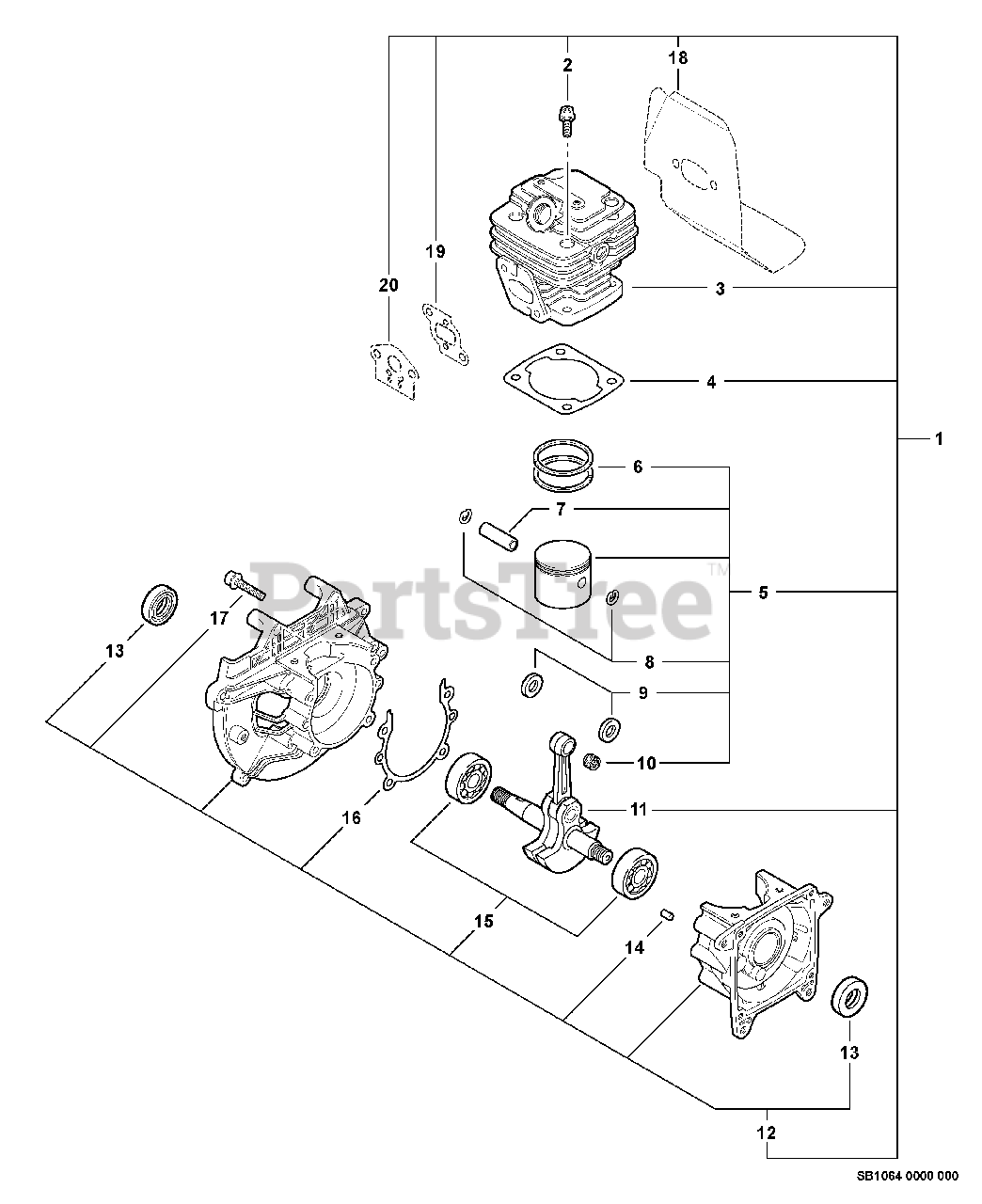

Engine, Short Block -- SB1064 Parts Diagram

  • Title

1

Echo SB1064

SHORT BLOCK -- SB1064

Note: INCLUDES ITEMS 2-20

$368.99

$

Usually ships in 2-4 days

0

2

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

3

Echo A130000260

CYLINDER
(Superseded to Discontinued)

$

$

Not available

4

Echo 10101055430

GASKET, CYLINDER

$3.49

$

Usually ships in 2-4 days

0

5

Echo P021003080

PISTON KIT
(Superseded to P021006802)

Note: Includes ITEMS 6-10

$114.99

$

In Stock, Qty 6

0

6

Echo 10001116131

RING, PISTON

$8.99

$

In Stock, Qty 5

0

7

Echo 10001327430

PIN, PISTON

$8.99

$

Usually ships in 2-4 days

0

8

Echo 10001503931

RING, RETAINING

$0.99

$

In Stock, Qty 13

0

9

Echo 10001453630

SPACER, PISTON

$6.99

$

Usually ships in 2-4 days

0

10

Echo 10001216131

BEARING, NEEDLE

$13.99

$

In Stock, only 2 left!

0

11

Echo 10010055430

CRANKSHAFT ASSY

$293.99

$

Usually ships in 2-4 days

0

12

Echo 10020455430

CRANKCASE KIT

Note: Includes ITEMS 13-17

$414.99

$

Usually ships in 2-4 days

0

13

Echo 10021305530

SEAL, OIL

$7.99

$

In Stock, Qty 16

0

14

Echo 10021503930

PIN - LOCATING
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 13

0

15

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

16

Echo 10024255430

GASKET, CRANKCASE
(Superseded to V102000040)

$4.99

$

Usually ships in 2-4 days

0

17

Echo 90016205030

SCREW - 5X30

$1.49

$

In Stock, Qty 6

0

18

------------------

SHIELD, EXHAUST

$

$

Not available

19

------------------

GASKET, INTAKE

$

$

Not available

20

------------------

GASKET, INTAKE

$

$

Not available
