PE-3100 - Echo Edger (Type 1E) Carburetor Parts Diagram

Edger (Type 1E)

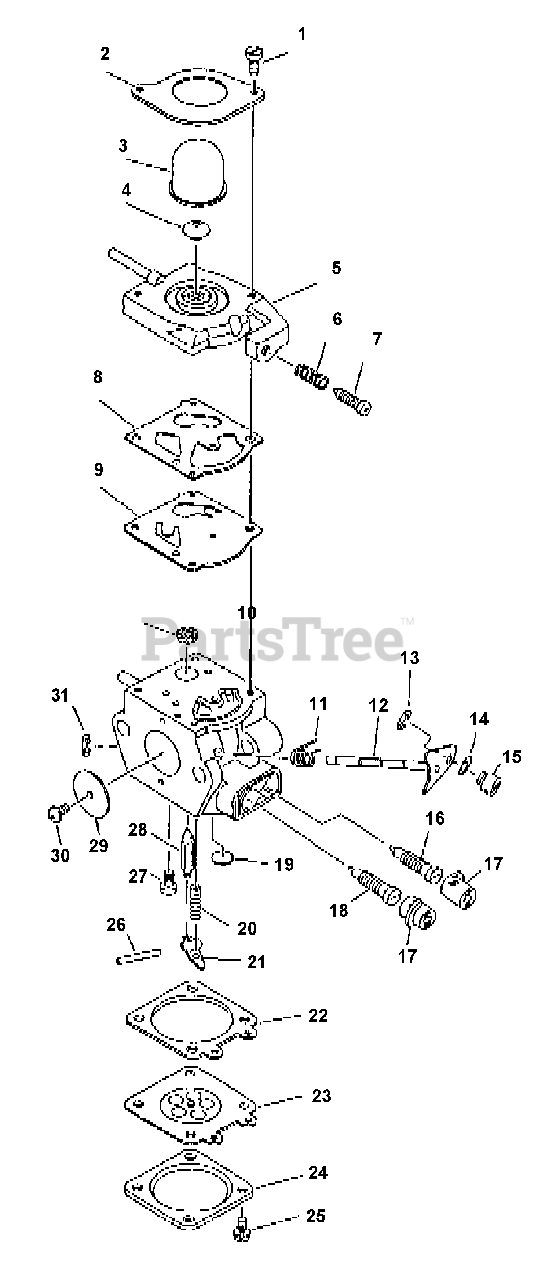

Carburetor Parts Diagram

  • Title

Echo 12300055831

CARBURETOR - WT-418A
(Superseded to 12300055832)

Note: INCLUDES THE FOLLOWING

$

$

Not available

1

Echo 12311043130

SCREW

$7.99

$

Usually ships in 2-4 days

0

2

Echo 12314209560

RETAINER, PURGE BULB

$8.49

$

In Stock, only 2 left!

0

3

Echo 12318109560

BULB, PURGE
(Superseded to A263000020)

$5.49

$

In Stock, Qty 13

0

4

Echo 12317135630

VALVE, CHECK

$4.99

$

In Stock, Qty 6

0

5

Echo 12312443230

COVER, FUEL PUMP

$9.99

$

In Stock, only 2 left!

0

6

Echo 12313304260

SPRING, IDLE ADJUST

$7.49

$

In Stock, only 1 left!

0

7

Echo 12313404260

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 1 left!

0

------------------

GASKET, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12310055830 AND DIAPHRAGM/GASKET KIT P/N 12310155730

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: INCLUDED IN REPAIR KIT P/N 12310055830 AND DIAPHRAGM/GASKET KIT P/N 12310155730

$

$

Not available

10

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12310055830

$

$

Not available

11

Echo 12311352130

SPRING, THROTTLE RETURN

$1.99

$

Usually ships in 2-4 days

0

12

Echo 12311755830

SHAFT, THROTTLE

$

$

Not available

13

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

14

Echo 12314926030

WASHER

$0.99

$

Usually ships in 2-4 days

0

15

Echo 12317226030

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

16

Echo 12312009460

NEEDLE, HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

17

Echo 12315139230

CAP, LIMITER

$1.99

$

In Stock, Qty 20+

0

18

Echo 12311803660

NEEDLE, IDLE
(Superseded to Discontinued)

$

$

Not available

19

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12310055830

$

$

Not available

20

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310055830

$

$

Not available

21

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310055830

$

$

Not available

22

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310055830 AND DIAPHRAGM/GASKET KIT P/N 12310155730

$

$

Not available

23

DIAPHRAGM, METERING

Note: INCLUDED IN REPAIR KIT P/N 12310055830 AND DIAPHRAGM/GASKET KIT P/N 12310155730

$

$

Not available

24

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 1 left!

0

25

SCREW

Note: INCLUDED IN REPAIR KIT P/N 12310055830

$

$

Not available

26

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12310055830

$

$

Not available

27

SCREW, METERING LEVER PIN

Note: INCLUDED IN REPAIR KIT P/N 12310055830

$

$

Not available

28

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12310055830

$

$

Not available

29

Echo 12311623230

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

30

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 8

0

31

Echo 12312715030

E-RING

$0.99

$

In Stock, Qty 5

0

Echo 12310055830

REPAIR KIT

$21.99

$

Usually ships in 2-4 days

0

Echo 12310155730

GASKET / DIAPHRAGM KIT

$11.99

$

Usually ships in 2-4 days

0
