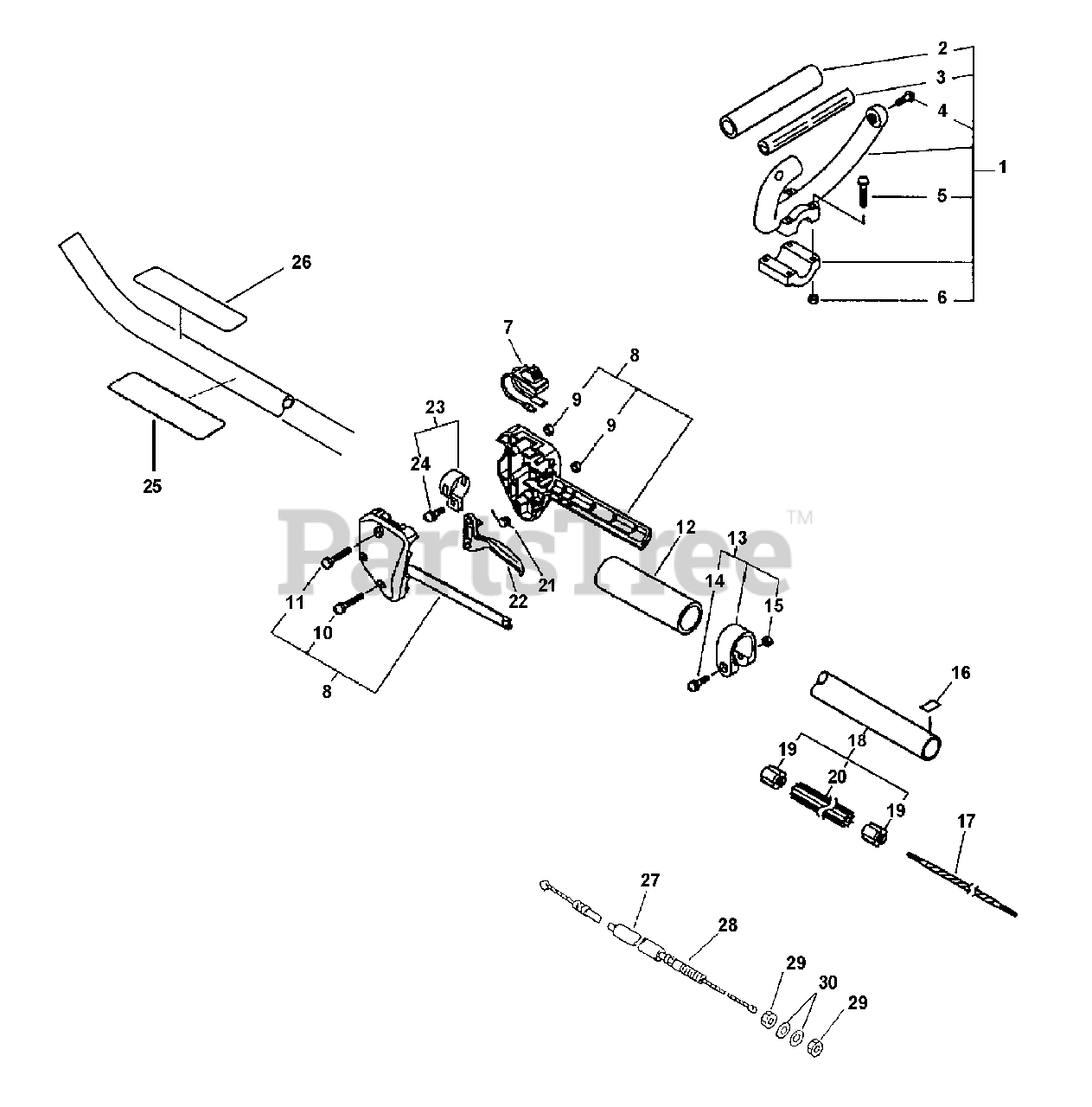

PE-3100 - Echo Edger (Type 1E) Driveshaft, Handles, Throttle, Stop Switch Parts Diagram

Edger (Type 1E)

Driveshaft, Handles, Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 35120152130

LOOP HANDLE ASSY

Note: INCLUDES ITEMS 2-6

$78.99

$

Usually ships in 2-4 days

0

2

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

3

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

4

Echo 90024605030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

5

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

6

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo A440000280

SWITCH, ON-OFF

$14.99

$

In Stock, only 2 left!

0

8

Echo 17800352130

HANDLE KIT, CONTROL

Note: INCLUDES ITEMS 9-11

$5.99

$

In Stock, only 3 left!

0

9

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

11

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

12

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

13

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 14-15

$11.99

$

In Stock, only 2 left!

0

14

Echo 90024205028

SCREW 5×28

$0.99

$

In Stock, Qty 6

0

15

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

16

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

17

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, only 3 left!

0

18

Echo 61020658830

MAIN PIPE ASSY

Note: INCLUDES ITEMS 19 & 20

$47.99

$

Usually ships in 2-4 days

0

19

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

20

Echo C507000260

LINER, FLEXIBLE 21.6×1420
(Superseded to C507000430)

$30.99

$

In Stock, Qty 7

0

21

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

22

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

23

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 24

$11.99

$

In Stock, only 2 left!

0

24

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

25

Echo 89016048030

LABEL, CAUTION

$1.49

$

Usually ships in 2-4 days

0

26

Echo 89022809560

LABEL, CAUTION

$0.99

$

In Stock, only 2 left!

0

27

Echo 17812751030

TUBE - VINYL

$0.99

$

Usually ships in 2-4 days

0

28

Echo 17800151030

CABLE, THROTTLE

$20.99

$

In Stock, only 2 left!

0

29

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

30

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0
