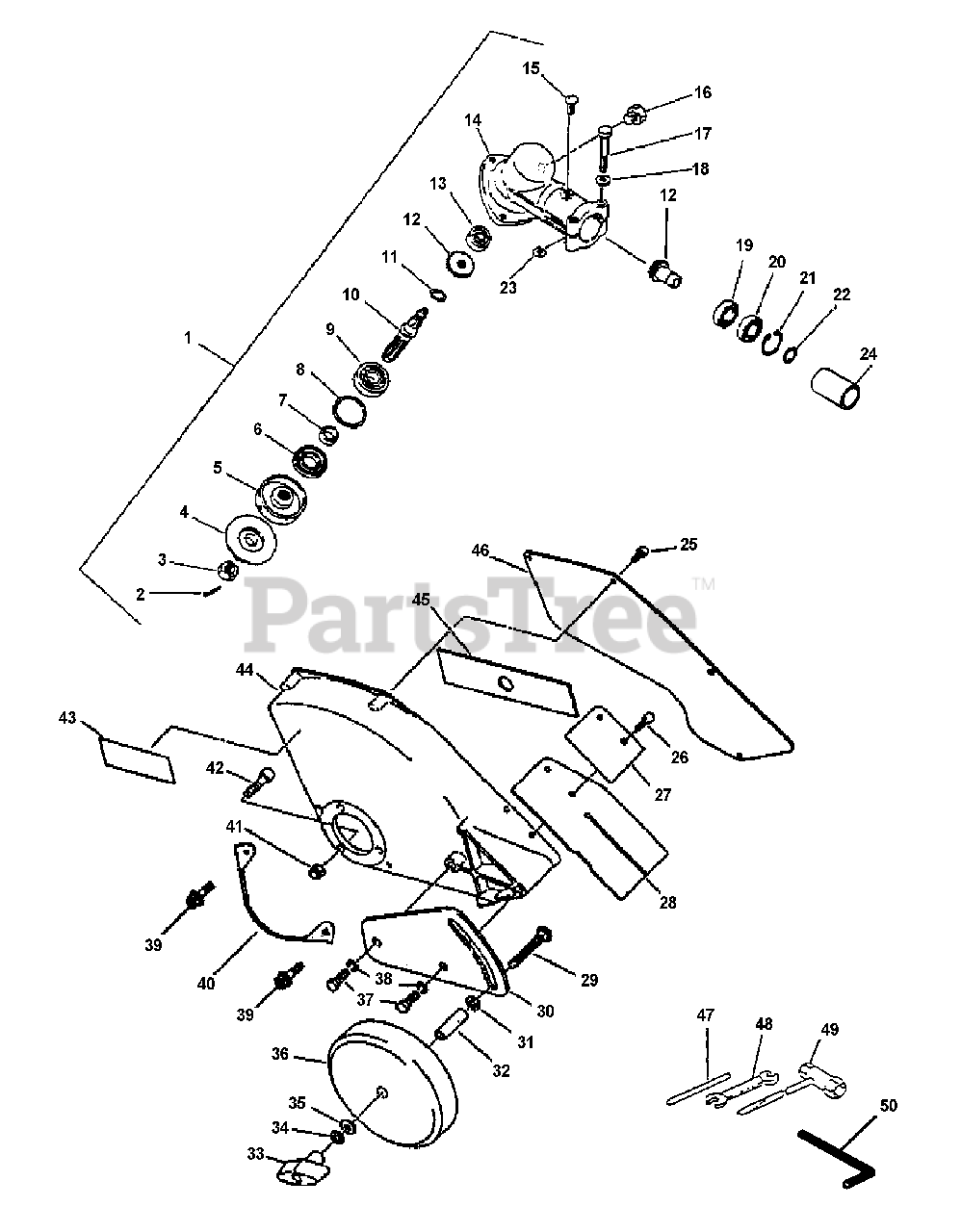

PE-3100 - Echo Edger (Type 1E) Gear Case, Shield, Blade, Tools Parts Diagram

Edger (Type 1E)

Gear Case, Shield, Blade, Tools Parts Diagram

  • Title

1

Echo 61040058830

GEAR CASE ASSY
(Superseded to 61040058831)

Note: INCLUDES ITEMS 2 - 23

$319.99

$

Usually ships in 2-4 days

0

2

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

3

Echo 90051300010

LOCKNUT - LEFT HAND

$1.49

$

In Stock, Qty 20+

0

4

Echo C535000150

ADAPTOR, BLADE - LOWER

$10.99

$

In Stock, Qty 20+

0

5

Echo 61031307130

ADAPTOR, BLADE - UPPER
(Superseded to 61031307132)

$19.99

$

In Stock, only 4 left!

0

6

Echo 61041307130

SEAL, OIL

$6.49

$

In Stock, only 2 left!

0

7

Echo 61031507130

SPACER

$4.49

$

In Stock, Qty 7

0

8

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 10

0

9

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 14

0

10

Echo 61031041030

GEAR - SHAFT

$101.99

$

In Stock, only 1 left!

0

11

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 9

0

12

Echo 61030058830

GEAR SET

$133.99

$

Usually ships in 2-4 days

0

13

Echo 90080036000

BEARING, BALL - 6000

$12.99

$

Usually ships in 2-4 days

0

14

Echo 61041007530

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

15

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

16

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 10

0

17

Echo 90010005040

BOLT - 5X40

$0.99

$

In Stock, only 4 left!

0

18

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

19

Echo 90080036001

BEARING, BALL - 6001C3

$10.99

$

In Stock, only 2 left!

0

20

Echo 90080796001

BEARING, BALL - 6001
(Superseded to 9405106001)

$6.99

$

In Stock, Qty 18

0

21

Echo 90070200028

RING, RETAINING - 28

$1.99

$

In Stock, Qty 20+

0

22

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 18

0

23

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 20+

0

24

Echo 61025958830

COLLAR

$22.99

$

Usually ships in 2-4 days

0

25

Echo 90016204012

SCREW - 4X12

$1.49

$

In Stock, Qty 20+

0

26

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 20+

0

27

Echo 69901355330

FLAP, DEBRIS

$3.99

$

Usually ships in 2-4 days

0

28

Echo 69901755330

FLAP, DEBRIS

$13.99

$

In Stock, Qty 8

0

29

Echo 61025055330

BOLT - CARRIAGE

$2.49

$

In Stock, Qty 20+

0

30

Echo 30202955330

BRACKET, WHEEL
(Superseded to 30202955331)

$8.49

$

In Stock, Qty 7

0

31

Echo 90060200010

WASHER - 10

$0.99

$

In Stock, Qty 20+

0

32

Echo 30242452630

COLLAR - 12

$3.99

$

In Stock, Qty 20+

0

33

Echo 17811355330

WINGNUT - 5/16-18
(Superseded to V299000670)

$3.99

$

In Stock, Qty 20+

0

34

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

35

Echo 90060200008

WASHER - 8

$0.99

$

In Stock, Qty 20+

0

36

Echo C730000030

WHEEL - 6X1.5
(Superseded to C730000120)

$11.99

$

In Stock, Qty 10

0

37

Echo 90010008014

BOLT - 8X14

$0.99

$

In Stock, Qty 20+

0

38

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

39

Echo 90016204012

SCREW - 4X12

$1.49

$

In Stock, Qty 20+

0

40

Echo 69902552630

GUARD

$3.49

$

In Stock, Qty 20+

0

41

Echo 90056250005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

42

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 18

0

43

Echo 89016052360

LABEL - CAUTION

$

$

Currently unavailable

44

Echo 69901055330

NEW BLADE SHIELD
(Superseded to P021007590)

$66.99

$

In Stock, Qty 5

0

45

Echo 69601552632

BLADE, EDGER

$10.99

$

In Stock, Qty 13

0

46

Echo 69901752630

COVER, SHIELD

$17.99

$

Usually ships in 2-4 days

0

47

Echo 89751801131

LOCKING TOOL

$1.49

$

Usually ships in 2-4 days

0

48

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 9

0

49

Echo X602000020

T-WRENCH - 17X19mm

$3.99

$

In Stock, Qty 6

0

50

Echo 89561203430

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 3 left!

0
