PE 3500 - Poulan Edger Driveshaft Parts Diagram

Edger

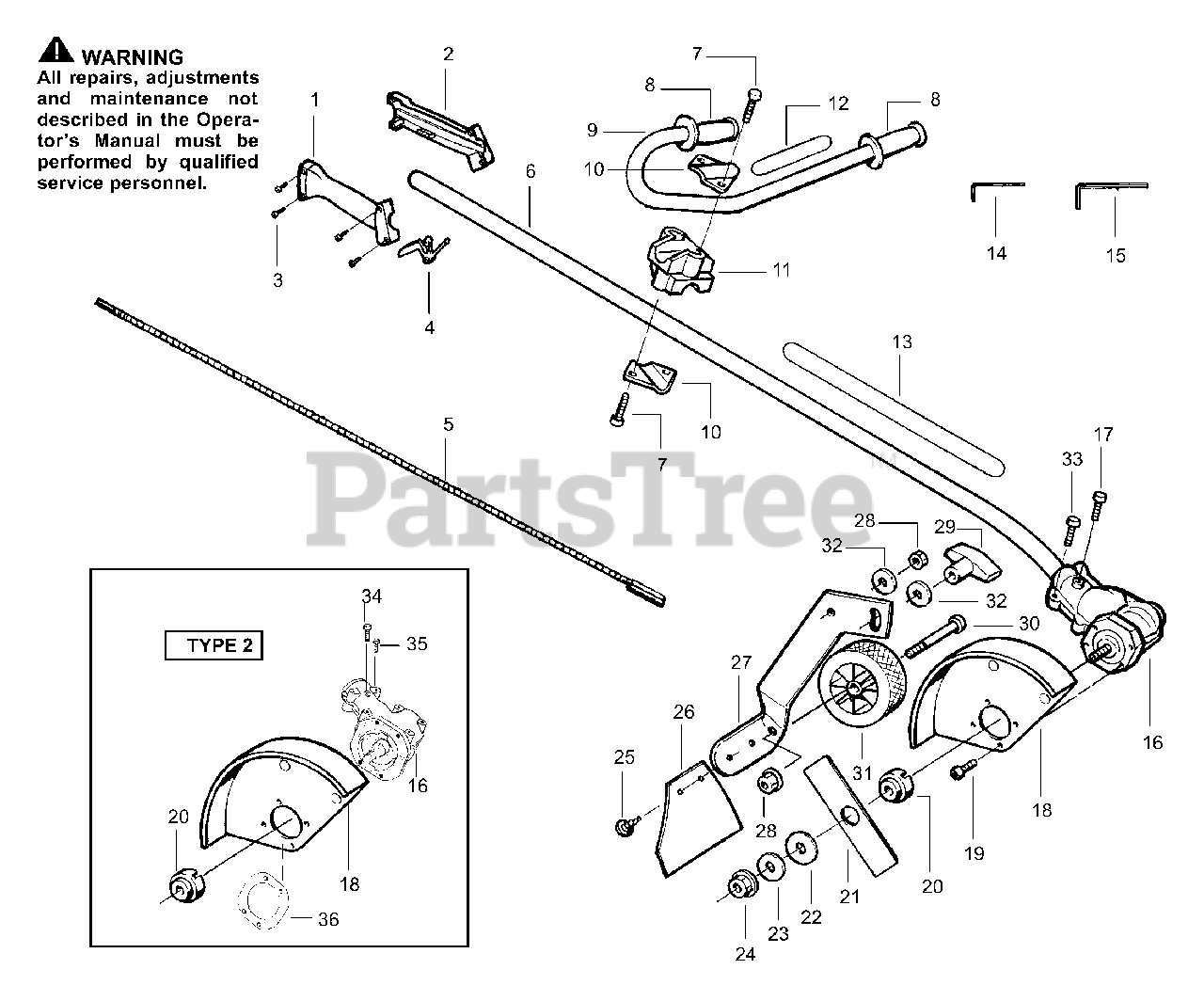

Driveshaft Parts Diagram

  • Title

1

Poulan 530036515

Throttle Hsg. Right

$3.99

$

Usually ships in 3-10 days

0

2

Poulan 530036514

Throttle Hsg. Left

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 530015957

Screw

$4.99

$

In Stock, Qty 7

0

4

Poulan 530036556

Lever-Throttle

$3.99

$

In Stock, only 3 left!

0

5

Poulan 530094585

Shaft-Flex

$

$

Not available

6

Poulan 530053438

Assy-Driveshaft

$25.99

$

Usually ships in 3-10 days

0

7

Poulan 530015791

Screw

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530092086

Fin Grip

$

$

Not available

9

Poulan 530069999

Assy-Handlebar

$13.99

$

Usually ships in 3-10 days

0

10

Poulan 530053659

Bracket-Handlebar

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 530012207

Clamp-Handlebar

$8.99

$

Usually ships in 3-10 days

0

12

Poulan 530027778

Decal-Handlebar

Note: Warning

$

$

Not available

13

Poulan 530053042

Decal-Shaft Warning

$

$

Not available

14

Poulan 530031159

Hex Wrench (5/32)

$4.99

$

In Stock, only 1 left!

0

15

Poulan 530031098

Hex Wrench (3/16)

$2.49

$

Usually ships in 3-10 days

0

16

Assy-Gearbox

$

$

Not available

16

Poulan 530053047

Type 1

$67.99

$

Usually ships in 3-10 days

0

16

Poulan 530071378

Type 2

$

$

Not available

17

Poulan 530016140

Screw

$2.49

$

Usually ships in 3-10 days

0

18

Guard

$

$

Not available

18

Poulan 530053008

Type 1

$14.99

$

Usually ships in 3-10 days

0

18

Poulan 530071501

Type 2
(Superseded to 530071930)

$21.99

$

Usually ships in 3-10 days

0

19

Poulan 530016312

Screw

$6.49

$

In Stock, Qty 6

0

20

Poulan 530071521

Kit-Dust Cup

$

$

Not available

21

Poulan 530053007

Blade

$4.99

$

In Stock, only 2 left!

0

22

Poulan 530015792

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

23

Poulan 530016240

Washer-Belleville

$6.49

$

In Stock, Qty 5

0

24

Poulan 530015793

Nut-Flange

$6.49

$

In Stock, Qty 11

0

25

Poulan 530053012

Fastener Mud Flap

$3.99

$

In Stock, only 1 left!

0

26

Poulan 530071251

Mud Flap Kit

Note: (Incls. #25)

$7.49

$

In Stock, only 1 left!

0

27

Poulan 530053009

Wheel Bracket

$12.99

$

Usually ships in 3-10 days

0

28

Poulan 530015515

Locknut

$4.99

$

In Stock, only 1 left!

0

29

Poulan 530092059

Knob

$9.99

$

In Stock, only 1 left!

0

30

Poulan 530015981

Bolt-Shoulder Axle

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530095125

Wheel (Front)

$8.99

$

In Stock, only 1 left!

0

32

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530015650

Screw

$

$

Not available

34

Poulan 530016301

Screw

$6.49

$

In Stock, only 4 left!

0

35

Poulan 530016309

Screw

$4.99

$

Usually ships in 3-10 days

0

36

Plate

Note: See "Service Reference"

$

$

Not available

36

Poulan 530087018

Type 1

Note: Not Shown; Operator Manual

$

$

Not available

36

Poulan 530086382

Type 2

Note: Not Shown; Operator Manual

$6.49

$

Usually ships in 3-10 days

0

Poulan 530053138

Decal Warning Guard
(Superseded to 545074501)

Note: Not Shown; Operator Manual

$

$

Not available
