PE 3500 - Poulan Edger Power Unit Parts Diagram

Edger

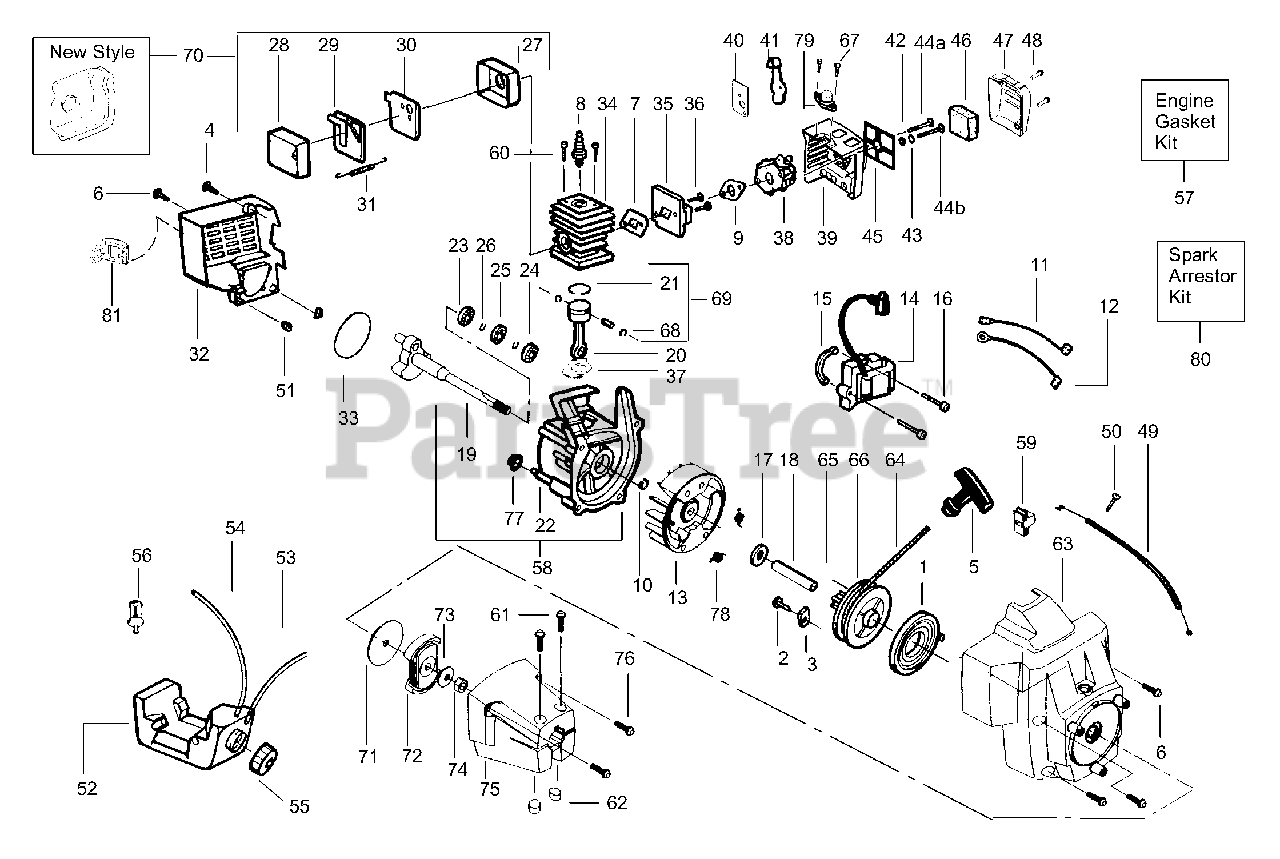

Power Unit Parts Diagram

  • Title

1

Poulan 530042085

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

2

Poulan 530015775

Screw

$3.49

$

In Stock, only 1 left!

0

3

Poulan 530027523

Retainer

$4.99

$

In Stock, only 1 left!

0

4

Poulan 530015934

Screw

$3.49

$

In Stock, only 1 left!

0

5

Poulan 530027569

Starter Handle

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 530015810

Screw
(Superseded to 530016386)

$4.99

$

In Stock, only 1 left!

0

7

Poulan 530019233

Gasket-Cyl/Carb Adapt

$

$

Not available

8

Poulan 952030201

Spark Plug
(Superseded to 952030150)

$3.99

$

In Stock, Qty 20+

0

9

Poulan 530035421

Gasket-Carb

$

$

Not available

10

Poulan 530015941

Retainer Ring (C'shaft)

$3.49

$

Usually ships in 3-10 days

0

11

Poulan 530014663

Lead Wire Ass'y.

$

$

Not available

12

Poulan 530014662

Ground Wire Ass'y.

$

$

Not available

13

Poulan 530069886

Flywheel Ass'y.
(Superseded to 545221701)

$31.99

$

In Stock, Qty 6

0

14

Ignition Module

Note: See "Service Reference"

$

$

Not available

14

Poulan 530052266

Service Ref. (C)

$

$

Not available

14

Poulan 530039163

Service Ref. (D)

$43.99

$

In Stock, only 1 left!

0

15

Poulan 530036145

Spacer-Ign. Module

$4.99

$

In Stock, only 3 left!

0

16

Poulan 530015954

Screw

$3.49

$

Usually ships in 3-10 days

0

17

Poulan 530015149

Washer

$3.49

$

In Stock, only 3 left!

0

18

Poulan 530037705

Spacer-Flywheel

$

$

Not available

19

Poulan 530052344

Crankshaft Ass'y.
(Superseded to 530071625)

$

$

Not available

20

Poulan 530069615

Connecting Rod Ass'y.

$

$

Not available

21

Piston Ring

Note: See "Service Reference"

$

$

Not available

21

Poulan 530053565

Service Ref. (C)
(Superseded to 545154009)

$4.99

$

In Stock, Qty 8

0

21

Poulan 530049903

Service Ref. (D)
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

22

Poulan 530012414

Crankcase Ass'y.
(Superseded to 530071627)

$

$

Not available

23

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$11.99

$

Usually ships in 3-10 days

0

24

Poulan 530032124

Outer Bearing

$

$

Not available

25

Poulan 530019179

C'case Seal

$5.99

$

Usually ships in 3-10 days

0

26

Poulan 530015945

Retaining Ring (C'case)

$

$

Not available

27

Poulan 530036578

Muffler Body

$

$

Not available

28

Poulan 530036577

Muffler Cover

$

$

Not available

29

Poulan 530053500

Muffler Baffle-Exit

$

$

Not available

30

Poulan 530053499

Muffler Baffle-First

$

$

Not available

31

Muffler Spring

$

$

Not available

31

Poulan 530016197

Old Style

$5.99

$

In Stock, Qty 5

0

31

Poulan 530042088

New Style

$

$

Not available

32

Shroud

Note: See "Service Reference"

$

$

Not available

32

Poulan 530053320

Service Ref. (C)

$

$

Not available

32

Poulan 530049233

Service Ref. (D)

$

$

Not available

33

O-Ring-C'case/Shroud

Note: See "Service Reference"

$

$

Not available

34

Cylinder Kit

Note: See "Service Reference"

$

$

Not available

34

Poulan 530069993

Service Ref. (C)
(Superseded to 530053445)

$

$

Not available

34

Poulan 530069757

Service Ref. (D)
(Superseded to 582144301)

$

$

Not available

35

Poulan 530071250

Carb. Adaptor Kit

$

$

Not available

36

Screw

Note: See "Service Reference"

$

$

Not available

36

Poulan 530016014

Service Ref. (C)

$3.49

$

In Stock, only 2 left!

0

36

Poulan 530015849

Service Ref. (D)

$3.49

$

Usually ships in 3-10 days

0

37

Poulan 530019223

Gasket-Cylinder

$4.99

$

In Stock, only 2 left!

0

38

Carburetor Ass'y.

Note: See "Service Reference"

$

$

Not available

38

Poulan 530069902

(WT380) Ser. Ref. (C)
(Superseded to 530071639)

$

$

Not available

38

Poulan 530069998

(WT380) Ser. Ref. (D)
(Superseded to 530071639)

$

$

Not available

39

Air Box

Note: See "Service Reference"

$

$

Not available

39

Poulan 530053323

Service Ref. (C)

$

$

Not available

39

Poulan 530037969

Service Ref. (D)

$

$

Not available

40

Poulan 530037326

Choke Mounting Plate

$

$

Not available

41

Poulan 530038102

Choke Shutter

$

$

Not available

42

Poulan 530015254

Washer

$

$

Not available

43

Poulan 530015852

Spacer-Choke

$

$

Not available

44A

Poulan 530015849

Screw-Carb Screw

$3.49

$

Usually ships in 3-10 days

0

44B

Poulan 530015887

Screw-Carb. Screw

$4.99

$

In Stock, only 2 left!

0

45

Poulan 530037413

Support Plate/Filter

$

$

Not available

46

Poulan 530037331

Air Filter Foam

$

$

Not available

47

Poulan 530037292

Cover-Air Box

$

$

Not available

48

Poulan 530015957

Screw

$3.49

$

In Stock, Qty 5

0

49

Poulan 530037415

Throttle Cable Ass'y.

$

$

Not available

50

Poulan 530015814

Screw

$3.49

$

In Stock, only 3 left!

0

51

Poulan 530036793

Isolator-Shroud

$

$

Not available

52

Poulan 530049413

Fuel Tank Ass'y.

$

$

Not available

53

Poulan 530069216

Fuel Line-Tank/Purge

$13.99

$

In Stock, Qty 20+

0

54

Poulan 530069247

Fuel Line-Carb/Purge

$2.49

$

In Stock, Qty 20+

0

55

Poulan 530014347

Fuel Cap Ass'y.

$9.49

$

In Stock, Qty 5

0

56

Poulan 530095646

Fuel Pickup Ass'y.

$6.99

$

In Stock, Qty 20+

0

57

Poulan 530071253

Engine Gasket Kit

Note: (Incl. 7, 9, 33 & 3

$

$

Not available

58

Poulan 530014906

C'case & C'shaft Assy.
(Superseded to 530071625)

Note: (Incl. 10,19,22-26)

$

$

Not available

59

Poulan 530069572

Switch Kit

$9.49

$

In Stock, only 2 left!

0

60

Poulan 530015953

Screw

$3.49

$

In Stock, Qty 7

0

61

Poulan 530015767

Screw

$3.49

$

In Stock, only 2 left!

0

62

Poulan 530015768

Locknut

$3.49

$

In Stock, Qty 12

0

63

Fan Housing Kit

Note: See "Service Reference"

$

$

Not available

63

Poulan 530053602

Service Ref. (C)

$

$

Not available

63

Poulan 530049857

Service Ref. (D)

$

$

Not available

64

Poulan 530069232

Rope Kit

$5.99

$

In Stock, only 2 left!

0

65

Poulan 530016080

Screw

$3.49

$

In Stock, only 4 left!

0

66

Poulan 530069400

Starter Pulley
(Superseded to 530071786)

$13.99

$

In Stock, only 4 left!

0

67

Poulan 530015780

Screw

$3.49

$

Usually ships in 3-10 days

0

68

Poulan 530015162

Piston Pin Retainer

$3.49

$

In Stock, only 2 left!

0

69

Piston Kit

Note: (Incl. 21,68 & Pin); See "Service Reference"

$

$

Not available

69

Poulan 530069992

Service Ref. (C)

$

$

Not available

69

Poulan 530069756

Service Ref. (D)
(Superseded to 530071785)

$45.99

$

Usually ships in 3-10 days

0

70

Muffler Kit

Note: (Incls. 27-31)

$

$

Not available

70

Poulan 530069989

Old Style

$

$

Not available

70

Poulan 530071390

New Style

$

$

Not available

71

Poulan 530015611

Washer-Clutch

$5.99

$

In Stock, Qty 20+

0

72

Poulan 530069491

Clutch Ass'y.

$

$

Not available

73

Poulan 530015828

Washer-Flat

$3.49

$

In Stock, only 1 left!

0

74

Poulan 530626605

Nut

$6.99

$

In Stock, only 1 left!

0

75

Clutch Hsg.

Note: See "Service Reference"

$

$

Not available

75

Poulan 530069997

Service Ref. (C)

$

$

Not available

75

Poulan 530014923

Service Ref. (D)

$

$

Not available

76

Poulan 530015886

Screw

$3.49

$

In Stock, Qty 17

0

77

Poulan 530036792

Isolator-Crankcase

$

$

Not available

78

Poulan 530023817

Spring-Starter Dog

$3.49

$

In Stock, only 1 left!

0

79

Poulan 530038874

Bulb Ass'y.

$

$

Not available

80

Spark Arrestor Kit

$

$

Not available

80

Poulan 530071290

Old Style

$

$

Not available

80

Poulan 530071391

New Style

$

$

Not available

81

Poulan 530054536

Guard-Muffler

$

$

Not available
