PE 550 - Weed Eater Edger Gas Edger Assembly Parts Diagram

Edger

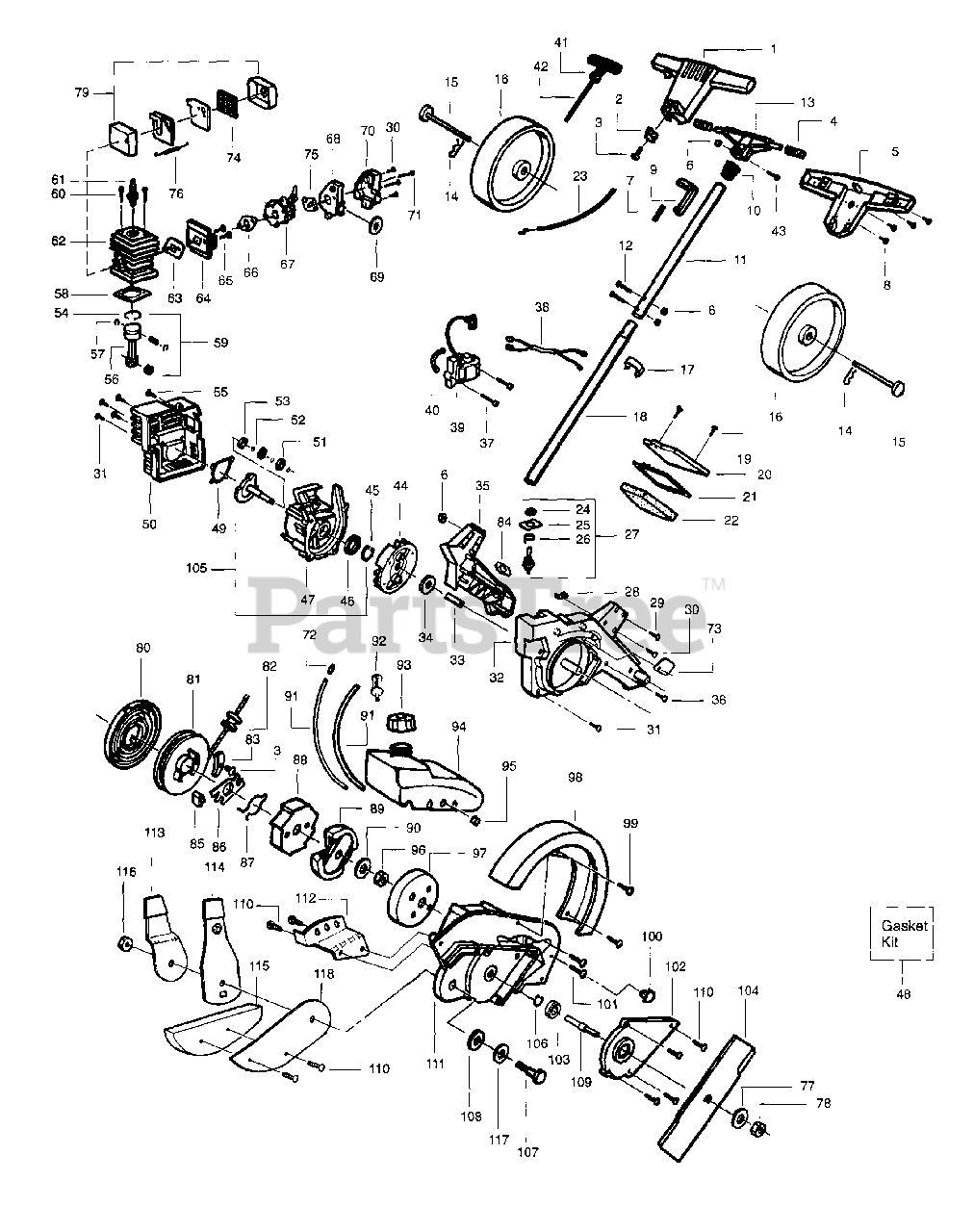

Gas Edger Assembly Parts Diagram

  • Title

1

Poulan 530036677

Upper Handle

$8.99

$

Usually ships in 3-10 days

0

2

Poulan 530036985

Handle Eyelet

$1.99

$

Usually ships in 3-10 days

0

3

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530036981

Spring Isolator

$1.99

$

Usually ships in 3-10 days

0

5

Poulan 530036676

Lower Handle

$6.99

$

Usually ships in 3-10 days

0

6

Poulan 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

7

Poulan 530036982

Throttle Spring

$1.99

$

Usually ships in 3-10 days

0

8

Poulan 503210719

Screw

$2.49

$

In Stock, only 1 left!

0

9

Poulan 530036673

Throttle Trigger

$

$

Not available

10

Poulan 530036984

Handle Spring

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 530095104

Upper Handle Tube

$15.99

$

Usually ships in 3-10 days

0

12

Poulan 530015999

Bolt - Shoulder Tube

$1.99

$

Usually ships in 3-10 days

0

13

Poulan 530036983

Coupling - Handle

$2.99

$

Usually ships in 3-10 days

0

14

Poulan 530016002

Pin Bridge

$

$

Not available

15

Poulan 530015997

Axle Pin

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 530095126

Rear Wheel

$

$

Not available

17

Poulan 530015982

Clamp - Cable

$

$

Not available

18

Poulan 530095103

Lower Handle Tube

$15.99

$

Usually ships in 3-10 days

0

19

Poulan 530015983

Screw

$1.99

$

Usually ships in 3-10 days

0

20

Poulan 530036631

Air Filter Cover

$3.99

$

In Stock, only 2 left!

0

21

Poulan 530036837

Gasket - Cover

$6.49

$

In Stock, only 1 left!

0

22

Poulan 530036664

Air Filter Foam

$

$

Not available

23

Poulan 530036674

Throttle Cable

$15.99

$

Usually ships in 3-10 days

0

24

Poulan 530016038

Boot w/Nut

$

$

Not available

25

Poulan 530038474

Switch Indicating Plate
(Superseded to 530053920)

$10.99

$

In Stock, only 2 left!

0

26

Poulan 530037066

Grounding Terminal

$1.99

$

Usually ships in 3-10 days

0

27

Poulan 530014707

Switch Grounding Assy

Note: (Incl. 24 - 26)

$

$

Not available

28

Poulan 530015922

Speed Nut

$6.49

$

In Stock, Qty 5

0

29

Poulan 530015774

Screw

$6.49

$

In Stock, only 3 left!

0

30

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

31

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

32

Poulan 530038299

Fan Housing

$

$

Not available

33

Poulan 530036927

Flywheel Spacer

$3.99

$

In Stock, Qty 9

0

34

Poulan 530015828

Washer - Flat

$4.99

$

In Stock, only 1 left!

0

35

Poulan 530038301

Axle Cover

$5.99

$

Usually ships in 3-10 days

0

36

Poulan 530015940

Screw

$6.49

$

In Stock, Qty 9

0

37

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

38

Poulan 530014655

Switch Wire Ass'y.

$7.49

$

Usually ships in 3-10 days

0

39

Poulan 530039146

Ignition Module

$

$

Not available

40

Poulan 530036145

Spacer - Ignition Module

$3.99

$

In Stock, only 3 left!

0

41

Poulan 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

42

Poulan 530069421

Rope Kit

$

$

Not available

43

Poulan 530015774

Screw

$6.49

$

In Stock, only 3 left!

0

44

Poulan 530039149

Flywheel Ass'y.
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

45

Poulan 530015945

Retaining Ring - C'case

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 530019179

Seal Crankcase

$7.49

$

Usually ships in 3-10 days

0

47

Poulan 530014861

Crankcase Ass'y.

Note: (Incl. 45, 46, 51 & 52)

$

$

Not available

48

Poulan 530069913

Gasket Kit

Note: (Incl. 21,49,58,63,66,& 75)

$8.99

$

In Stock, only 1 left!

0

49

Poulan 530019181

Gasket - Crankcase/Shroud

$6.49

$

In Stock, only 4 left!

0

50

Poulan 530036555

Shroud

$14.99

$

Usually ships in 3-10 days

0

51

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

52

Poulan 530015941

Retaining Ring - C'shaft

$4.99

$

Usually ships in 3-10 days

0

53

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

54

Poulan 530049903

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

55

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

56

Poulan 530069615

Connecting Rod Ass'y.

Note: (Incl. 53)

$24.99

$

Usually ships in 3-10 days

0

57

Poulan 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

58

Poulan 530019223

Gasket - Cylinder

$4.99

$

In Stock, Qty 6

0

59

Poulan 530069987

Piston Kit

Note: (Incl. 54)

$27.99

$

Usually ships in 3-10 days

0

60

Poulan 530015953

Screw

$6.49

$

In Stock, Qty 8

0

61

Poulan 952030201

Spark Plug (RCJ - 8Y)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

62

Poulan 530069909

Cylinder Kit
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

63

Poulan 530019243

Gasket - Cylinder/Garb Adaptor

$6.49

$

In Stock, Qty 6

0

64

Poulan 530052236

Carb. Adaptor
(Superseded to 530057618)

$

$

Not available

65

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

66

Poulan 530019194

Carb. Gasket

$6.49

$

In Stock, Qty 5

0

67

Poulan 530069654

Carburetor w/Choke (WT308)
(Superseded to 530071634)

$66.99

$

Usually ships in 3-10 days

0

68

Poulan 530036626

Air Box Base

$3.99

$

Usually ships in 3-10 days

0

69

Poulan 530019190

Foam Seal

$

$

Not available

70

Poulan 530036622

Airbox Cover

$3.99

$

Usually ships in 3-10 days

0

71

Poulan 530015887

Screw

$4.99

$

In Stock, only 2 left!

0

72

Poulan 530023877

Fuel Line Fitting

$4.99

$

In Stock, Qty 20+

0

73

Poulan 530038308

Fuel Line Retainer

$

$

Not available

74

Poulan 530036180

Muffler Screen

$

$

Not available

75

Poulan 530019144

Gasket - Bracket to Carb.

$3.99

$

In Stock, only 2 left!

0

76

Poulan 530016197

Muffler Spring

$4.99

$

In Stock, Qty 6

0

77

Poulan 530016281

Washer - Belleville

$4.99

$

In Stock, only 3 left!

0

78

Poulan 530016032

Nut

$

$

Not available

79

Poulan 530069989

Muffler Kit

Note: (Incl. 73 - 78)

$6.49

$

Usually ships in 3-10 days

0

80

Poulan 530037229

Starter Spring
(Superseded to 545008006)

$

$

Not available

81

Poulan 530069418

Starter Pulley Kit

Note: (Incl. 3, 83 & 85)

$12.99

$

In Stock, only 4 left!

0

82

Poulan 530037224

Eyelet

$1.99

$

In Stock, Qty 7

0

83

Poulan 530036679

Rope Retainer

$2.49

$

Usually ships in 3-10 days

0

84

Poulan 530019199

Gasket - Tube

$1.99

$

Usually ships in 3-10 days

0

85

Poulan 530049284

Starter Dog
(Superseded to 530054061)

$

$

Not available

86

Poulan 530042073

Starter Cam

$3.99

$

In Stock, Qty 9

0

87

Poulan 530042072

Starter Dog Wire

$3.99

$

Usually ships in 3-10 days

0

88

Poulan 530036922

Starter Cup

$4.99

$

Usually ships in 3-10 days

0

89

Poulan 530014832

Clutch Ass'y.

$

$

Not available

90

Poulan 530015127

Washer - Flywheel

$6.49

$

Usually ships in 3-10 days

0

91

Poulan 530069599

Fuel Line Kit

Note: (Incls. Vent Line)

$7.49

$

In Stock, Qty 20+

0

92

Poulan 530014815

Fuel Pick - up Ass'y.
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

93

Poulan 530014347

Fuel Cap Ass'y.

$8.99

$

In Stock, Qty 5

0

94

Poulan 530047878

Fuel Tank Ass'y.
(Superseded to 580236101)

$

$

Not available

95

Poulan 530036792

Isolator - Crankcase (Fuel Tank)

$7.49

$

Usually ships in 3-10 days

0

96

Poulan 530626605

Nut

$3.99

$

Usually ships in 3-10 days

0

97

Poulan 530036665

Drum Clutch

$

$

Not available

98

Poulan 530095082

Front Shield

$

$

Not available

99

Poulan 530015843

Screw

$6.49

$

In Stock, only 2 left!

0

100

Poulan 530036935

Dustplug

$

$

Not available

101

Poulan 530015770

Screw

$

$

Not available

102

Poulan 530036934

Bearing Holder Ass'y.

$60.99

$

Usually ships in 3-10 days

0

103

Poulan 530016042

Washer - Thrust

$4.99

$

Usually ships in 3-10 days

0

104

Poulan 530095086

Blade

$6.49

$

Usually ships in 3-10 days

0

105

Poulan 530014906

C'case & C'shaft Ass'y.
(Superseded to 530071625)

Note: (Incl. 45 - 48, & 51 - 53)

$54.99

$

Usually ships in 3-10 days

0

106

Poulan 530037625

Retainer Ring (Flat)

$0.99

$

Usually ships in 3-10 days

0

107

Poulan 530016275

Shoulder Bolt

$1.99

$

Usually ships in 3-10 days

0

108

Poulan 530016040

Washer - Bolt Adjust

$2.49

$

Usually ships in 3-10 days

0

109

Poulan 530095070

Shaft - Output

$24.99

$

In Stock, only 2 left!

0

110

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

111

Poulan 530053626

Gear Box Ass'y.

$109.99

$

In Stock, only 1 left!

0

112

Poulan 530053544

Back Plate

$2.99

$

Usually ships in 3-10 days

0

113

Poulan 530053502

Lever Limiter

$

$

Not available

114

Poulan 530053504

Lever Adjustment Ass'y.

$

$

Not available

115

Poulan 530095628

Foot

$

$

Not available

116

Poulan 530016063

Nut - Swing Arm

$1.99

$

Usually ships in 3-10 days

0

117

Poulan 530016280

Wave Washer

$1.99

$

Usually ships in 3-10 days

0

118

Poulan 530053501

Swing Arm

$4.99

$

Usually ships in 3-10 days

0

Poulan 530087320

Operator Manual

Note: Not Shown

$

$

Not available

Poulan 530036658

Blade Shield Decal (Not a serviceable part)

Note: Not Shown

$

$

Not available

Poulan 530031159

Hex Wrench 5/32

Note: Not Shown

$4.99

$

In Stock, only 1 left!
