Performance 26 V20 (CMGB233102) (31AN5C4FB93) - Craftsman 26" Snow Blower (2022) Handle Parts Diagram

26" Snow Blower

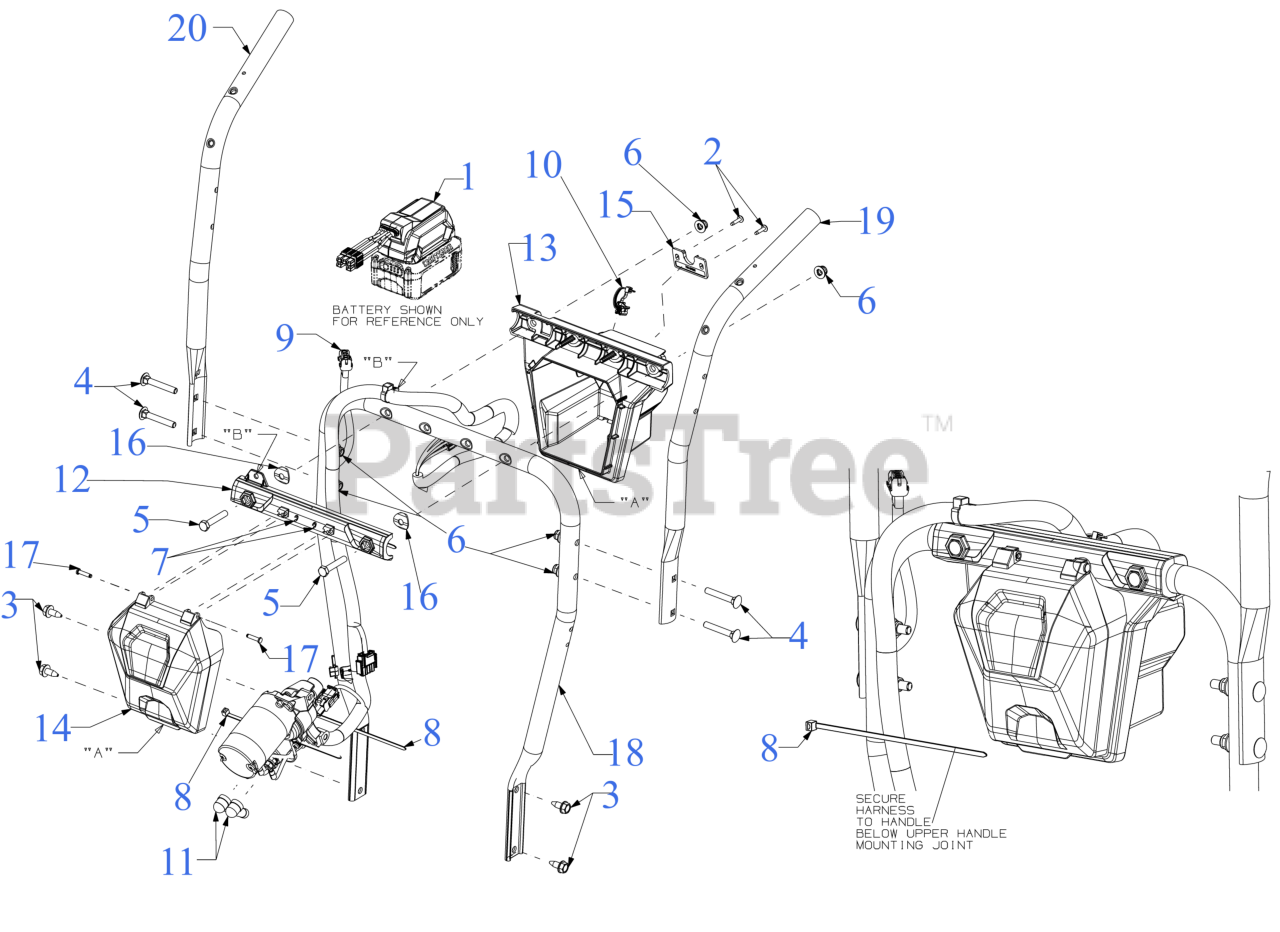

Handle Parts Diagram

  • Title

1

MTD 625P08994

BATTERY ADAPTER

$178.99

$

Usually ships in 3-6 days

0

2

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-04532

CARRIAGE BOLT 5/16-18 x 2.00 GR5

$6.99

$

In Stock, only 2 left!

0

5

MTD 710-3180

SCREW 5/16-18 x 1.75 GR5

$5.99

$

In Stock, Qty 20+

0

6

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

MTD 716-04036

E-RING

$6.49

$

In Stock, only 2 left!

0

8

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

9

MTD 725P18299

HARNESS (2S/ESTRT/LED)

$239.99

$

Usually ships in 3-6 days

0

10

MTD 729-08608

EDGE MOUNT ZIP TIE CLIP

$10.99

$

Usually ships in 3-6 days

0

11

MTD 729-08986

COVER BOOT

$2.49

$

Usually ships in 3-6 days

0

12

MTD 731P27074

BATTERY HOUSING COVER

$10.99

$

Usually ships in 3-6 days

0

13

MTD 731P27075

BATTERY HOUSING

$37.99

$

Usually ships in 3-6 days

0

14

MTD 731P27076

BATTERY DOOR HOUSING

$48.99

$

Usually ships in 3-6 days

0

15

MTD 731P27082

BATTERY BOX CLAMP

$4.49

$

Usually ships in 3-6 days

0

16

MTD 736-0451

SADDLE WASHER

$4.99

$

In Stock, Qty 8

0

17

MTD 738-04126

STEERING TRIGGER PIN 3/16

$4.49

$

In Stock, Qty 17

0

18

MTD 749-07594

LOWER HANDLE

Note: *CHOOSE COLOR WHEN ORDERING*

$39.99

$

Usually ships in 3-6 days

0

19

MTD 749-07874

UPPER HANDLE (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$40.99

$

Usually ships in 3-6 days

0

20

MTD 749-07875

UPPER HANDLE (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$40.99

$

Usually ships in 3-6 days

0

MTD 712-07094

HEX LOCK NUT M6-1 KEPS

Note: For Starter

$0.99

$

Usually ships in 3-6 days

0

MTD 712-07095

HEX LOCK NUT M5-0.8 KEPS

Note: For Starter

$0.99

$

Usually ships in 3-6 days

0
